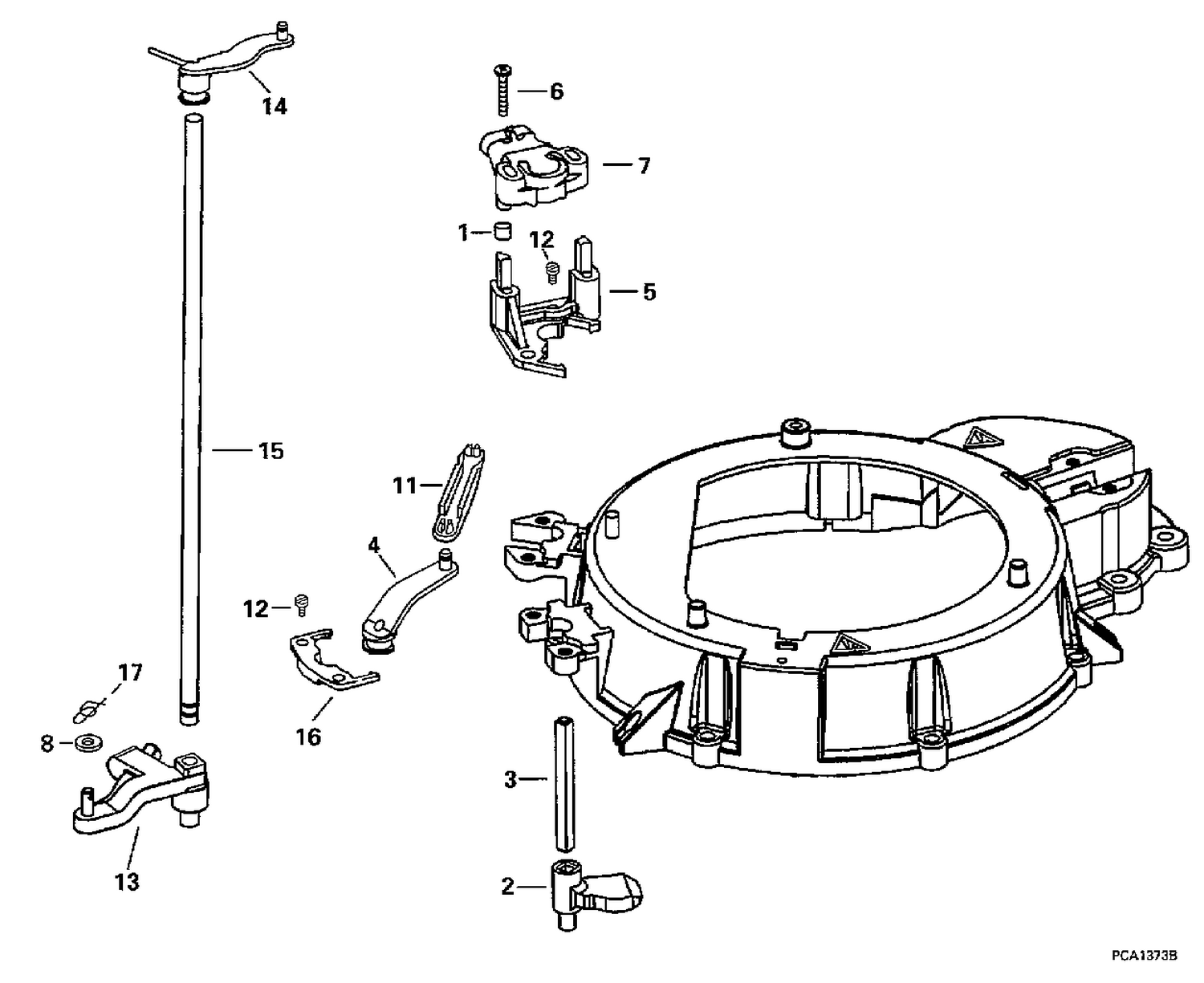

THROTTLE LINKAGE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0345063 | CAM, Throttle |
| 4 | 0343749 | LEVER, Throttle arm |
| 5 | 0343086 | RETAINER, Throttle sensor |
| 6 | 0343877 | SCREW, Throttle sensor |
| 7 | 5001793 | SENSOR, Throttle This part replaces 0439827. |
| 11 | 0335595 | LINK, Throttle |
| 13 | 5000549 | THROTTLE ARM & PIN This part replaces 0438250. |
| 14 | 0438255 | THROTTLE LEVER |
| 15 | 0335548 | SHAFT, Throttle arm |
| 16 | 0335717 | DISPOSITIF DE RETENUE, tringlerie vers capot |
| 0438252 | 0438252 | ARM & SHAFT ASSY. |
| 0439924 | 0439924 | THROTTLE CAM & ARM ASSY. |
