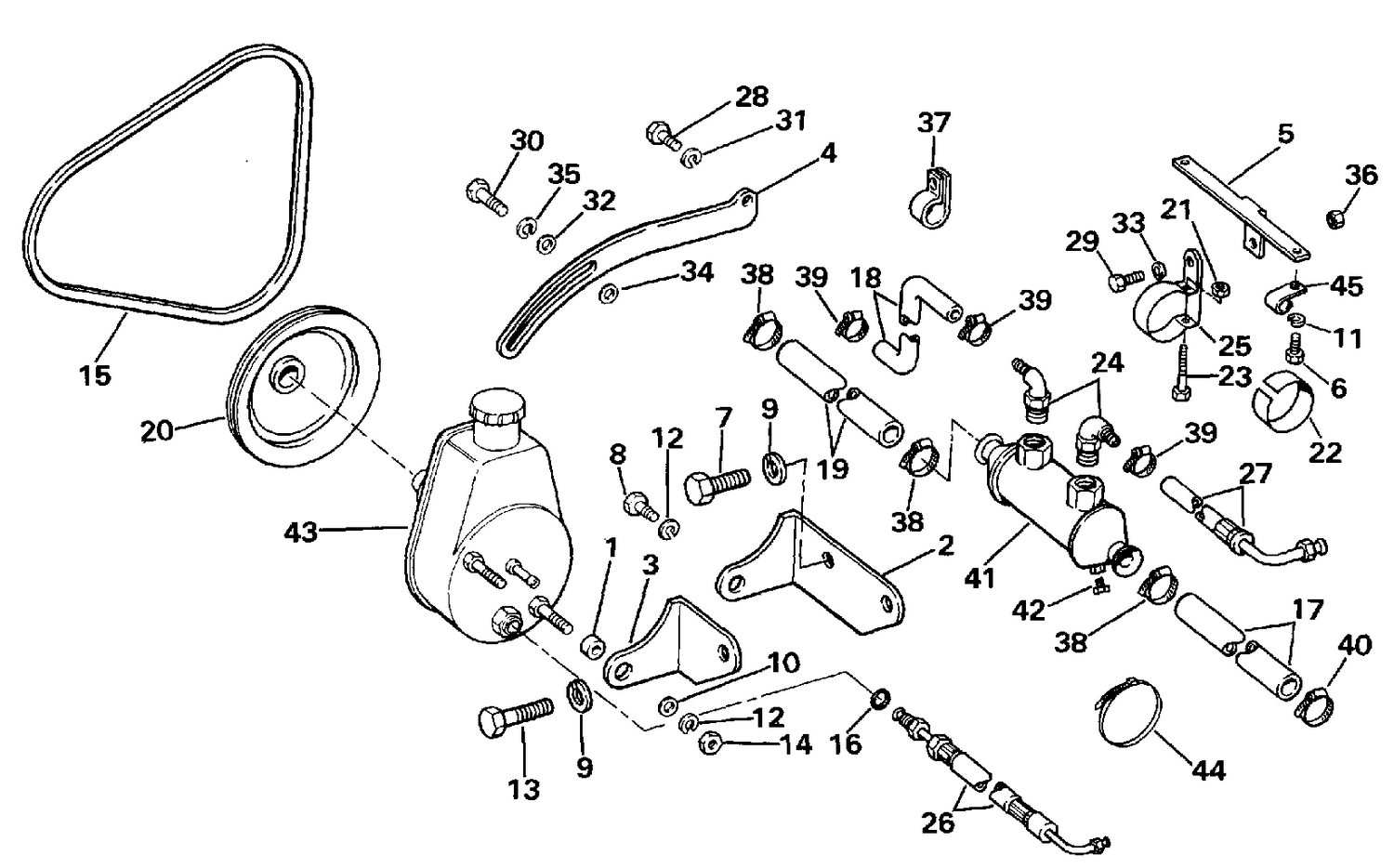

POWER STEERING PUMP

POWER STEERING PUMP

Parts (37)

RefPart NumberDescription
1 3852495 SPACER, Oil tube clamp This part replaces 0910318.
2 3852500 BRACKET, Steering pump, front This part replaces 0910335.
3 3852501 BRACKET, Steering pump, rear This part replaces 0910336.
4 0910439 BRACE, Pwr steering pump
5 0911865 BRACKET, Oil cooler to manifold
7 0306539 BOLT, Distributor
8 0910324 SCREW
9 0120177 L'WASHER, Alternator to brkt
10 0312972 WASHER, Alternator brkt
12 3852496 LOCK WASHER, Bracket to pump This part replaces 0910320.
13 0306414 SCREW
14 3852498 NUT, Pump to bracket, rear This part replaces 0910323.
15 0909971 BELT, Alternator
16 3852497 O-RING, Pressure hose This part replaces 0910321.
17 0914767 HOSE, Therm. hsg. to manifold This part replaces 0911742.
18 3852574 HOSE, Cooler to pump, return This part replaces 0911917.
19 0911974 HOSE, Cooler to thermo. hsg.
20 3853804 PULLEY, Steering pump This part replaces 0983839.
21 0308335 CLAMP, Coil
22 3853236 SLEEVE, Ignition coil This part replaces 0308716.
24 0174177 ELBOW KIT This part replaces 0909985.
25 3852218 BRACKET, Oil cooler This part replaces 0383448.
26 3853809 HOSE, Pump to valve, pressure This part replaces 0984030.
27 3853810 HOSE, Valve to oil cooler, return This part replaces 0984055.
28 0306503 SCREW, Short
29 0328095 SCREW, Cooler to bracket
30 0910322 SCREW, Brace to pump
31 0306453 LOCKWASHER, Fuel pump
32 0306981 LOCKWASHER, Brace to pump
34 0312972 WASHER, Alternator brkt
35 3852496 LOCK WASHER, Bracket to pump This part replaces 0910320.
37 0123383 CLAMP, Cable to head
40 0912627 CLAMP This part replaces 0313851.
41 0983849 OIL COOLER
42 0909251 PLUG, Cooler
43 3850491 Pump Ay This part replaces 0983791.
44 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
