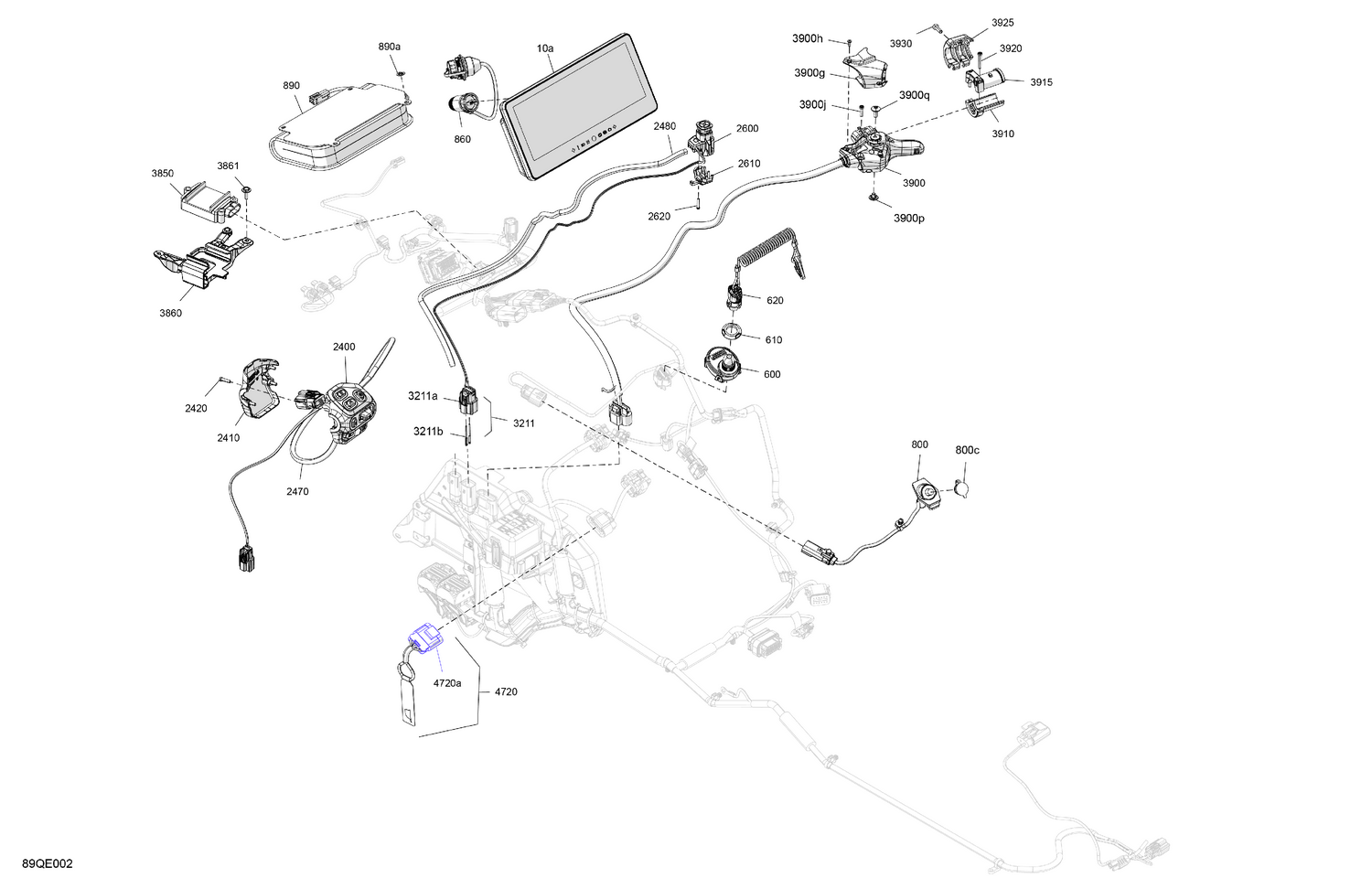

08- Electric - Upper Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 710009417 | Multifunction Gauge 10 |
| 600 | 710008832 | Terminal DESS CAN |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 800c | 572103300 | Cap |
| 860 | 515179248 | USB Wiring Harness Ass'y |
| 890a | 732610072 | Push Nut |
| 2400 | 515179679 | LH Front Multifunction Switch |
| 2410 | 415130659 | Rear Housing |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3211a | 515179228 | Connector Molex Female 8 Cavities |
| 3211b | 278002860 | Sealing Cap |
| 3850 | 278004506 | GPS |
| 3860 | 515179316 | Module Support |
| 3861 | 250000725 | Screw M4 X 16 |
| 3900g | 512060862 | Cap |
| 3900h | 250000623 | Torx Screw M2.9 x 9.5 |
| 3900j | 250000671 | Torx Screw |
| 3900p | 512060961 | Screw |
| 3900q | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
| 3910 | 512061550 | Lower Handle Support |
| 3915 | 512061551 | Upper Handle Support |
| 3920 | 250000263 | Torx Screw #8-18 |
| 3925 | 512060987 | Front Housing |
| 3930 | 250000632 | Torx Screw M5 X 14 |
