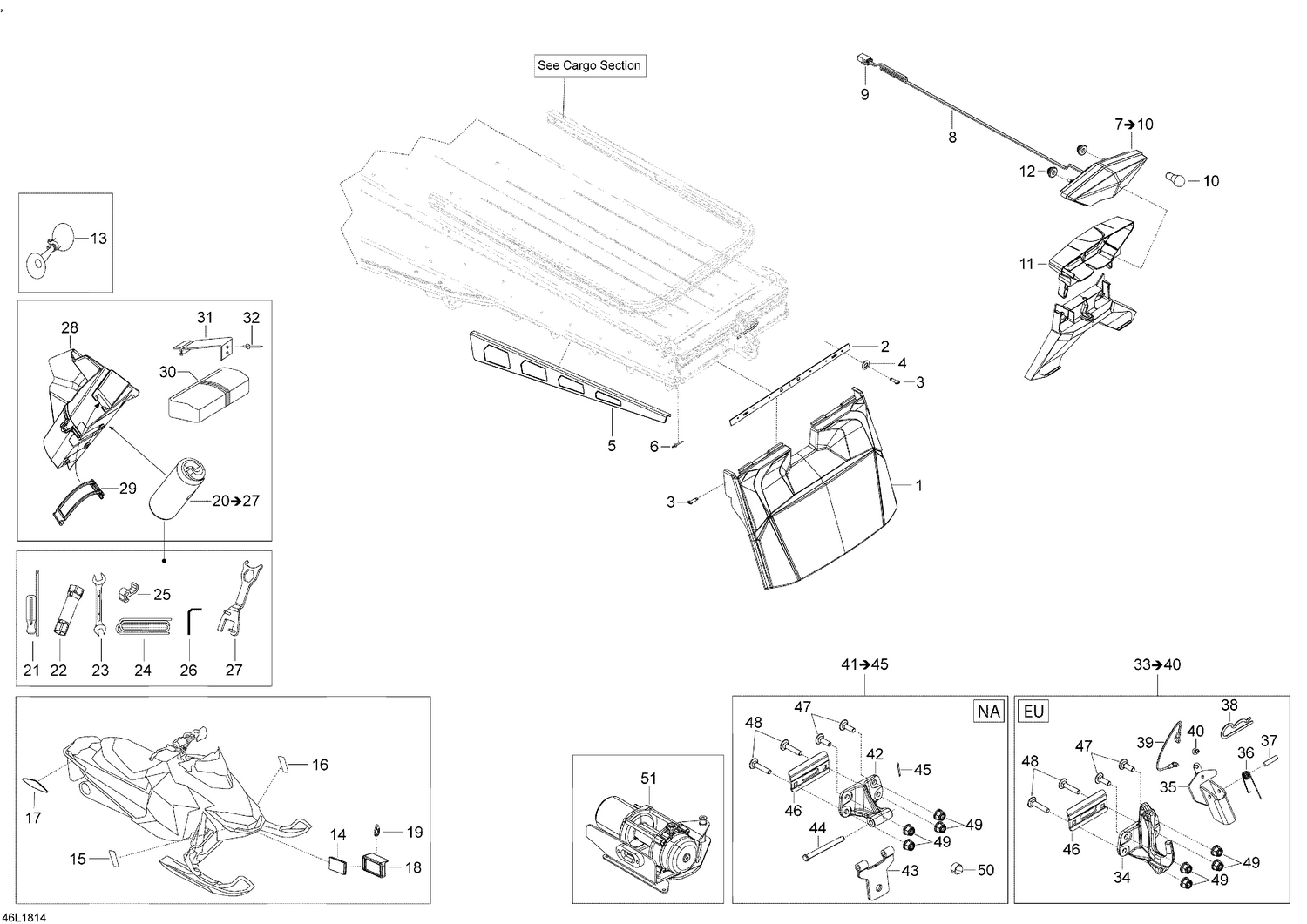

09- Utilities Expedition - 600HO E-TEC
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001406 | Snow Guard |
| 2 | 520001021 | Plate |
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 8 | 520000849 | Rear Wiring Harness |
| 10 | 520000758 | Bulb |
| 11 | 511000764 | Rear Light Cover |
| 12 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 15 | 520001600 | Yellow, RH Reflector |
| 16 | 520001601 | Yellow, LH Reflector |
| 17 | 705003412 | Red, Lateral Reflector |
| 20 | 520001670 | Tools Kit This part replaces 529000077. |
| 28 | 520000894 | Tool Kit Rack |
| 29 | 520000528 | Latch |
| 36 | 560309200 | PIN-RETAINER - Call your local BRP dealership |
| 37 | 41031 | Cotter Pin |
| 46 | 520000727 | Plate |
| 47 | 207782544 | Carriage Bolt, M8 X 25 |
| 48 | 207784044 | Bolt Carriage M8 X 40 |
| 49 | 233281414 | Hex. Flange Elastic Nut M8 |
| 50 | 28056 | Cover |
| 52 | 705011222 | Amber Reflector |
| 53 | 520001744 | LH Reflector Mount |
| 53 | 520001746 | RH Reflector Mount |
| 54 | 205082044 | Socket Head Screw M8 X 20 |
| 55 | 233281414 | Hex. Flange Elastic Nut M8 |
| 56 | 28056 | Cover |
| 57 | 233251494 | Elastic Flange Nut M5 |
