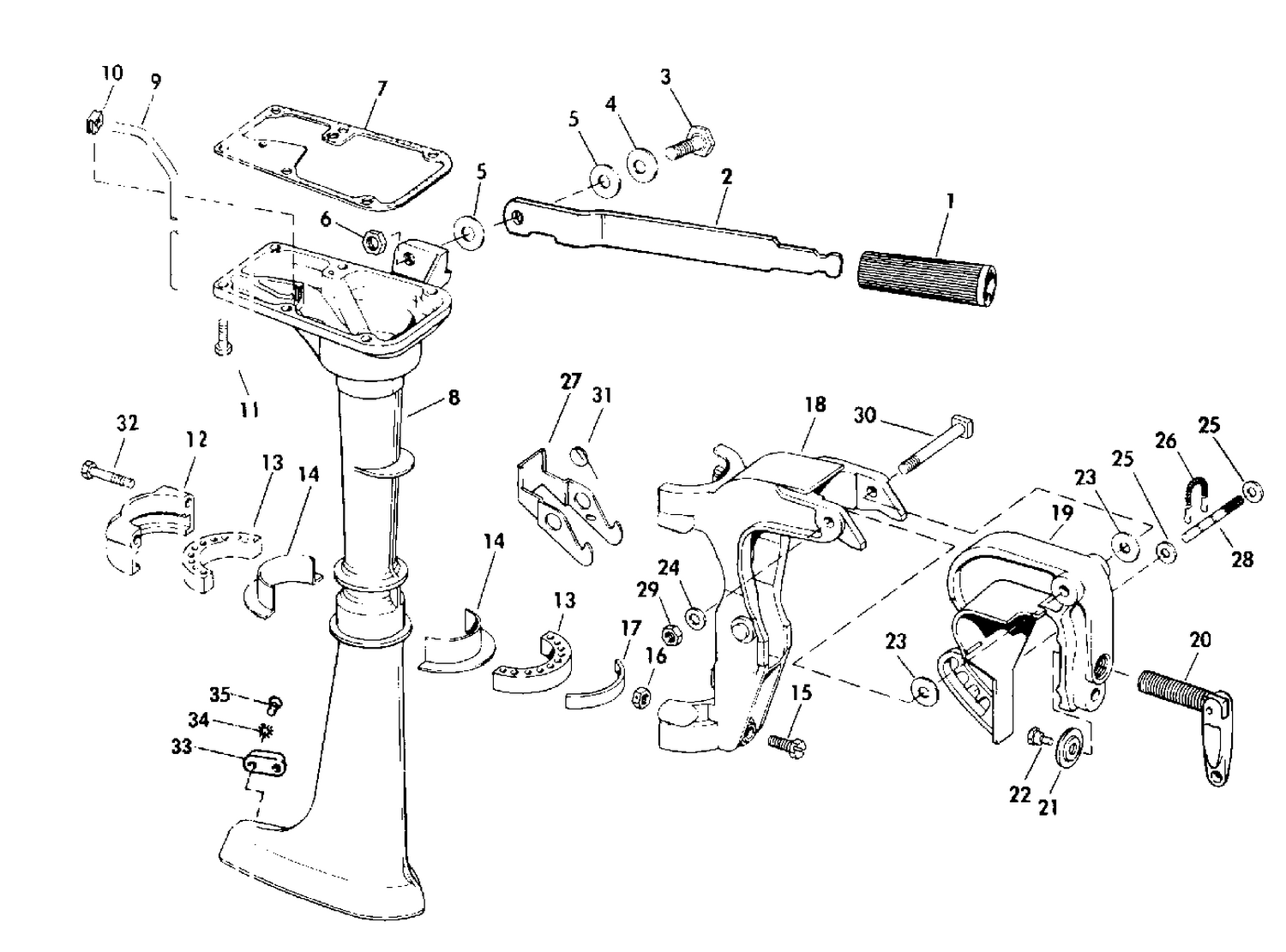

| Ref | Part Number | Description |
|---|
| 1 |
0115220 |
GRIP HANDLE, Steering This part replaces 0313181. |
| 2 |
0316469 |
HANDLE, Steering |
| 3 |
0312876 |
SCREW, Steering |
| 4 |
0312874 |
SPRING WASHER, Strg. handle |
| 6 |
0309602 |
LOCK NUT, Steering handle |
| 7 |
0313494 |
GASKET CYL TO EXHAUST HSG |
| 8 |
0334636 |
HOUSING, Exhaust This part replaces 0327605. |
| 9 |
0313951 |
WATAER TUBE, Std. |
| 11 |
0300646 |
VIS, ancrage |
| 12 |
0314044 |
RETAINER, Pivot bearing |
| 13 |
0334759 |
VIBRATION DAMPENER, Pivot bearing, upper & lower This part replaces 0314046. |
| 14 |
0314042 |
BEARING, Pivot, upper & lower |
| 15 |
0314048 |
SCREW, Adj. friction brake |
| 17 |
0314047 |
BRAKE, Friction |
| 18 |
0332392 |
SWIVEL BRACKET This part replaces 0324654. |
| 19 |
0398325 |
STERN BRACKET & CLAMP SCREW ASSY. This part replaces 0391957. |
| 20 |
0391428 |
CLAMP SCR. & HAND ASSY., Stainless steel |
| 20 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0388346. |
| 23 |
0314041 |
WASHER |
| 24 |
0306453 |
LOCKWASHER, Fuel pump |
| 25 |
0308090 |
WASHER, Tilt angle adj. rod |
| 26 |
0314043 |
SPRING, Tilt handle adj. rod |
| 27 |
0313952 |
LEVER, Reverse lock |
| 28 |
0333515 |
ROD, Tilt This part replaces 0313937. |
| 30 |
0332228 |
TILTING BOLT This part replaces 0314040. |
| 31 |
0314049 |
SPRING, Reverse lock |
| 32 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 33 |
0327606 |
ANODE |
