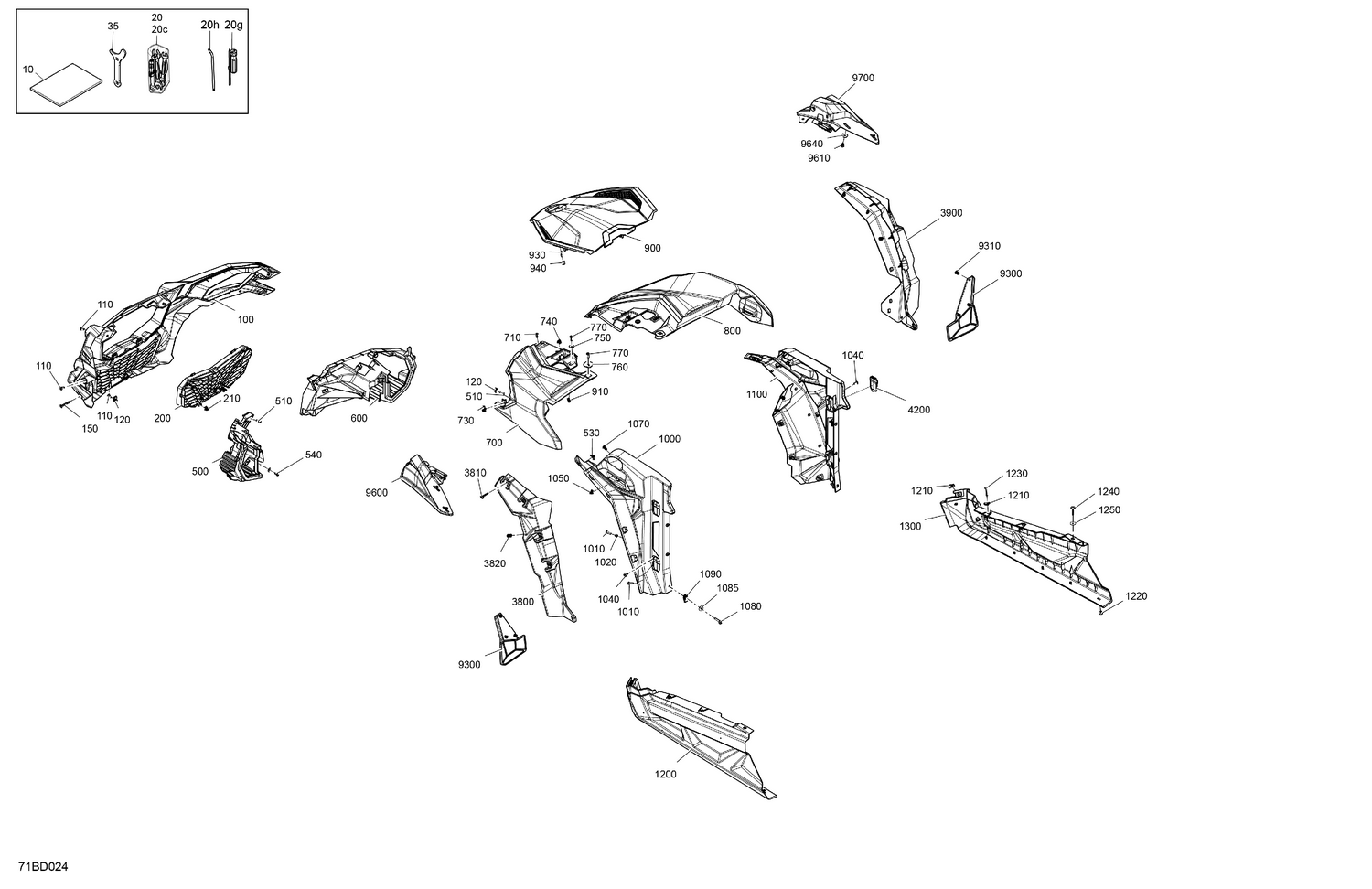

07- Body - Front Section
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 219002317 | English Operator Guide |
| 20c | 529000085 | Socket Wrench 14/16MM |
| 20g | 529000021 | Screw Driver |
| 20h | 708200340 | Torx Key T30 |
| 35 | 529000057 | Adjustment Wrench |
| 100 | 705011317 | Front Fascia |
| 110 | 250000721 | Torx Truss Screw M6 X 16 |
| 120 | 250100198 | Panel Nut M6 X 1.0 |
| 150 | 250000748 | Torx Screw M6 X 45 |
| 200 | 705011318 | Fascia Removable Grid |
| 210 | 517306478 | Clip |
| 500 | 705011319 | LH Headlamp Structure |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 530 | 250100198 | Panel Nut M6 X 1.0 |
| 540 | 250000959 | Screw PT Type K-50 X 16 |
| 600 | 705011320 | RH Headlamp Structure |
| 700 | 705018104 | Fiery Red, LH Front Fender |
| 710 | 250000721 | Torx Truss Screw M6 X 16 |
| 730 | 250100198 | Panel Nut M6 X 1.0 |
| 740 | 517306478 | Clip |
| 750 | 250200162 | Flat Washer M6.6 X 22 |
| 760 | 705003841 | Support Plate |
| 770 | 250000722 | Torx Screw M6 X 20 |
| 800 | 705018105 | Fiery Red, RH Front Fender |
| 900 | 705011322 | Removable Hood |
| 910 | 517306478 | Clip |
| 930 | 250000807 | Torx Truss Screw M6 X 25 |
| 940 | 705502616 | Bushing |
| 1000 | 705011323 | LH Front Mudguard |
| 1010 | 250000712 | Torx Screw M6 X 20 |
| 1020 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1040 | 250000721 | Torx Truss Screw M6 X 16 |
| 1050 | 517306478 | Clip |
| 1070 | 293150230 | Tuflok Plastic Rivet |
| 1080 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1085 | 234062670 | Stainless Steel Flat Washer |
| 1090 | 250100198 | Panel Nut M6 X 1.0 |
| 1100 | 705011324 | RH Front Mudguard |
| 1200 | 705019026 | LH Front Rocker Panel |
| 1210 | 250100198 | Panel Nut M6 X 1.0 |
| 1220 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 1230 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1240 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 1250 | 250200162 | Flat Washer M6.6 X 22 |
| 1300 | 705019027 | RH Front Rocker Panel |
| 3800 | 705019029 | LH Front Mud Guard |
| 3810 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 3820 | 293150230 | Tuflok Plastic Rivet |
| 3900 | 705019028 | RH Front Mud Guard |
| 4200 | 705012703 | Hinge Cover |
| 9300 | 705012793 | Front Mud Flap Model T |
| 9310 | 293150230 | Tuflok Plastic Rivet |
| 9600 | 705012791 | LH Front Flasher Support Model T |
| 9610 | 293150230 | Tuflok Plastic Rivet |
| 9640 | 234082670 | Stainless Steel Flat Washer |
