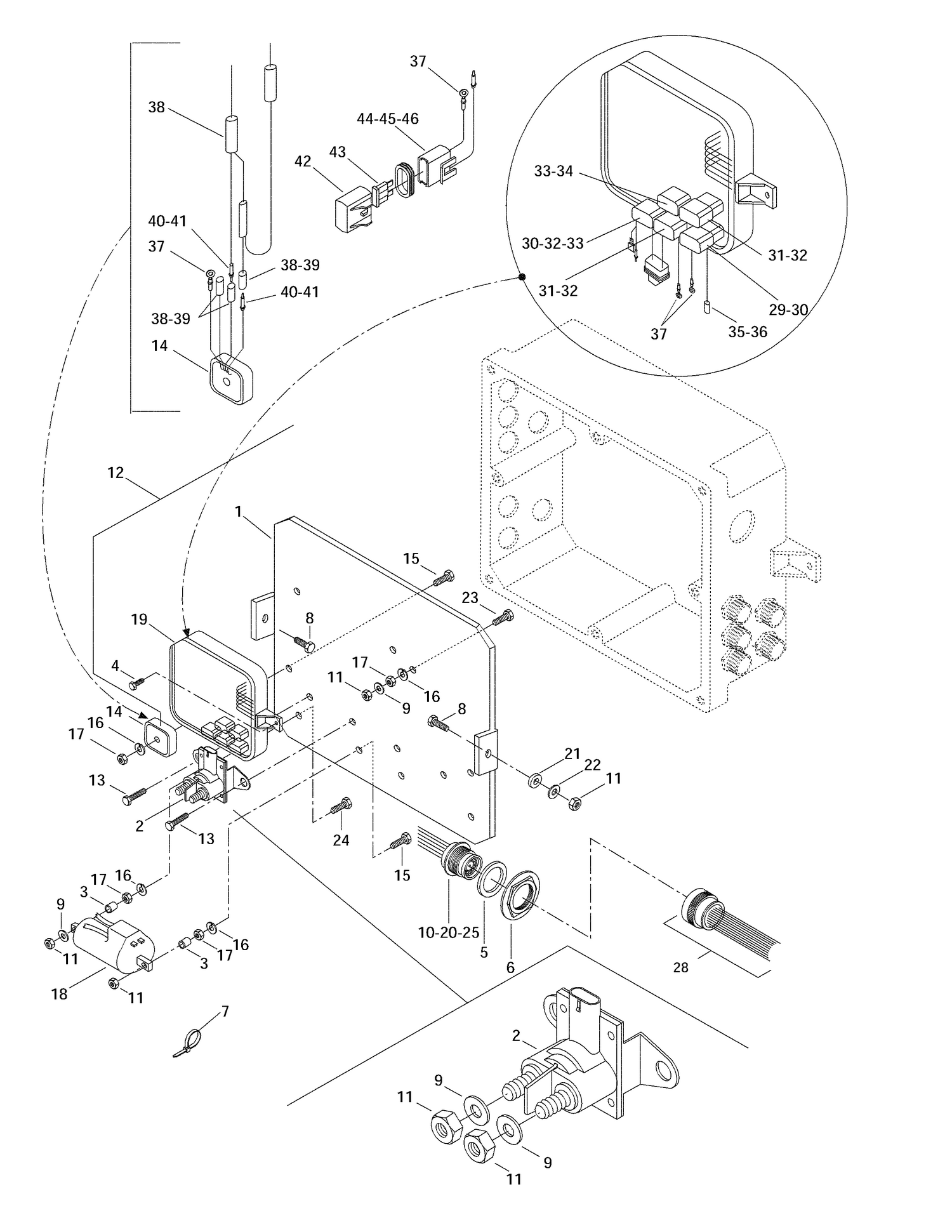

| Ref | Part Number | Description |
|---|
| 1 |
278000874 |
Mounting Plate |
| 2 |
278003012 |
Starter Relay This part replaces 278000513. |
| 3 |
278000235 |
SPACER - Call your local BRP dealership |
| 4 |
211000080 |
Taptite Screw M6 x 16 |
| 5 |
293250053 |
Gasket(Canon) |
| 6 |
211100029 |
Nut(Canon) |
| 7 |
293750001 |
Tie Wrap 94 mm |
| 8 |
207162060 |
Hex. Forming Screw M6 X 20 This part replaces 210000004. |
| 9 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 10 |
278000869 |
Male Terminal |
| 11 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 13 |
210261040 |
Hex. Flange Screw M6 X 10 This part replaces 211000035. |
| 14 |
278000123 |
RECTIFIER ASS'Y - Call your local BRP dealership |
| 15 |
207163560 |
Hex. Screw M6 X 35 This part replaces 210000014. |
| 16 |
234161601 |
Lock Washer Helical M6 This part replaces 217361500. |
| 17 |
232061600 |
Hex. Nut M6 This part replaces 212100004. |
| 18 |
278000586 |
IGNITION COIL - Call your local BRP dealership |
| 20 |
278000868 |
Male Terminal(Canon) |
| 21 |
211200032 |
Rubber Washer 6 mm |
| 22 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 23 |
207162560 |
Hex. Screw M6 X 25 This part replaces 210000005. |
| 24 |
207164060 |
Hex. Screw M6 X 40 This part replaces 210000012. |
| 25 |
278000867 |
Female Housing(Canon) |
| 26 |
204470059 |
Fuse Holder |
| 27 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 28 |
204470036 |
Harness Ass'y.(Incl. 20, 22) |
| 29 |
278000378 |
FUSE CAP - Call your local BRP dealership |
| 30 |
278000343 |
Fuse, 15 Amperes |
| 31 |
278001326 |
Fuse Holder Cap This part replaces 278000345. |
| 32 |
278000344 |
Fuse, 5 Amperes |
| 33 |
278000379 |
Fuse Holder |
| 34 |
409003900 |
Fuse, 20 Amperes This part replaces 278001143. |
| 35 |
278001009 |
Female Terminal |
| 36 |
278001007 |
Insulated Sheath This part replaces 290964072. |
| 37 |
278000992 |
Open Barrel |
| 38 |
278001009 |
Female Terminal |
| 39 |
278001007 |
Insulated Sheath This part replaces 290964072. |
| 40 |
278000230 |
Male Terminal |
| 41 |
278000231 |
Insulation Sheath |
| 42 |
278000378 |
FUSE CAP - Call your local BRP dealership |
| 43 |
409003900 |
Fuse, 20 Amperes This part replaces 278001143. |
| 44 |
278000218 |
Wire Seal |
| 45 |
278000220 |
Male Connector, 2 Circuits |
