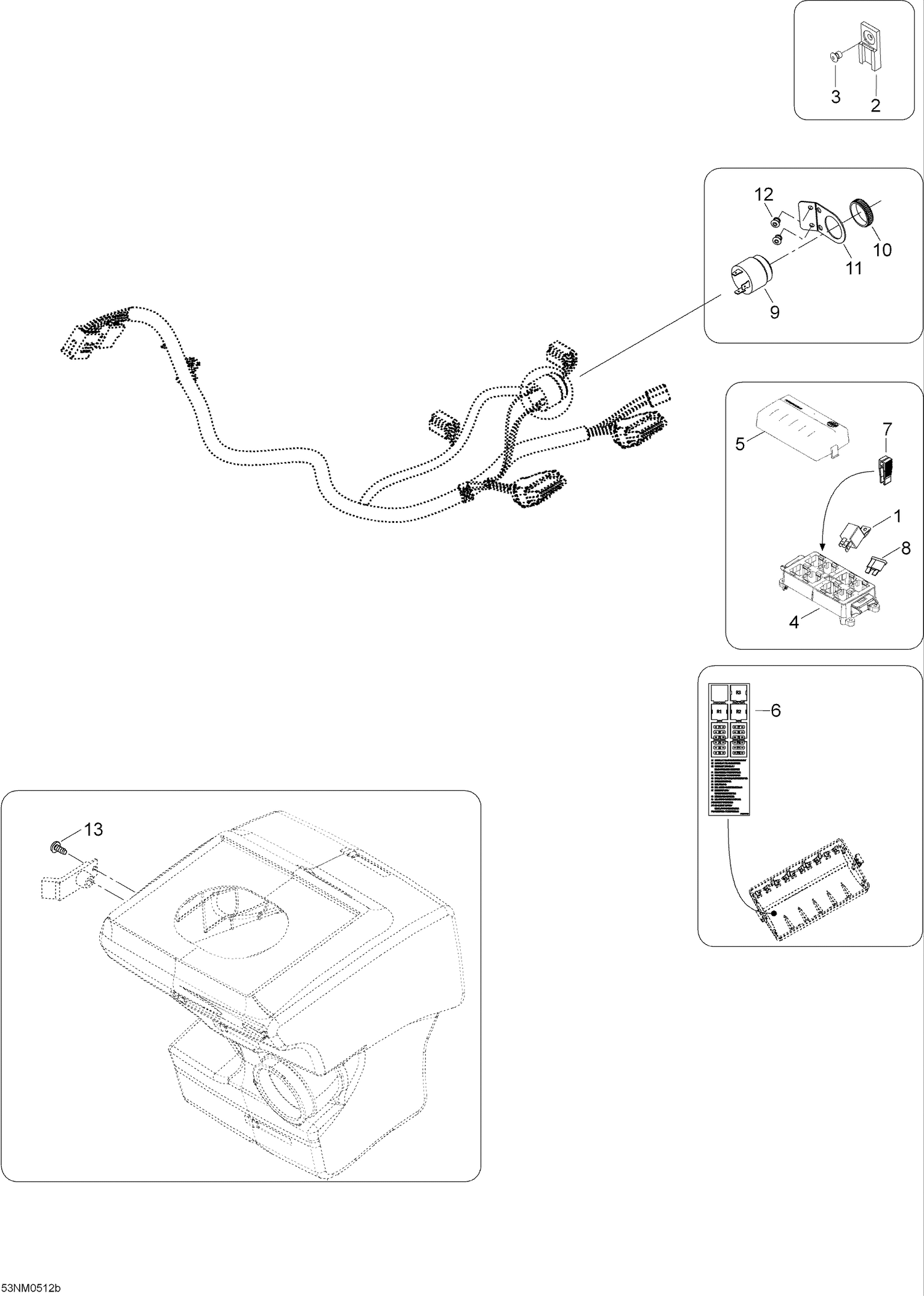

10- Electrical System
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515177672 | Relais *Relay This part replaces 410113604. |
| 2 | 270000141 | Clip |
| 3 | 36005 | Rivet |
| 4 | 515176065 | FUSE BOX BASE - Call your local BRP dealership |
| 5 | 515176066 | COVER - Call your local BRP dealership |
| 6 | 516001613 | Decal |
| 7 | 515175811 | FUSE TOOL - Call your local BRP dealership |
| 8 | 278000344 | Fuse 5 A |
| 8 | 278000704 | FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 8 | 409003900 | Fuse 20 A |
| 8 | 410917200 | Fuse 30 A |
| 9 | 515176035 | HORN - Call your local BRP dealership |
| 10 | 414805101 | PLASTIC NUT - Call your local BRP dealership |
| 11 | 5447941 | HORN SUPPORT - Call your local BRP dealership |
| 12 | 36005 | Rivet |
