Home / BRP / 2011 / Renegade / Renegade X & Adrenaline 1200 XR, 2011 000MMBA00 000MMBB00 000MMBC00 000MNBA00 / 05- Drive System

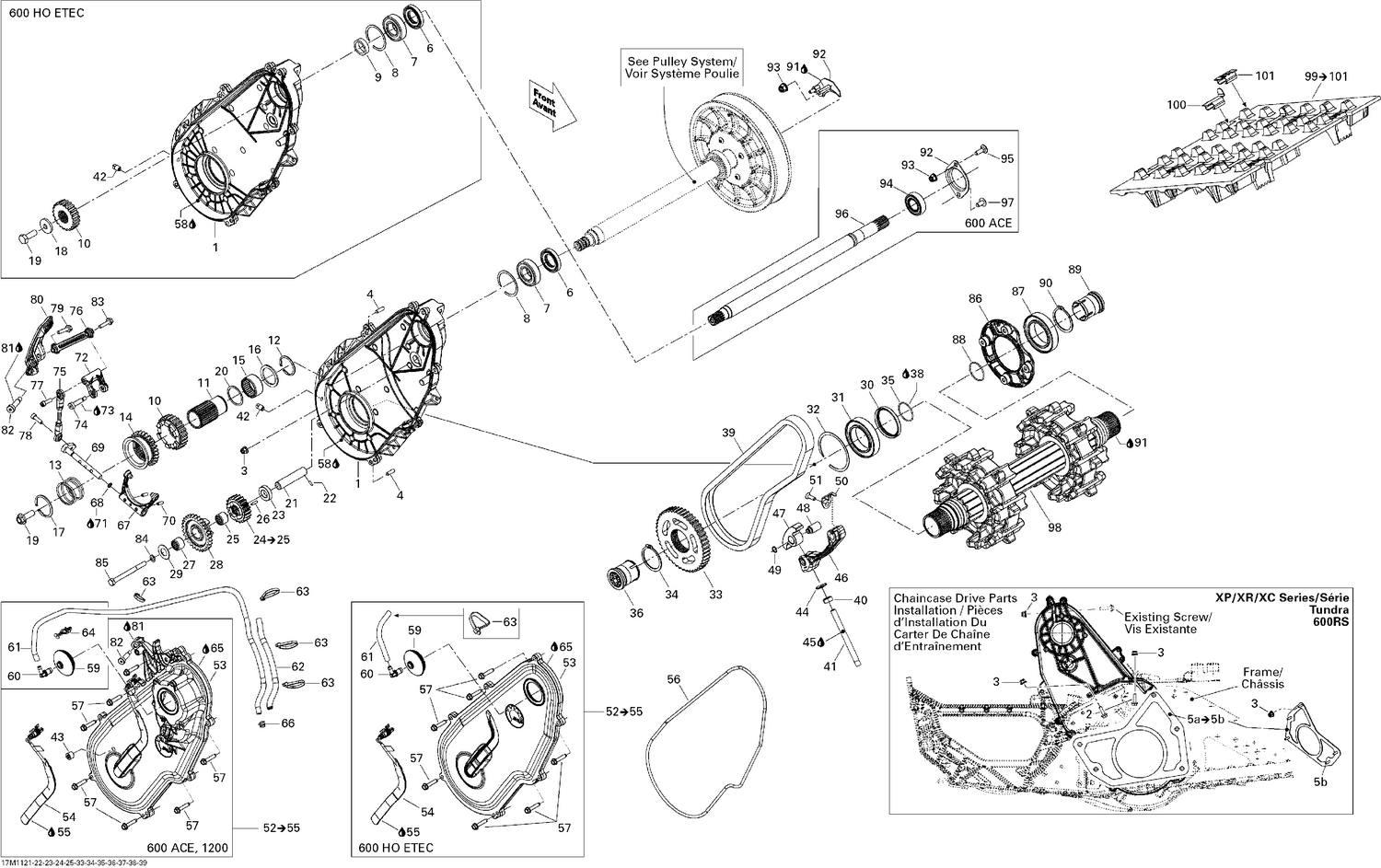

05- Drive System

05- Drive System

Parts (93)

RefPart NumberDescription
2 207662034 Hex. Flange Screw M6 X 20
3 233261434 Flange Elastic Nut M6
4 250400048 Dowel Pin
5b Not Available As Spare Part - Clinch Stud M6 X 20
6 293200158 Oil Seal This part replaces 415049300.
7 293350115 Ball Bearing This part replaces 293350055.
8 504152576 Circlip
9 XXX Not Available As Spare Parts
10 504152961 Sprocket, 24 Teeth
11 504152979 Coupling
12 293370054 Circlip
13 504153178 Spring Release This part replaces 504096600.
14 504152960 Slinding Gear, 27 Teeth
15 293350063 Needle Bearing
16 504152689 Washer
17 293370055 Circlip
18 XXX Not Available As Spare Parts
19 207503044 Hex. Screw M10 X 1.5 X 30
20 504152862 Washer
21 504083100 Reverse Shaft
22 250400010 Rolled Pin M3 X 10
23 504078700 Ring
25 293350064 Needle Bearing
26 570048600 Alignement Rod
27 293350064 Needle Bearing
28 504152724 Sprocket, 29 Teeth
29 504077300 Spacer
30 293200159 Oil Seal This part replaces 504152571.
31 293350059 Ball Bearing
32 504152582 Circlip
34 504152572 Circlip
35 293300122 O-Ring
36 504152619 Magnetic Cap
38 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
40 232006414 Hex. Nut M10 X 1.5
41 504152602 Adjustment Screw
43 250500013 Hex. Countersunk Drain Plug This part replaces 250500012.
44 250200100 Bonded Washer
45 413803300 SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
46 504153431 Chaine Tensionner This part replaces 504152748.
47 504152739 Slider Chain
48 504152841 Tensioner Axle
49 504152282 Circlip
50 504153122 Chain Slider
51 205862044 Socket Head Screw M6 X 20, Scotch Grip
54 504152896 Rotation Sensor
55 219704460 Was 293800066 Sealant Loctite 5900, 300 ml
56 293300130 Tight Seal
57 210263050 Hex. Flange Screw M6 X 30 This part replaces 210263080.
57 250000360 Hex. Flange Screw M6 X 1.0 X 30
58 413803300 SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
59 504152860 Cap
60 414580700 Male Connector
61 219704410 Polyurethane Hose 10000Mm Long
62 504153074 Tube Protector This part replaces 504152900.
63 414115200 Tie-Rap 180 mm
64 291000714 ATTACHE *BRACKET - Call your local BRP dealership
65 413803300 SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
66 414554800 Spring Clamp
67 504153432 Fork Ass'y This part replaces 504152954.
68 414484400 O-Ring
69 504152956 Welded Axle Fork
70 250400045 Spring Pin M5 X 16
71 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
72 504153427 Lever This part replaces 504152788.
73 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
74 250000340 SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership
75 504152951 Ball Joint
76 504152766 Double Ball Joint
77 207564044 Hex. Flange Screw M6 X 40, Scotch Grip
78 205562044 Socket Head Screw M6 X 20, Scotch Grip
79 207562544 Hex. Flange Screw M6 X 25
80 504153082 Grip
81 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
82 250000340 SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership
83 207562544 Hex. Flange Screw M6 X 25
84 504082900 Washer
85 207089044 Hex. Screw M8 X 90
86 504153886 Retaining Ring This part replaces 504152949.
87 293350059 Ball Bearing
88 293300122 O-Ring
89 504152619 Magnetic Cap
90 504152572 Circlip
91 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
92 504153418 Bearing Housing Ass'y This part replaces 504152974.
93 233281414 Hex. Flange Elastic Nut M8
94 XXX Not Available As Spare Parts
95 XXX Not Available As Spare Parts
96 XXX Not Available As Spare Parts
97 XXX Not Available As Spare Parts
98 504154054 Drive Axle Ass'y This part replaces 504153083.
100 415129528 Track Guide
101 504152651 Cleat
