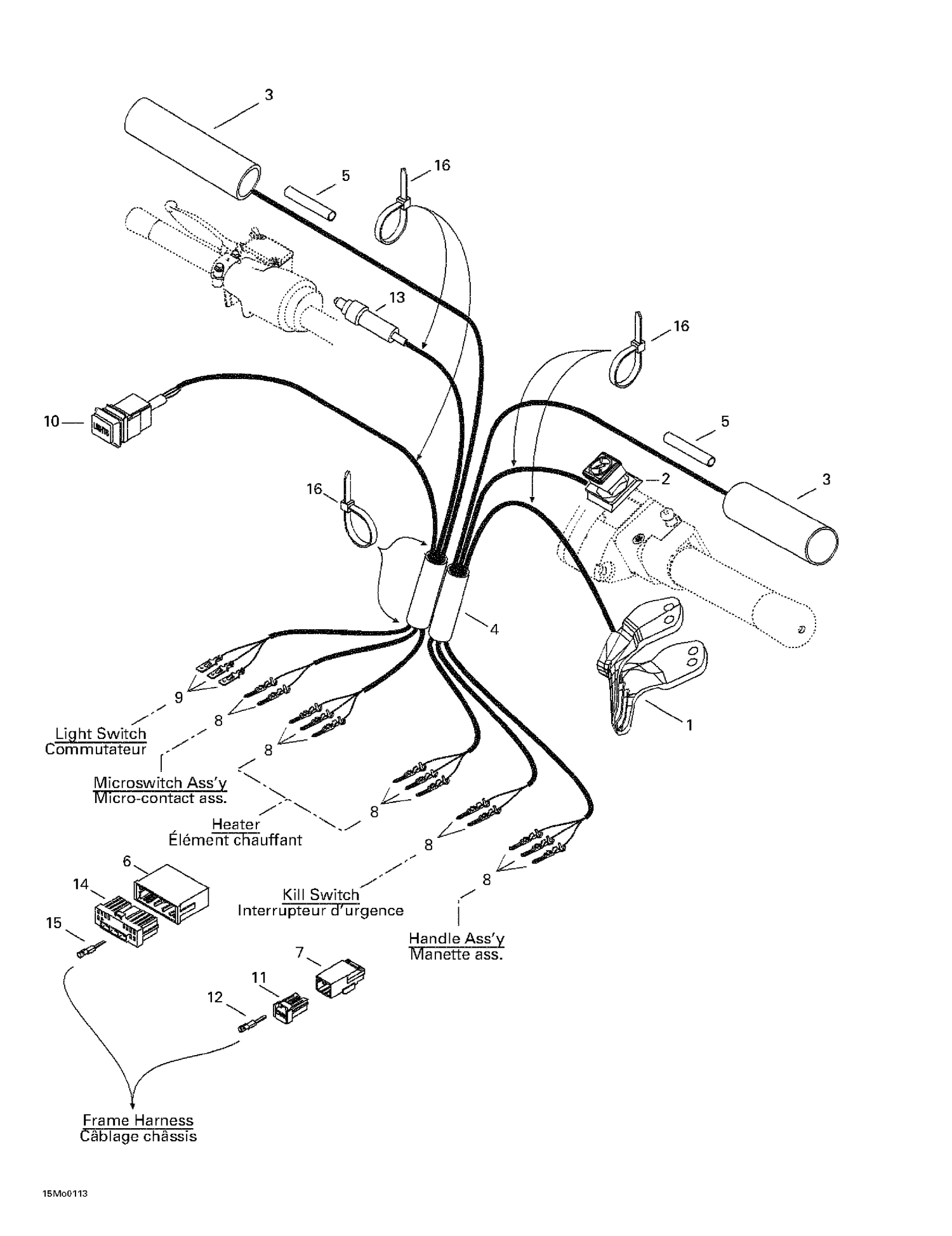

| Ref | Part Number | Description |
|---|
| 2 |
515175410 |
Kill Switch |
| 3 |
515175573 |
Heating Grip This part replaces 515175389. |
| 4 |
515175314 |
GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 5 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 6 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 7 |
515175494 |
Male Housing, 3 Circuits |
| 8 |
515175232 |
Male Terminal |
| 9 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 10 |
515175390 |
Light Switch |
| 11 |
515175495 |
Female Housing, 3 Circuits |
| 12 |
515175231 |
Female Terminal |
| 13 |
507032366 |
Microswitch This part replaces 507032283. |
| 14 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 15 |
515175231 |
Female Terminal |
| 515175282 |
Female |
Terminal 515175282 |
| 515175282 |
Terminal |
Femelle 515175282 |
