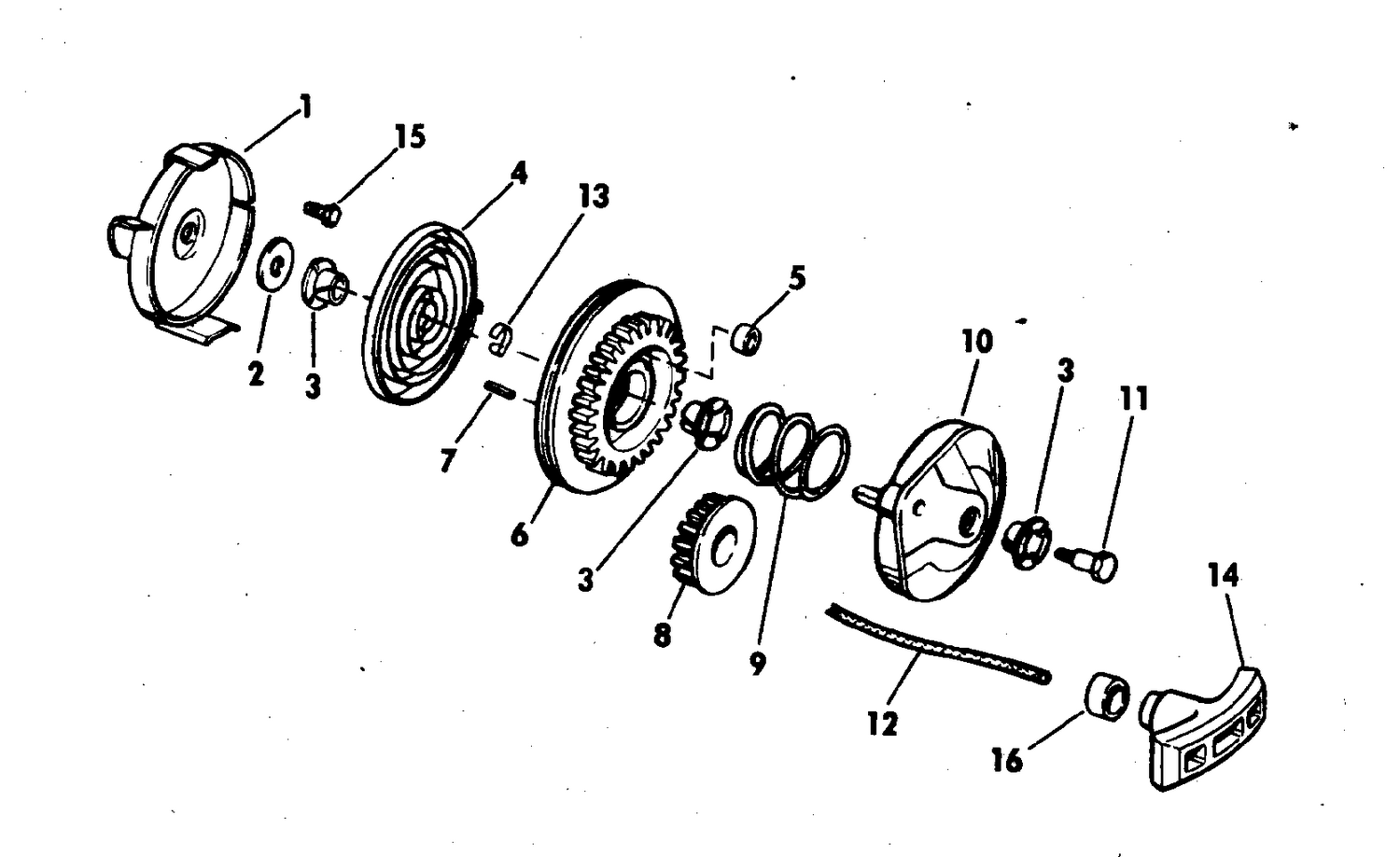

REWIND STARTER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0387824 | CUP & STOMP |
| 3 | 0312708 | BUSHING |
| 4 | 0312932 | BUSHING |
| 5 | 0320404 | BUSHING |
| 6 | 0393618 | PULLEY, Starter This part replaces 0384772. |
| 8 | 0323614 | IDLER GEAR, Starer |
| 9 | 0312980 | SPRING ARM TO PULLEY |
| 10 | 0327777 | ARM, Idle gear This part replaces 0323303. |
| 11 | 0312761 | SHOULDEER SCREW, Starter |
| 12 | ROPE, | Starter |
| 13 | 0321371 | RETAINER, Starter |
| 14 | 0324513 | HANDLE |
| 15 | 0312975 | SCREW |
| 0389162 | 0393617 | REWIND STARTER ASSY. This part replaces 0389162. |
