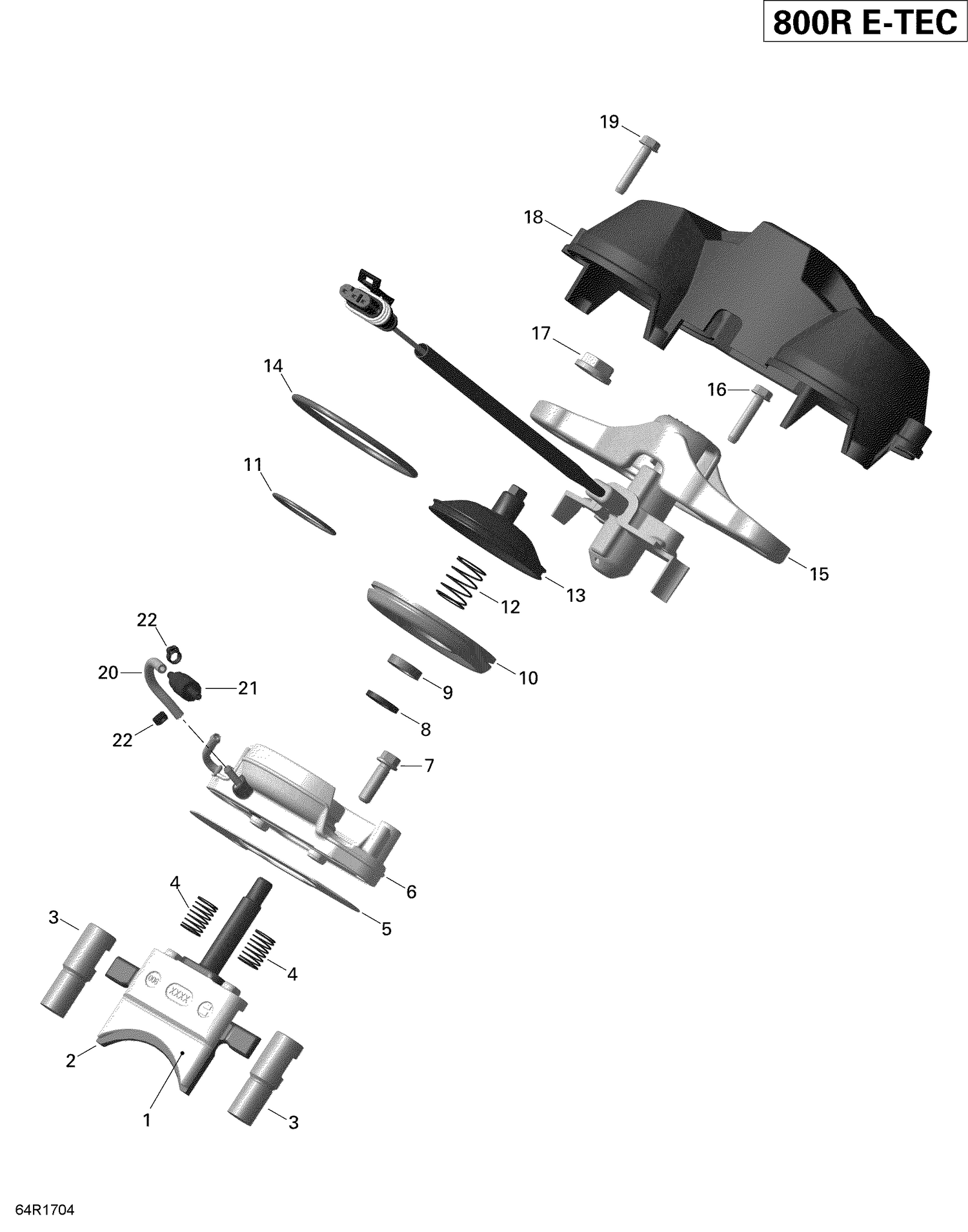

01- 3D Rave - 800R E-TEC
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420854900 | Upper Exhaust Valve |
| 2 | 420854904 | Lower Exhaust Valve This part replaces 420854909. |
| 3 | 420854890 | Exhaust Valve |
| 4 | 420238558 | Spring This part replaces 420238556. |
| 5 | 420430032 | Gasket |
| 6 | 420854888 | Valve Housing |
| 7 | 420440207 | Torx Flange Screw M6 X 20 |
| 8 | 420431380 | Gasket Ring |
| 9 | 420950732 | Oil Seal This part replaces 420950730. |
| 10 | 420260725 | Bellows |
| 11 | 420838255 | Hose Spring |
| 12 | 420238557 | Spring |
| 13 | 420854442 | Valve Cover |
| 14 | 420939286 | Hose Spring This part replaces 420939285. |
| 15 | 420854089 | Position Sensor |
| 16 | 420841550 | Tapping Screw M5 X 22 |
| 17 | 420942190 | Nut M12 X 1.5 |
| 18 | 420910821 | Cover |
| 19 | 420841550 | Tapping Screw M5 X 22 |
| 20 | 219704404 | Oil Hose 1500Mm Long |
| 21 | 420956515 | Check Valve Ass’y This part replaces 404160200. |
