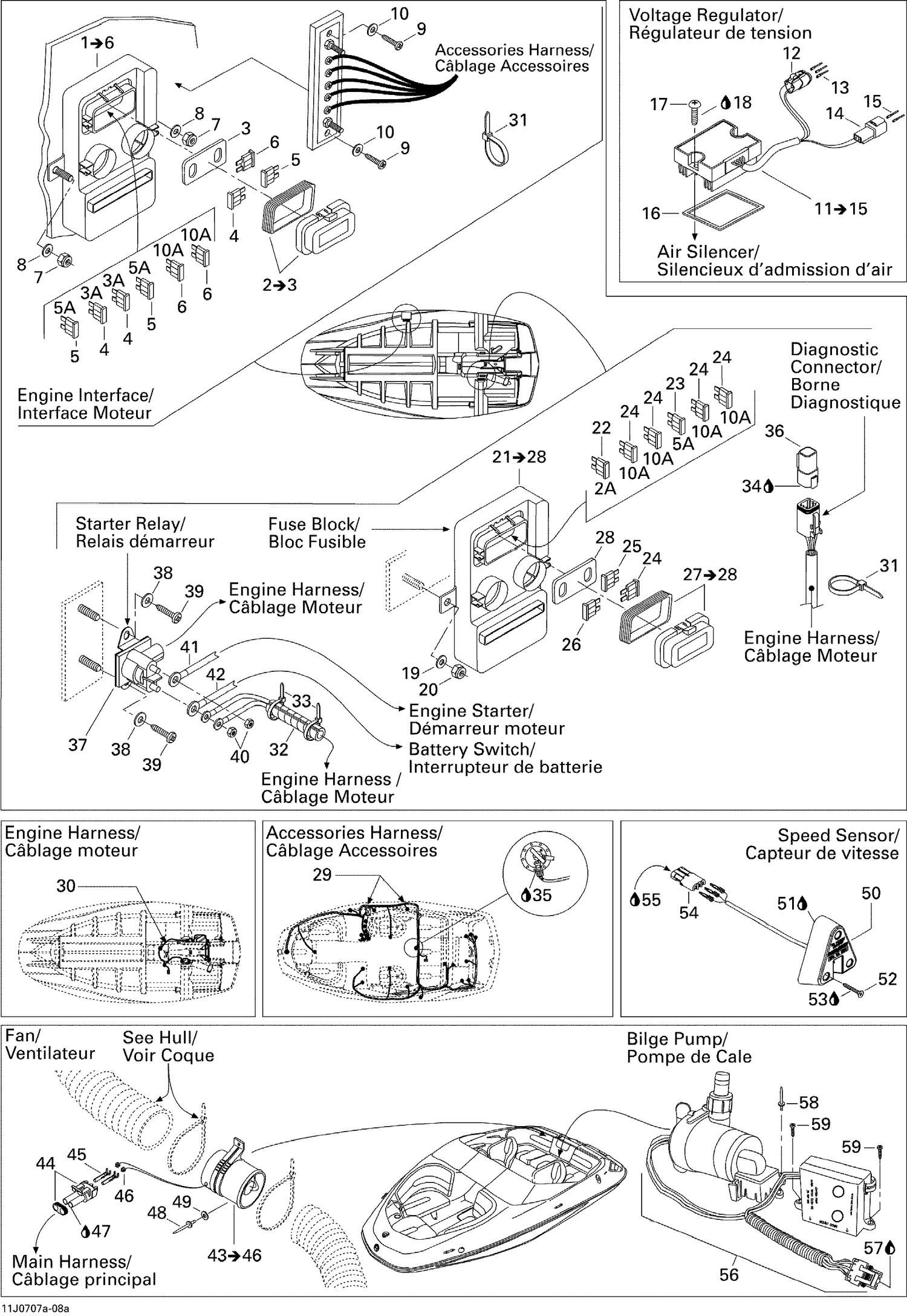

| Ref | Part Number | Description |
|---|
| 3 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 4 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 5 |
278000344 |
Fuse, 5 Amperes |
| 6 |
278001197 |
Fuse, 10 Amperes |
| 7 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
209641960 |
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 10 |
234041600 |
Flat Washer 4 mm, Stainless |
| 12 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 13 |
278000632 |
Female Terminal |
| 14 |
409206900 |
Male Housing, 2 Circuits |
| 15 |
515175567 |
Female Terminal |
| 16 |
293250123 |
SEAL - Call your local BRP dealership |
| 17 |
208663060 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 18 |
293800005 |
Loctite 271, 10 ml |
| 19 |
234062600 |
Flat Washer M6, Stainless |
| 20 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 22 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 23 |
278000344 |
Fuse, 5 Amperes |
| 24 |
278001197 |
Fuse, 10 Amperes |
| 25 |
409003900 |
Fuse, 20 Amperes |
| 26 |
410917200 |
Fuse, 30 Amperes |
| 28 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 29 |
204471104 |
Accessories Wiring Haness |
| 30 |
204470973 |
Engine Harness |
| 31 |
414115200 |
Tie-Rap 180 mm |
| 32 |
204471077 |
SLIT CONDUIT - Call your local BRP dealership |
| 33 |
293750002 |
Tie Wrap 142 mm |
| 34 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 35 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 36 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 37 |
278003012 |
Starter Relay This part replaces 278001802. |
| 38 |
234052600 |
Flat Washer 5 mm, Stainless |
| 39 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 40 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 41 |
204470798 |
RED CABLE - Call your local BRP dealership |
| 42 |
204470799 |
RED CABLE - Call your local BRP dealership |
| 43 |
204470108 |
Fan Ass'y |
| 44 |
278000220 |
Male Connector, 2 Circuits |
| 45 |
278000223 |
Female Terminal |
| 46 |
278000218 |
Wire Seal |
| 47 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 48 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 49 |
234052600 |
Flat Washer 5 mm, Stainless |
| 50 |
278001993 |
Speed Sensor |
| 51 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 52 |
211000021 |
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership |
| 53 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 54 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 55 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 56 |
204471078 |
BILGE PUMP - Call your local BRP dealership |
| 57 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 58 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
