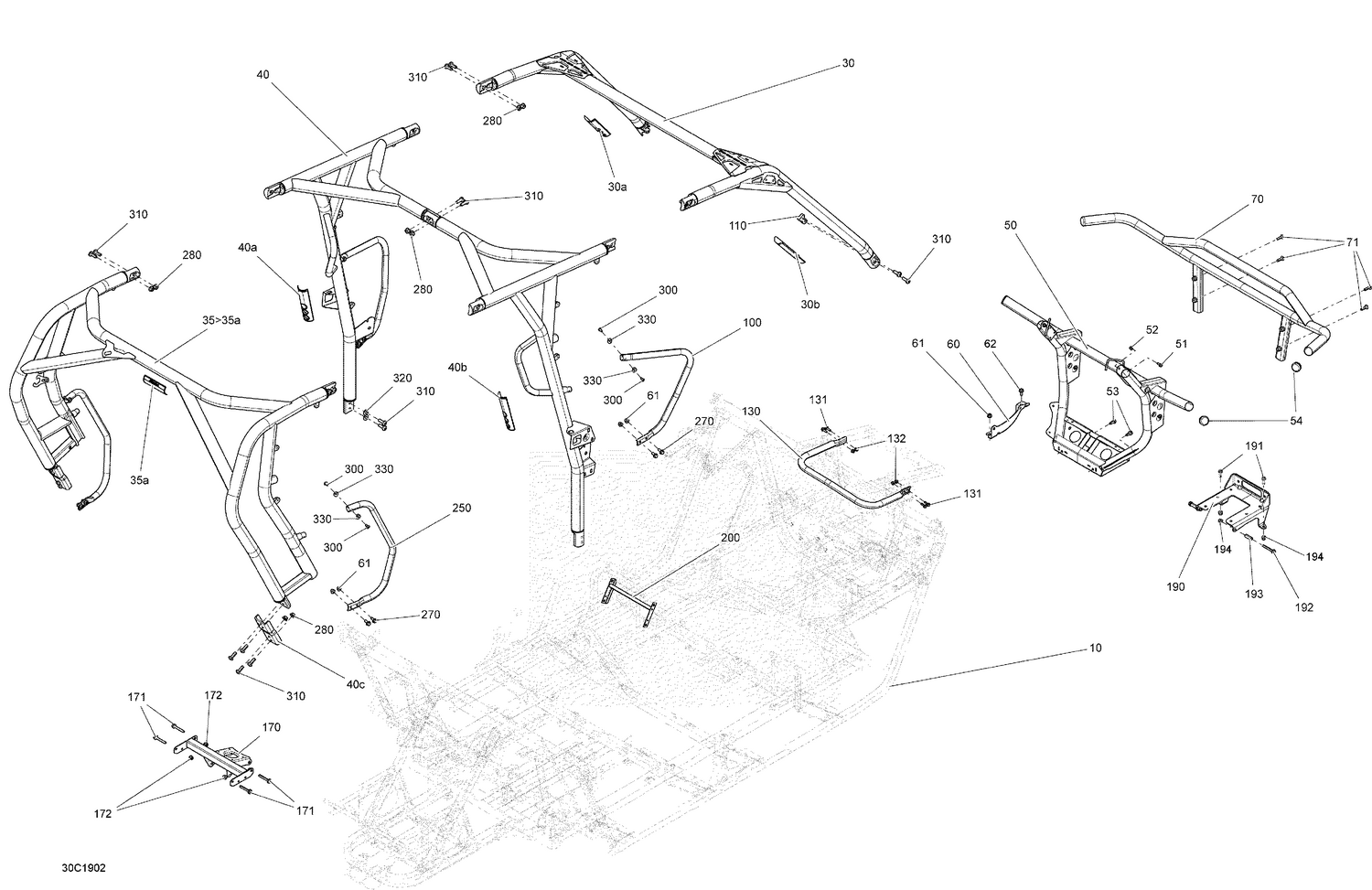

09- Frame
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715003935 | FRAME KIT - Call your local BRP dealership |
| 50 | 705202995 | Black Front Bumper |
| 51 | 207661644 | Hex. Flange Screw M6 X 16 |
| 52 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 53 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 54 | 705202455 | Cap |
| 60 | 705201721 | Front Differential Support |
| 61 | 233281414 | Hex. Flange Elastic Nut M8 |
| 62 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 110 | 705203415 | Binding Block |
| 130 | 705203332 | Black Handle |
| 131 | 207662046 | Hex. Flange Screw M6 X 20 |
| 132 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 170 | 705203538 | Differential Holder |
| 171 | 207685544 | Hex. Flange Screw M8 X 55 |
| 172 | 233281414 | Hex. Flange Elastic Nut M8 |
| 200 | 705203717 | Reinforcement Panel |
| 270 | 207682044 | Hex. Flange Screw M8 X 20 |
| 280 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
| 300 | 250000789 | Torx Truss M6X14 |
| 310 | 250000848 | Screw Pan M10 X 30 |
| 320 | 250200154 | Washer |
| 330 | 705202223 | Offset Washer |
