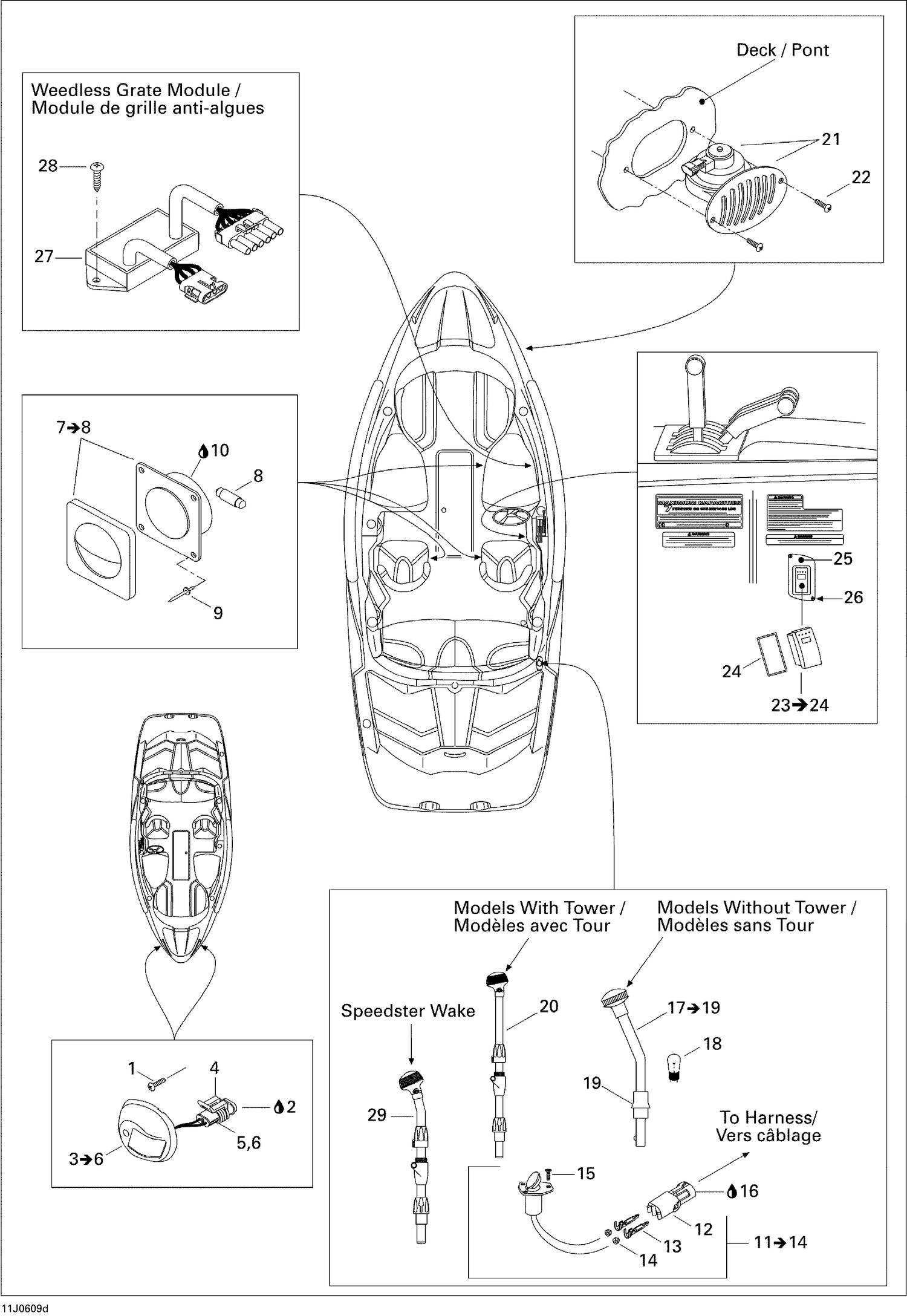

| Ref | Part Number | Description |
|---|
| 1 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 2 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 4 |
409209500 |
Female Housing, 2 Circuits This part replaces 204470528. |
| 5 |
278001014 |
Female Terminal |
| 6 |
278001013 |
Wire Seal |
| 7 |
204470026 |
Courtesy Light Ass'y |
| 8 |
204470081 |
BULB - Call your local BRP dealership |
| 9 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 10 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 12 |
278000217 |
Female Housing, 2 Circuits |
| 13 |
278000222 |
Male Terminal |
| 14 |
278000218 |
Wire Seal |
| 15 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 16 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 18 |
204470053 |
Bulb |
| 19 |
204470350 |
COLLAR - Call your local BRP dealership |
| 20 |
204470817 |
Rear Lamp Pole 62" |
| 21 |
204470801 |
HORN - Call your local BRP dealership |
| 22 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 24 |
204470132 |
Gasket |
| 25 |
204470998 |
Switch Panel |
| 26 |
250000090 |
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 27 |
204470887 |
Weedless Grade Module |
| 28 |
209641960 |
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
