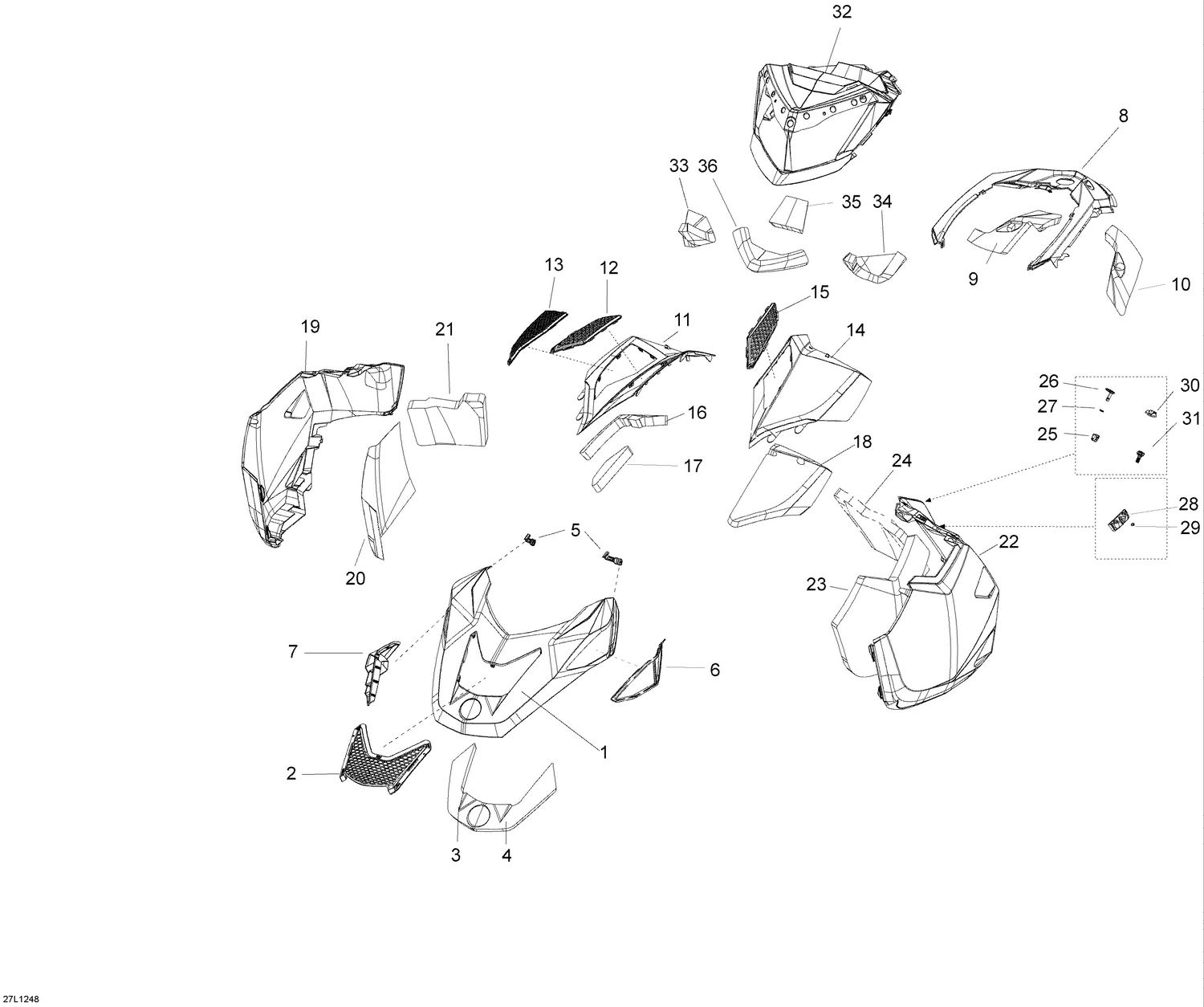

09- Hood
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304814 | White, Hood |
| 2 | 517304843 | Hood Grill |
| 3 | 517304330 | Insulator |
| 4 | 517304214 | Insulator |
| 5 | 517304289 | Latch Pannel |
| 6 | 508000609 | Air Filter |
| 7 | 517306980 | Scoop Grill This part replaces 517304155. |
| 8 | 517304820 | Console |
| 9 | 517304318 | Insulator |
| 10 | 517304317 | INSULATOR - Call your local BRP dealership |
| 11 | 517304826 | White, RH Upper Side Panel |
| 12 | 517304015 | RH Access Panel Grill |
| 13 | 517304016 | RH Lower Acces Grill |
| 14 | 517304837 | White, LH Upper Side Panel |
| 15 | 517303893 | LH Access Panel Grill |
| 16 | 517304311 | Insulator |
| 17 | 517304312 | Insulator |
| 18 | 517304313 | Insulator |
| 19 | 517306970 | Black, RH Side Panel This part replaces 517304866. |
| 20 | 517303890 | Isolation R.H. |
| 21 | 517304310 | RH Rear Foam |
| 22 | 517306973 | Black, LH Side Panel This part replaces 517304869. |
| 23 | 517304707 | Foam LH |
| 24 | 517304309 | LH Rear Foam |
| 25 | 517304297 | Handle Fastener Quarter-Turn |
| 26 | 517304296 | Quarter-Turn Handle |
| 27 | 517304538 | Locking Plate |
| 28 | 517304497 | Side Panel Support |
| 29 | 36005 | Rivet |
| 30 | 860200239 | Latch Kit, Black |
| 31 | 517306057 | Latch-Panel This part replaces 517304573. |
| 32 | 517304272 | Indicator Support |
| 33 | 517304315 | Insulator |
| 34 | 517304316 | Insulator |
| 35 | 517304319 | Insulator |
