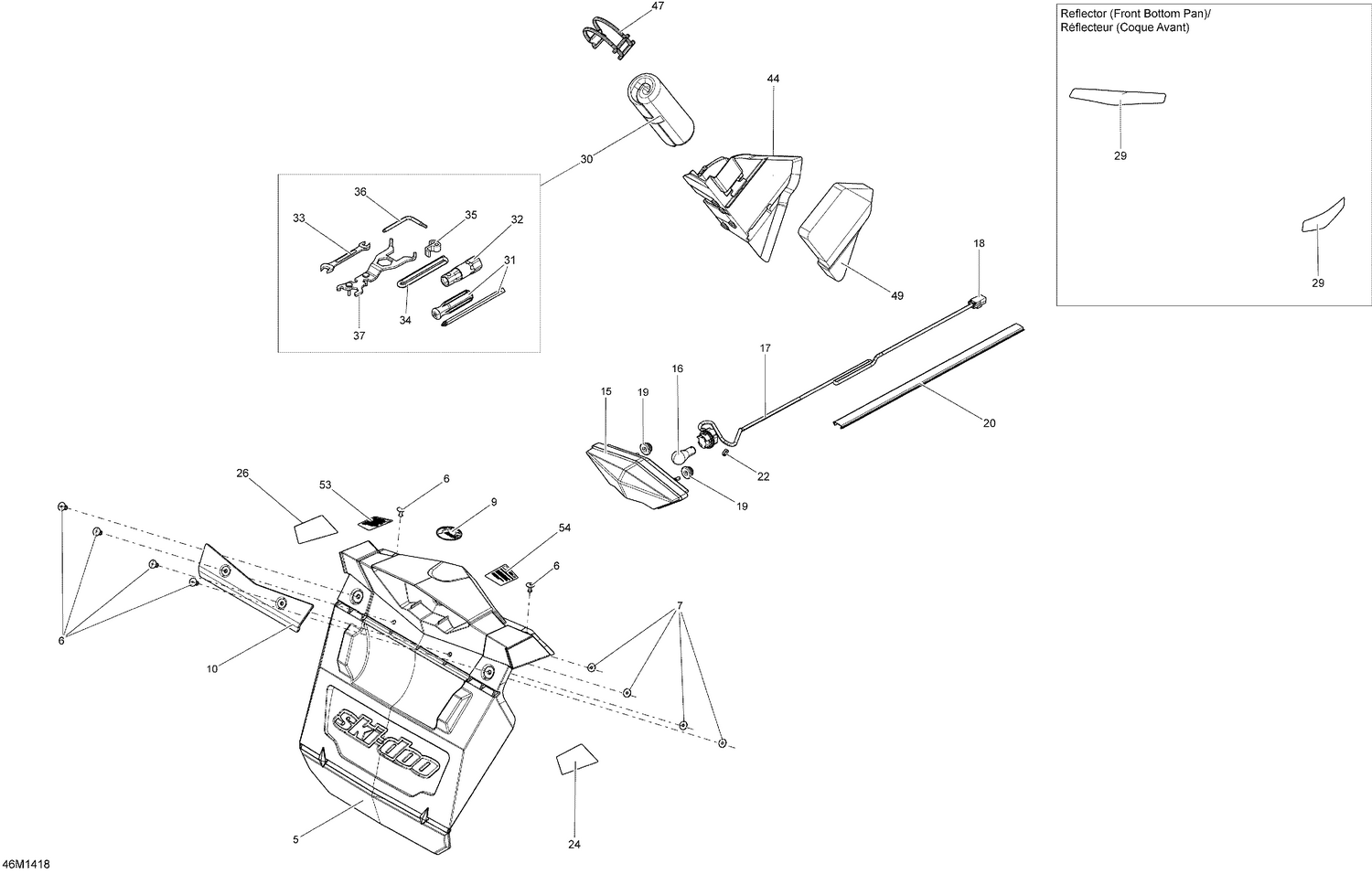

09- Utilities — Parts Catalog

Ref	Part Number	Description
5	520001377	Snow Guard
6	293150108	Pop Rivet 3/16” This part replaces 293150108.
7	517124300	Washer
9	219903947	BRP Logo 48 mm
10	520000751	Reinforcement
16	520000758	Bulb
18	515175494	Male Housing, 3 Circuits
19	705014429	Rubber Stopper This part replaces 705003666.
20	520000829	Radiator Trim
22	293750002	Tie Wrap 142 mm
29	520001234	YELLOW FRONT REFLECTOR XR - Call your local BRP dealership
31	529000004	SCREWDRIVER - Call your local BRP dealership
32	529000046	Set Key, 16/21 mm
33	529000002	FORK WRENCH, 10/13 MM - Call your local BRP dealership
34	219704403	Was 412500100 Rope-Starter
35	529000060	Starter Grip
36	520001142	Spacing Tool
37	520000988	WRENCH SUSPENSION - Call your local BRP dealership
44	520000720	TOOL KIT RACK - Call your local BRP dealership
47	520000528	Latch
49	520001060	FOAM - Call your local BRP dealership
53	516005590	WARNING DECAL, TRACK - Call your local BRP dealership
