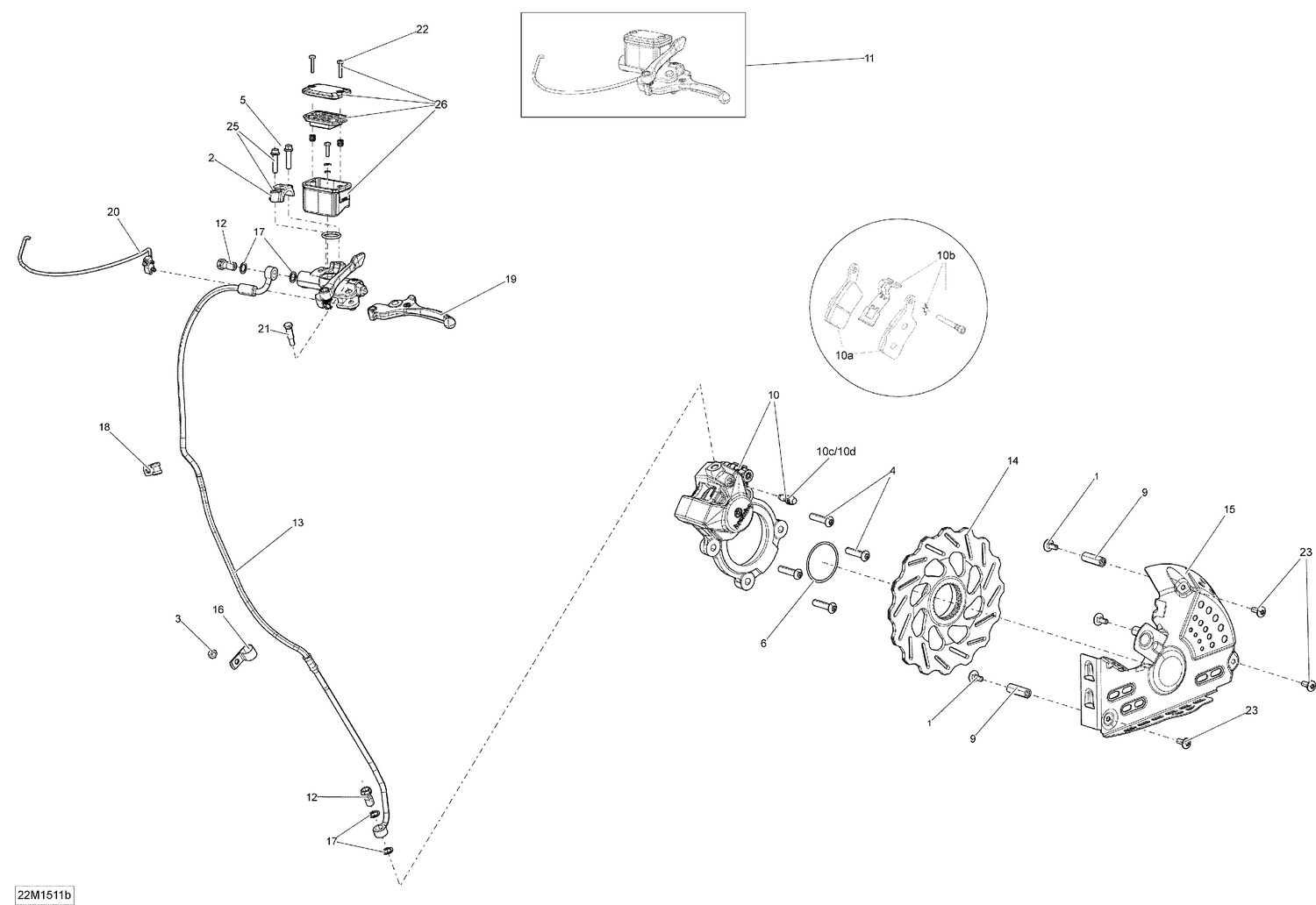

06- Hydraulic Brakes T3-163-174_22M1511b
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207761644 | Carriage Bolt M6 X 1.0 X 16 |
| 2 | 719000049 | Clamps This part replaces 219800081. |
| 3 | 232561434 | Elastic Stop Nut M6 |
| 4 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. |
| 5 | 250000447 | Hex. Flange Screw M6 X 25 |
| 6 | 293300134 | O-Ring |
| 9 | 507032497 | Threaded Tube |
| 10a | 507032473 | Brake Pads Kit |
| 10b | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 10c | 507032475 | Bleeder |
| 10d | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 11 | 507032596 | Master Cylinder Ass. This part replaces 507032529. |
| 12 | 507032551 | Banjo Bolt |
| 13 | 507032552 | HOSE - Call your local BRP dealership |
| 14 | 507032554 | Disk |
| 15 | 507032557 | DISK PROTECTOR - Call your local BRP dealership |
| 16 | 518321570 | Open Clamp |
| 17 | 705601628 | Copper Washer This part replaces 705600310. |
| 18 | 293650256 | Clamp This part replaces 705600459. |
| 19 | 507032476 | Lever With Parking Lock |
| 20 | 507032479 | Microswitch |
| 21 | 415030000 | Pin Ass'y |
| 22 | 415129356 | Screw M4 X 20 |
| 23 | 250000365 | Torx Screw M6 X 16 |
| 25 | 507032477 | Clamp And Screw Kit |
