Parts Catalog

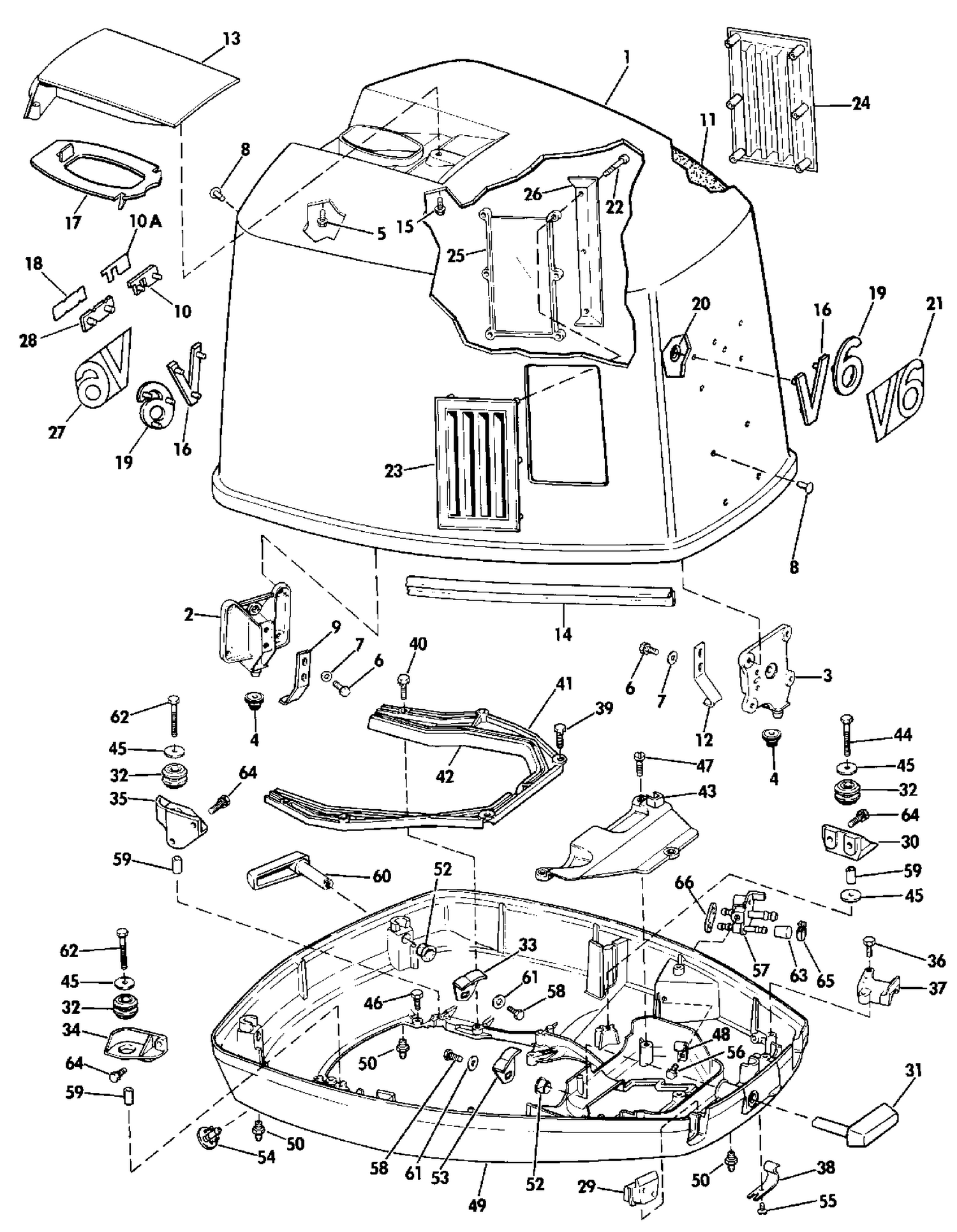

ENGINE COVER - JOHNSON

Parts (50)

Ref	Part Number	Description
1	0397778	ENGINE COVER ASSY.
1	0431727	ENGINE COVER ASSY.
2	0394976	LOCATING BRACKET, Rear
3	0389971	LOCATING BARCKET, Front
10	0330456	APPLIQUE GT, rear
10A	0333143	PLATE, GT rear
11	0321256	SOUND BLANKET, Top
12	0323175	HOOK , Motor Cover, Front
14	0328686	SEAL, Engine cover This part replaces 0326508.
16	0330413	APPLIQUE, Front & rear
18	0332750	PLATE, Rear
19	0330410	APPLIQUE, Front & rear
21	0332749	PLATE, Applique
23	0329736	LOUVER, Engine cover, stbd
24	0329735	LOUBER, Engine cover, port
25	0329737	BAFFLE, 175STL
26	0329866	BRACKET, Louver mtg
27	0332749	PLATE, Applique
28	0330458	APPLIQUE, 150 Rear
29	0320834	GROMMET
30	0315111	SUPPORT, Front
31	0395757	LATCH HANDLE ASSY., Front
32	0316354	ENGINE COVER SUPPORT GROMMET
33	0323169	HOOK, Lower rear port
34	0315113	SUPORT, Stbd, rear
35	0315112	SUPPORT, Port rear
36	0307151	SCREW
37	0318849	CLAMP, Instrument cable
38	0333739	RETAINER, Fuel hose to cover This part replaces 0329610.
39	0328695	CLAMP, Engine cable
41	0392494	FRAME AND SEAL ASSY
42	0318258	SEAL Cover
43	0328358	COVER ASSY. Air entrance
44	0303398	VIS, support
46	0328695	CLAMP, Engine cable
47	0328695	CLAMP, Engine cable
49	0434288	ENGINE COVER, Lower This part replaces 0396791.
53	0323170	HOOK Front and stbd., rear
54	0321885	NIPPLE
55	0310539	SCREW, Clamp choke solenoid
56	0908159	SCREW, Bearing clamp This part replaces 0328728.
57	0394309	FUEL CONNECTOR
58	0304027	VIS, arbre de commande de sens de marche
59	0302406	SLEEVE
60	0395758	LATCH HANDLE ASSY., Rear
62	0303398	VIS, support
64	0328695	CLAMP, Engine cable
66	0331533	JOINT, conn. carburant vers capot inférieur
0397513	0397513	DECAL SET
0397776	0397776	OWNER'S MANUAL
