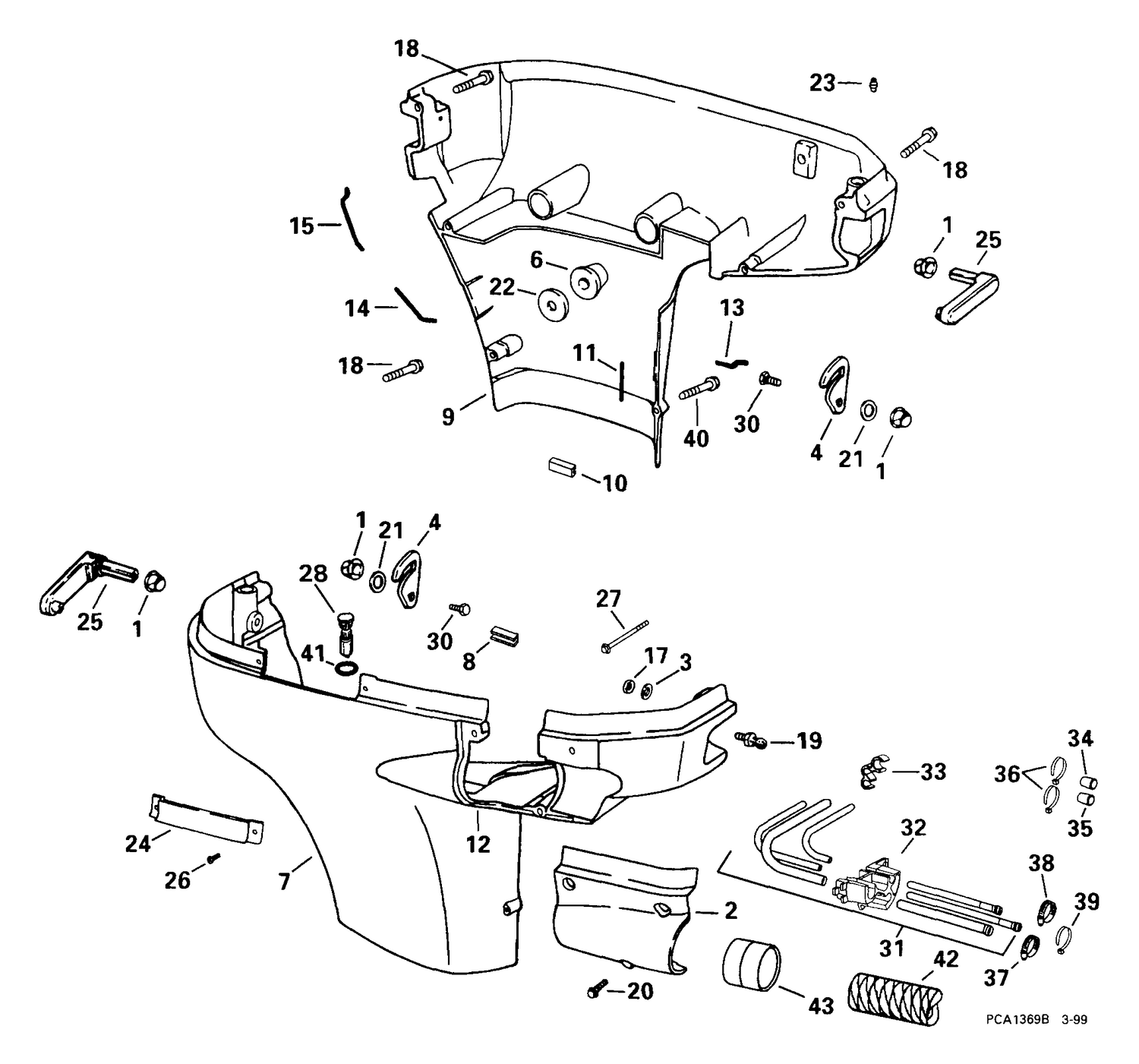

| Ref | Part Number | Description |
|---|
| 2 |
0341913 |
COVER, Cable entry |
| 6 |
0349557 |
MOUNT This part replaces 0328584. |
| 7 |
5006414 |
COVER Assy, Lower - Stbd This part replaces 0438488. |
| 9 |
5004759 |
COVER Assy, Lower- Port This part replaces 0438487. |
| 11 |
SEAL, |
Engine cover, front, lower |
| 12 |
SEAL, |
Engine cover, cable entry |
| 13 |
SEAL, |
Engine cover, front, upper |
| 14 |
SEAL, |
Engine cover, rear, lower |
| 15 |
SEAL, |
Engine cover, rear, upper |
| 18 |
0325115 |
SCREW, Oil tank/EMM mount |
| 22 |
0320248 |
RONDELLE, écrou |
| 22 |
0349556 |
Washer This part replaces 0329749. |
| 27 |
0317972 |
ACREW,Exh manf to cyl.,4-1/4" long |
| 31 |
0438935 |
TUBE ASSY. FUEL & OIL |
| 35 |
0331649 |
CAP, Connector - fuel |
| 36 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 37 |
0340328 |
CLAMP |
| 38 |
0343765 |
COLLIER, flexible d'indicateur d’éjection |
| 39 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 42 |
0343912 |
Braided Sleeve Max Dia. (in.) 1.75 |
