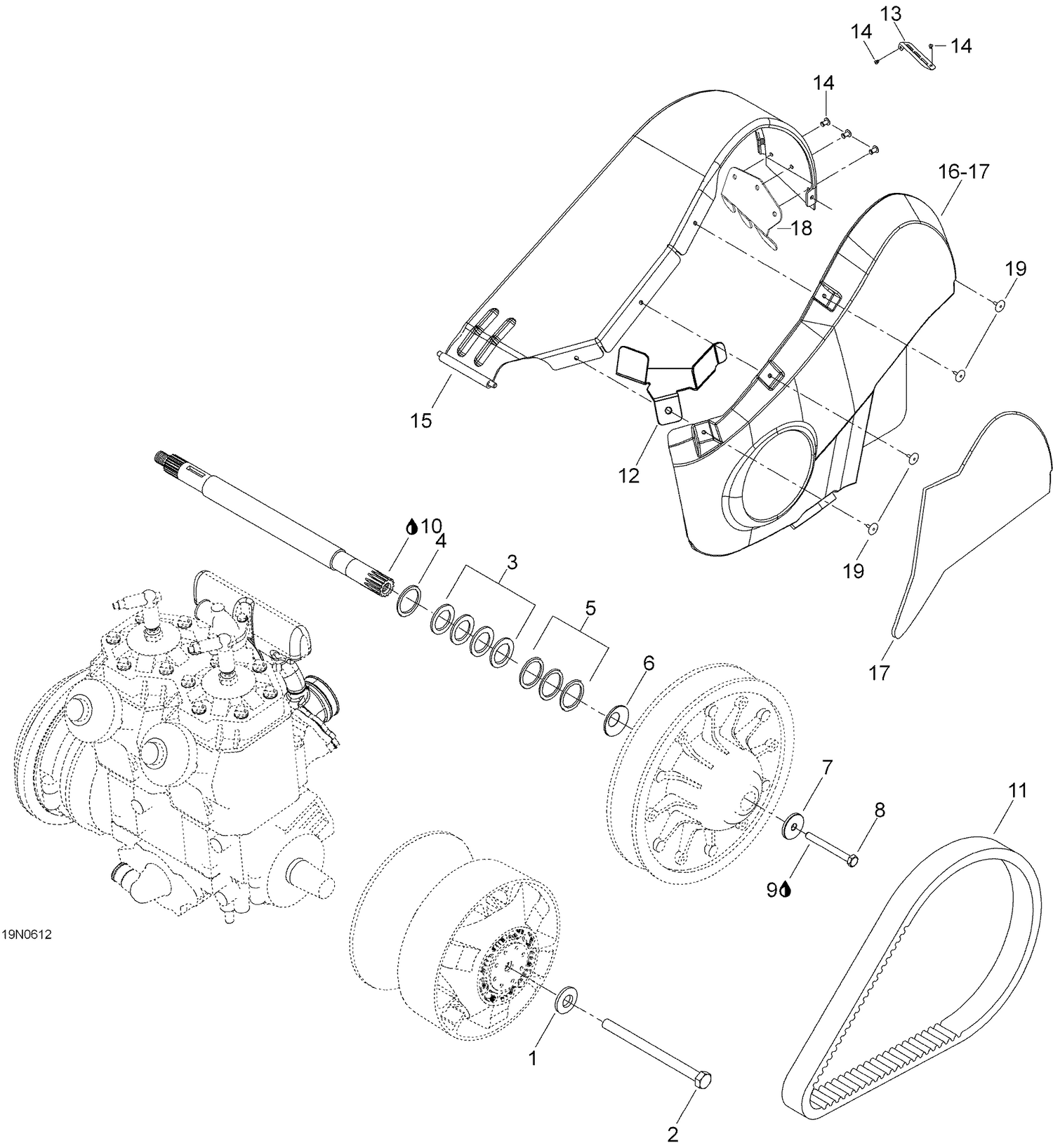

| Ref | Part Number | Description |
|---|
| 1 |
20110 |
Jousialusl. kartiom. M14 M14 D |
| 2 |
417120000 |
Kytkimen kiinn. pultti M14 |
| 3 |
417300252 |
Spacer This part replaces 417300231. |
| 4 |
417300265 |
Spacer This part replaces 417300054. |
| 5 |
504112000 |
Justering bricka |
| 6 |
417300238 |
PROTECTOR - Call your local BRP dealership |
| 7 |
517302322 |
Vahvike aluslevy |
| 8 |
40089 |
M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 9 |
293800060 |
Liima Loctite 243, 10ml |
| 10 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 11 |
417300551 |
Drive Belt This part replaces 417300166. |
| 12 |
605352707 |
Support, air intake silencer |
| 13 |
518323105 |
PLATE, BLACK - Call your local BRP dealership |
| 14 |
36108 |
Rivet steel 4.8x8 ZN bright |
| 15 |
417300213 |
BELT GUARD - Call your local BRP dealership |
| 17 |
417300246 |
Stoppning |
| 18 |
605453799 |
Hihnansuojan kiinnike |
