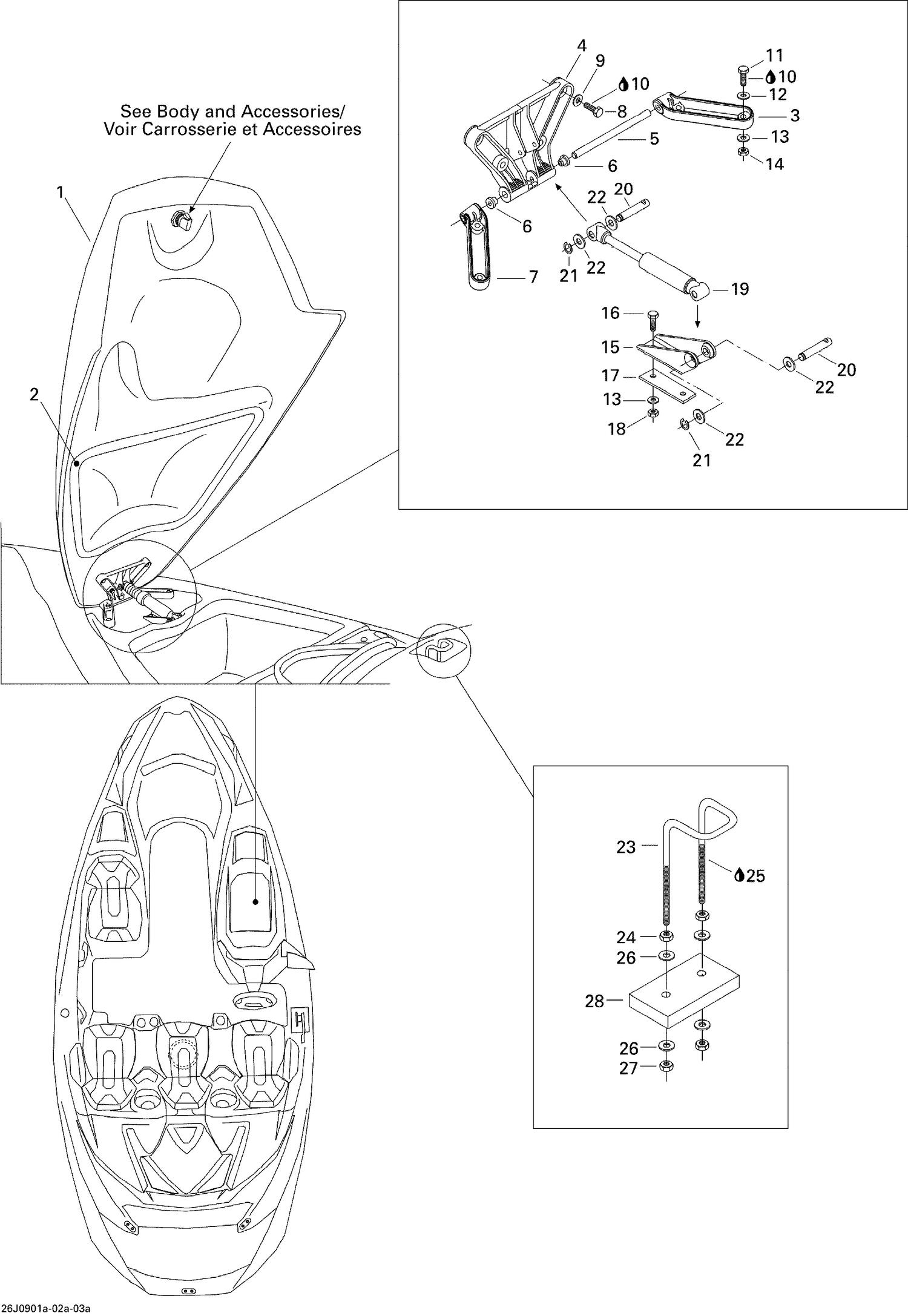

09- Storage Compartment, Front 1
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 219704368 | Seal Tray 1000Mm Long |
| 3 | 269700022111 | RH HINGE - Call your local BRP dealership |
| 4 | 269700038 | COVER HINGE - Call your local BRP dealership |
| 5 | 269700024 | AXLE - Call your local BRP dealership |
| 6 | 293350016 | CUSHION - Call your local BRP dealership |
| 7 | 269700023111 | LH HINGE - Call your local BRP dealership |
| 8 | 207162560 | Hex. Screw M6 X 25 |
| 9 | 234061600 | Stainless Flat Washer M6 |
| 10 | 293800060 | Loctite 243, 10 ml |
| 11 | 207063560 | Hex. Screw M6 X 35 |
| 12 | 234061600 | Stainless Flat Washer M6 |
| 13 | 234062600 | Flat Washer M6, Stainless |
| 14 | 232561600 | Hex. Elastic Stop Nut M6 |
| 15 | 291000855 | SHOCK SUPPORT - Call your local BRP dealership |
| 16 | 207162560 | Hex. Screw M6 X 25 |
| 17 | 291000079 | REINFORCEMENT PLATE - Call your local BRP dealership |
| 18 | 232561600 | Hex. Elastic Stop Nut M6 |
| 19 | 269501993 | Shock-Gas This part replaces 204620322. |
| 20 | 211400006 | SHORT PIN - Call your local BRP dealership |
| 21 | 293370008 | CIRCLIP - Call your local BRP dealership |
| 22 | 234081600 | Stainless, Flat Washer 8 mm |
| 23 | 204620326 | HOOK - Call your local BRP dealership |
| 24 | 232061600 | Hex. Nut M6 |
| 25 | 293800060 | Loctite 243, 10 ml |
| 26 | 234062600 | Flat Washer M6, Stainless |
| 27 | 232561600 | Hex. Elastic Stop Nut M6 |
