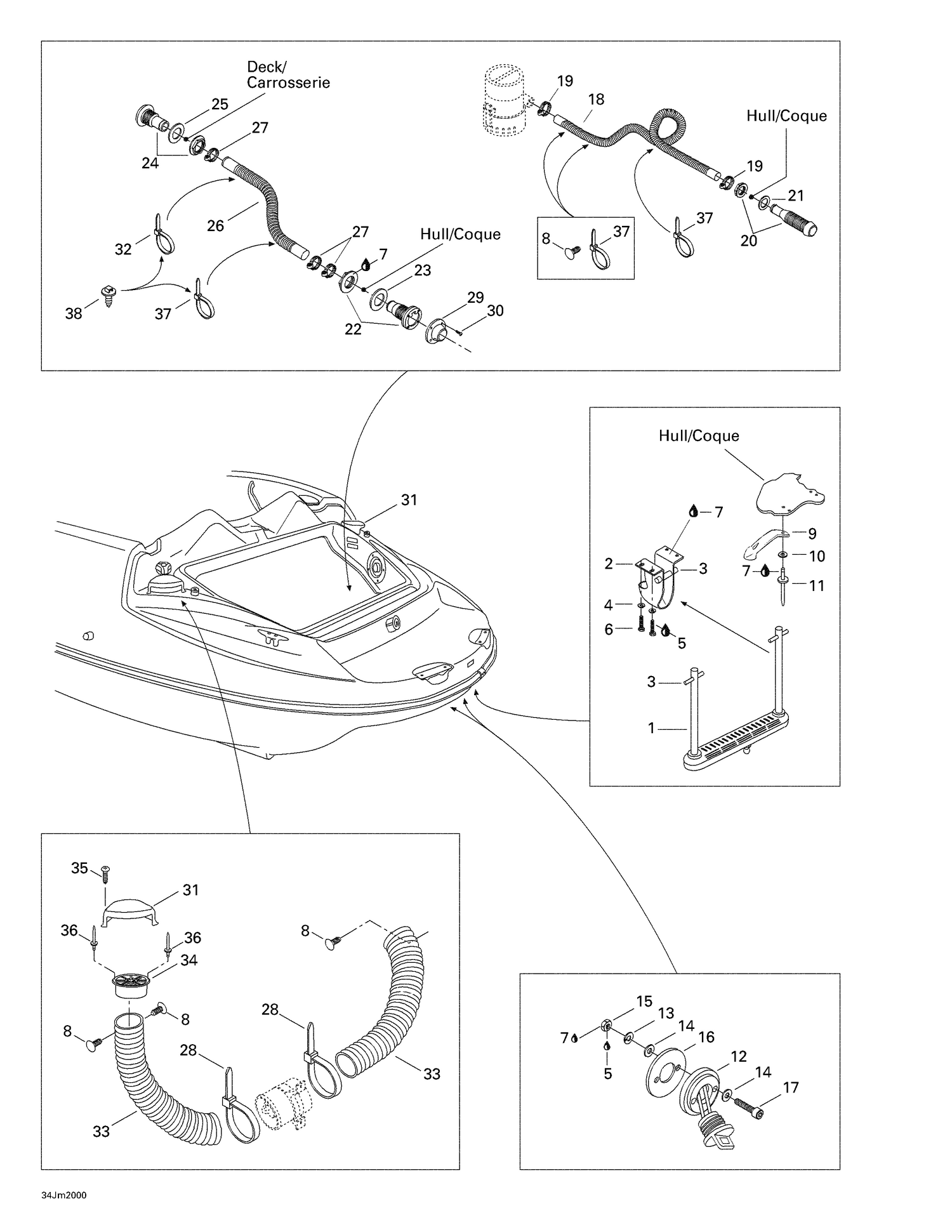

| Ref | Part Number | Description |
|---|
| 1 |
204060187 |
LADDER - Call your local BRP dealership |
| 2 |
204060141 |
U-BRACKET - Call your local BRP dealership |
| 3 |
211300021 |
ROLL PIN M8 X 55 - Call your local BRP dealership |
| 4 |
234161601 |
Lock Washer Helical M6 |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
207162560 |
Hex. Screw M6 X 25 |
| 7 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 8 |
293730006 |
Black, Dart |
| 9 |
570027100 |
Hood Latch |
| 10 |
234052600 |
Flat Washer 5 mm, Stainless |
| 11 |
293150013 |
Pop Rivet 3/16" |
| 12 |
292000187 |
Drain Plug |
| 13 |
234141601 |
Lock Washer 4 mm |
| 14 |
234040600 |
Flat Washer 4 mm |
| 15 |
232041600 |
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership |
| 16 |
293250030 |
GASKET - Call your local BRP dealership |
| 17 |
205043060 |
Socket Screw M4 X 30 |
| 18 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership This part replaces 204050299. |
| 19 |
293650016 |
Tridon Clamp |
| 20 |
293710162 |
Fitting This part replaces 293710015. |
| 21 |
293250006 |
GASKET - Call your local BRP dealership |
| 22 |
204060071 |
THRU HULL FITTING - Call your local BRP dealership |
| 23 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 24 |
293710060 |
FITTING - Call your local BRP dealership |
| 25 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 26 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership |
| 27 |
293650074 |
Norma Clamp |
| 28 |
293750019 |
Tie Rap |
| 29 |
204060188 |
SCUPPER VALVE - Call your local BRP dealership |
| 30 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 31 |
204050227 |
Clam Shell Vent |
| 32 |
293750008 |
Tie Wrap 368 mm |
| 33 |
219704358 |
Was 204050122 Vent Hose 4" |
| 34 |
204050160 |
Vent Adaptor |
| 35 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 36 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 37 |
414115200 |
Tie-Rap 180 mm |
