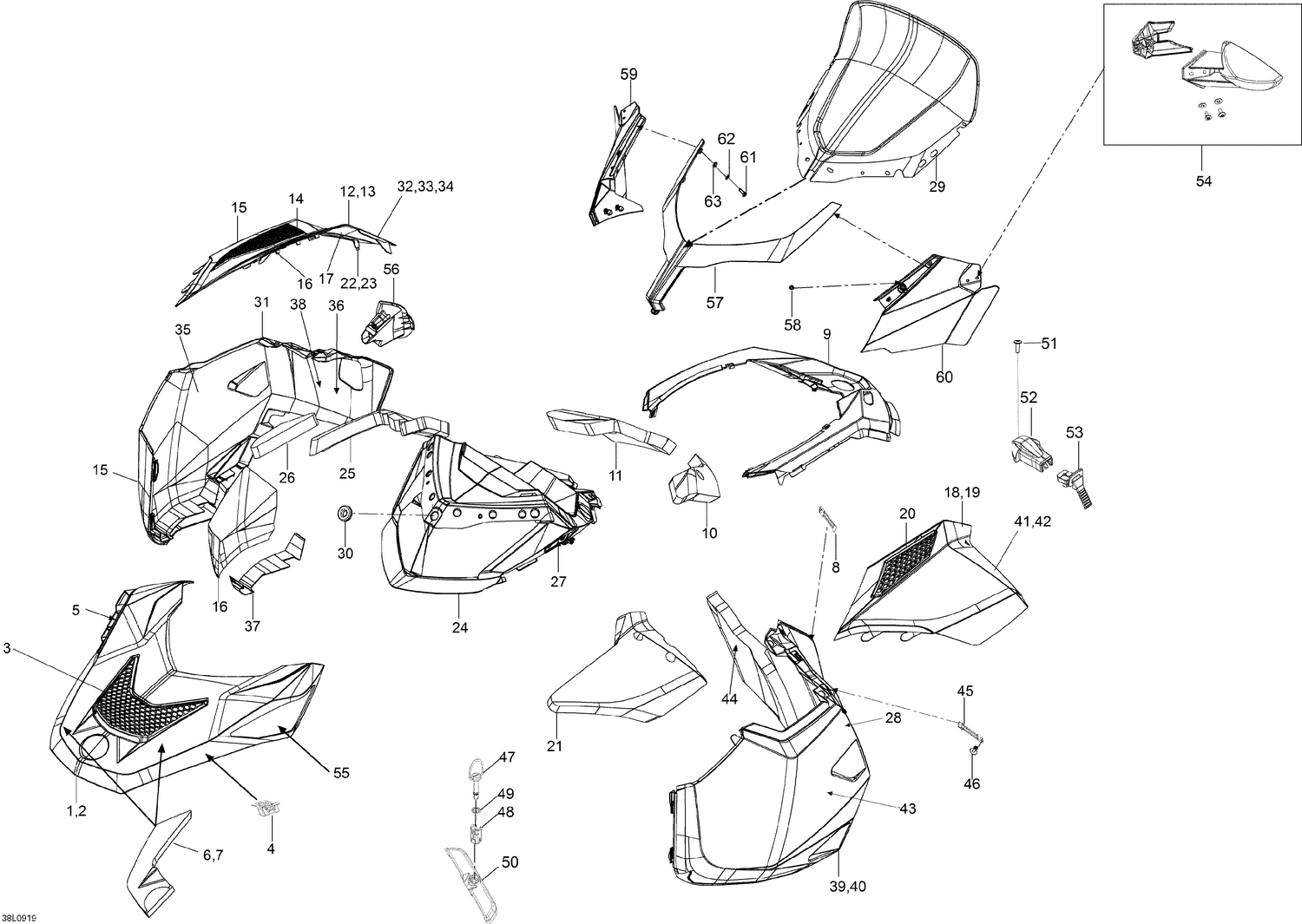

09- Hood
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 517304812 | Black, Hood This part replaces 517303889. |
| 3 | 517304843 | Hood Grille This part replaces 517303892. |
| 4 | 517302785 | Edge Clip |
| 5 | 517306980 | Scoop Grille This part replaces 517304155. |
| 6 | 517304330 | Insulator |
| 7 | 517304214 | Insulator |
| 8 | 517304289 | Latch Pannel |
| 9 | 517304819 | Console This part replaces 517304026. |
| 10 | 517304317 | INSULATOR - Call your local BRP dealership |
| 11 | 517304318 | Insulator |
| 13 | 517304193 | Black RH Side Access Panel |
| 14 | 517304015 | RH Access Panel Grille |
| 15 | 517304016 | RH Lower Acces Grille |
| 16 | 517304311 | Insulator |
| 17 | 517304312 | Insulator |
| 19 | 517304191 | Black LH Side Access Panel |
| 20 | 517303893 | LH Access Panel Grille |
| 21 | 517304313 | Insulator |
| 22 | 517304295 | ADAPTER - Call your local BRP dealership |
| 23 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 24 | 517304272 | Indicator Support |
| 25 | 517304314 | Insulator |
| 26 | 517304315 | Insulator |
| 27 | 517304316 | Insulator |
| 28 | 517304319 | Insulator |
| 29 | 860201000 | Windshield Ass'y This part replaces 517304287. |
| 30 | 517303756 | Grommet |
| 32 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 33 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 34 | 517124300 | Washer |
| 35 | 517303890 | RH Foam |
| 36 | 517304310 | RH Rear Foam |
| 37 | 517304215 | Aluminium Foil |
| 38 | 517304216 | Aluminium Foil |
| 39 | 517303851 | LH Side Panel Ass. |
| 40 | Not | Available As Spare Part - RH Side Panel Ass. |
| 41 | 506152156 | Bushing |
| 42 | 517124300 | Washer |
| 43 | 517303891 | LH Foam |
| 44 | 517304309 | LH Rear Foam |
| 45 | 517304290 | Latch Panel |
| 46 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 47 | 517304297 | Handle Fastener Quarter-Turn |
| 48 | 517304296 | Quarter-Turn Handle |
| 49 | 517304298 | LOCKING PLATE - Call your local BRP dealership |
| 50 | 517304294 | SIDE PANEL SUPPORT - Call your local BRP dealership |
| 51 | 36005 | Rivet |
| 52 | 860200239 | Black Latch Kit |
| 53 | 517303981 | Panel Latch |
| 54 | 517305787 | RH/LH Mirror Ass'y This part replaces 517303894. |
| 55 | 508000609 | Air Filter |
| 56 | 517304322 | Black, RH Console |
| 57 | 860200230 | Windshield Support Kit This part replaces 517303744. |
| 58 | 732610072 | Push Nut |
| 59 | 517303745 | RH Console Air Deflector |
| 60 | 517303746 | LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership |
| 61 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 62 | 250200025 | Washer M5 |
