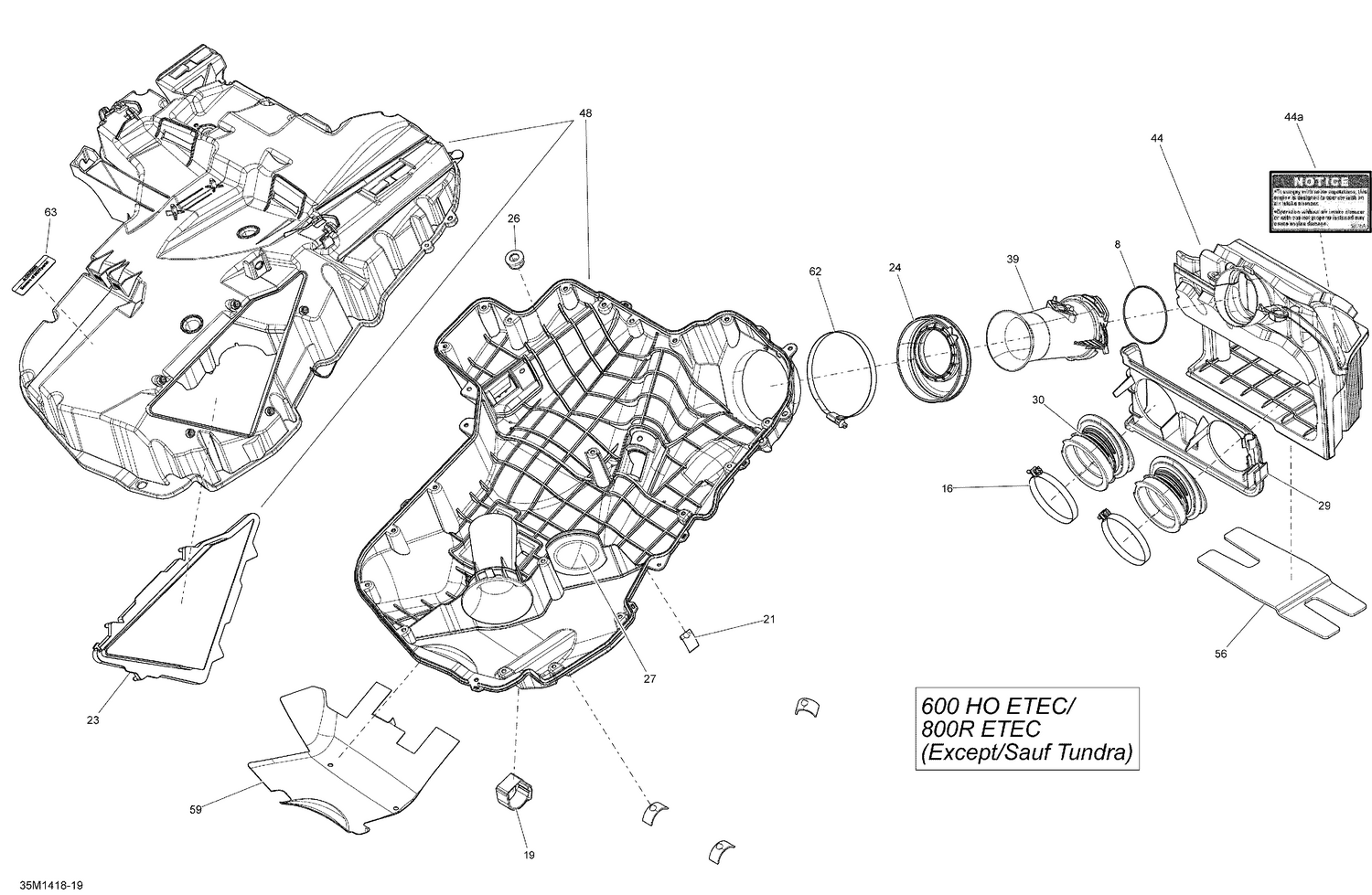

02- Air Intake System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 293300115 | O-Ring |
| 16 | 508000346 | Gemi Clamp |
| 19 | 508000820 | Velcro Strip This part replaces 508000532. |
| 21 | 508000537 | Stopper |
| 23 | 508000546 | Air Filter |
| 24 | 508000548 | Boot |
| 26 | 508000574 | Grommet |
| 27 | 508000590 | Cap |
| 29 | 508000613 | Plate Adapter |
| 30 | 508000614 | Air Intake Adapter |
| 39 | 508000662 | Flute |
| 44 | 508000660 | Primary Chamber Ass'y |
| 48 | 508000779 | SECONDARY CHAMBER ASS'Y - Call your local BRP dealership This part replaces 508000695. |
| 56 | 508000739 | Insulated Foam |
| 59 | 508000793 | HEAT SHIELD - Call your local BRP dealership This part replaces 508000775. |
| 62 | 514052983 | Norma Gear Clamp |
| 63 | 516005280 | Caution Decal Hot Parts |
