Home / BRP / 2012 / Expedition / Expedition SE 600HOETEC XU, 2012 000SGCB00 000SGCE00 / 01- 3D Rave

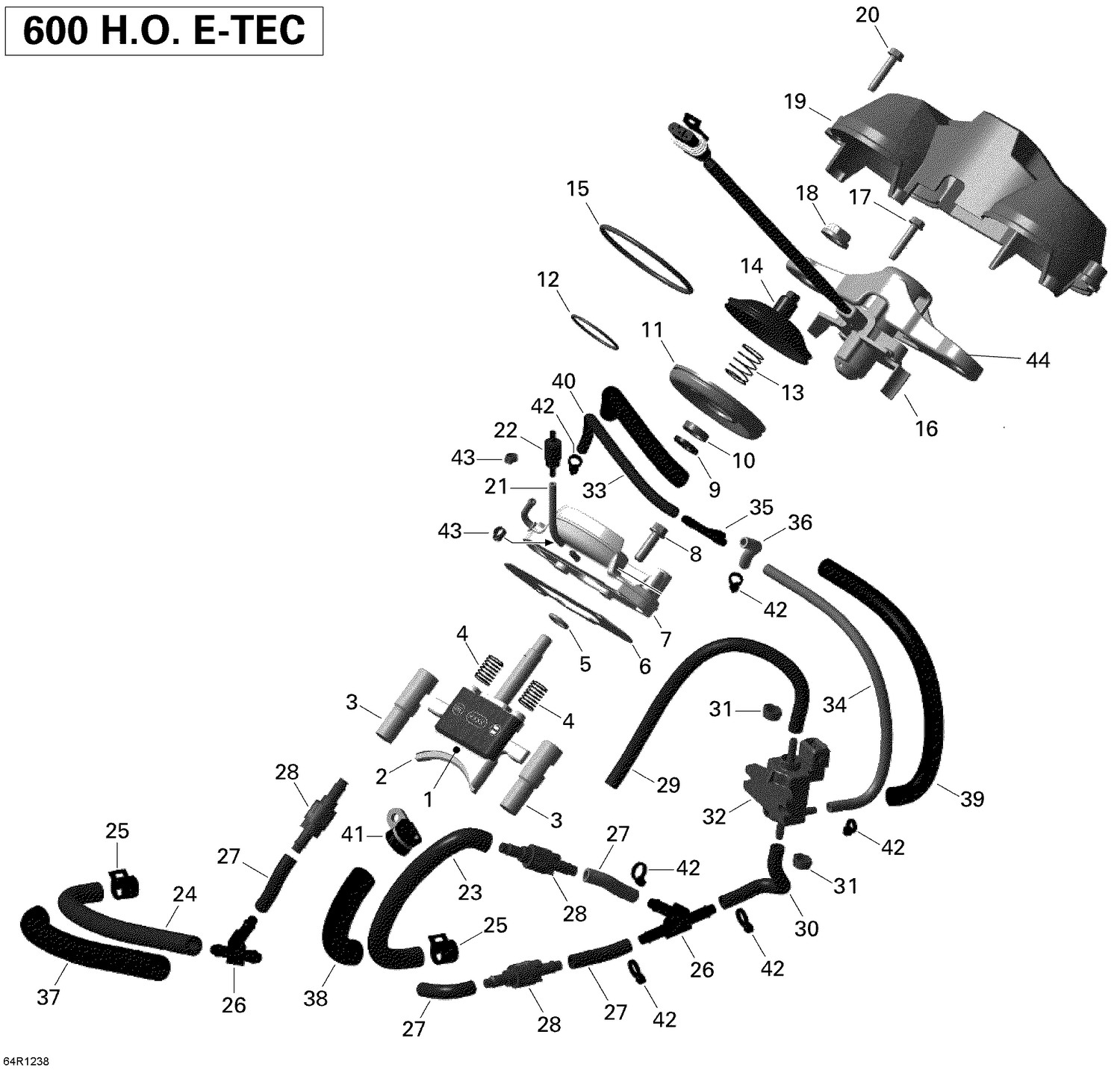

01- 3D Rave

01- 3D Rave

Parts (43)

RefPart NumberDescription
1 420854980 Exhaust Valve, Upper
2 420854974 Exhaust Valve, Lower This part replaces 420854973.
3 420854990 Exhaust Valve
4 420238558 Spring This part replaces 420238556.
5 420931765 O-Ring
6 420430032 Gasket
7 420854888 Valve Housing
8 420440207 Torx Flange Screw M6 X 20
9 420431380 Gasket Ring
10 420950732 Oil Seal This part replaces 420950730.
11 420260725 Bellows
12 420939286 Hose Spring This part replaces 420939285.
13 420238557 Spring
14 420854442 Valve Cover
15 420838255 Hose Spring
16 420854089 Position Sensor This part replaces 420854088.
17 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
18 420942190 Nut M12 X 1.5
19 420910821 Cover This part replaces 420910820.
20 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
21 219704404 Oil Hose 1500Mm Long
22 420956515 Check Valve Ass’y
23 420460782 MOLDED HOSE - Call your local BRP dealership
24 420460782 MOLDED HOSE - Call your local BRP dealership
25 293650214 Norma Spring Clamp
26 293710059 Y-Fitting
27 420460851 HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership
28 420660543 Check Valve
29 219704410 Polyurethane Hose 10000Mm Long
30 420460852 HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership
31 420853658 Gear Clamp
32 270600005 Solenoid Valve
33 420660571 High Pressure Air Hose, 180 mm
34 420660575 HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership
35 293710068 T-Fitting
36 420660572 HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership
37 219704400 Was 409901800 Tubing (13 mm)
38 219704400 Was 409901800 Tubing (13 mm)
39 219704407 Tubing 10 MM 1000MM Long
40 219704407 Tubing 10 MM 1000MM Long
41 420851250 Clamp
42 293750001 Tie Wrap 94 mm
43 420851508 Clamp
