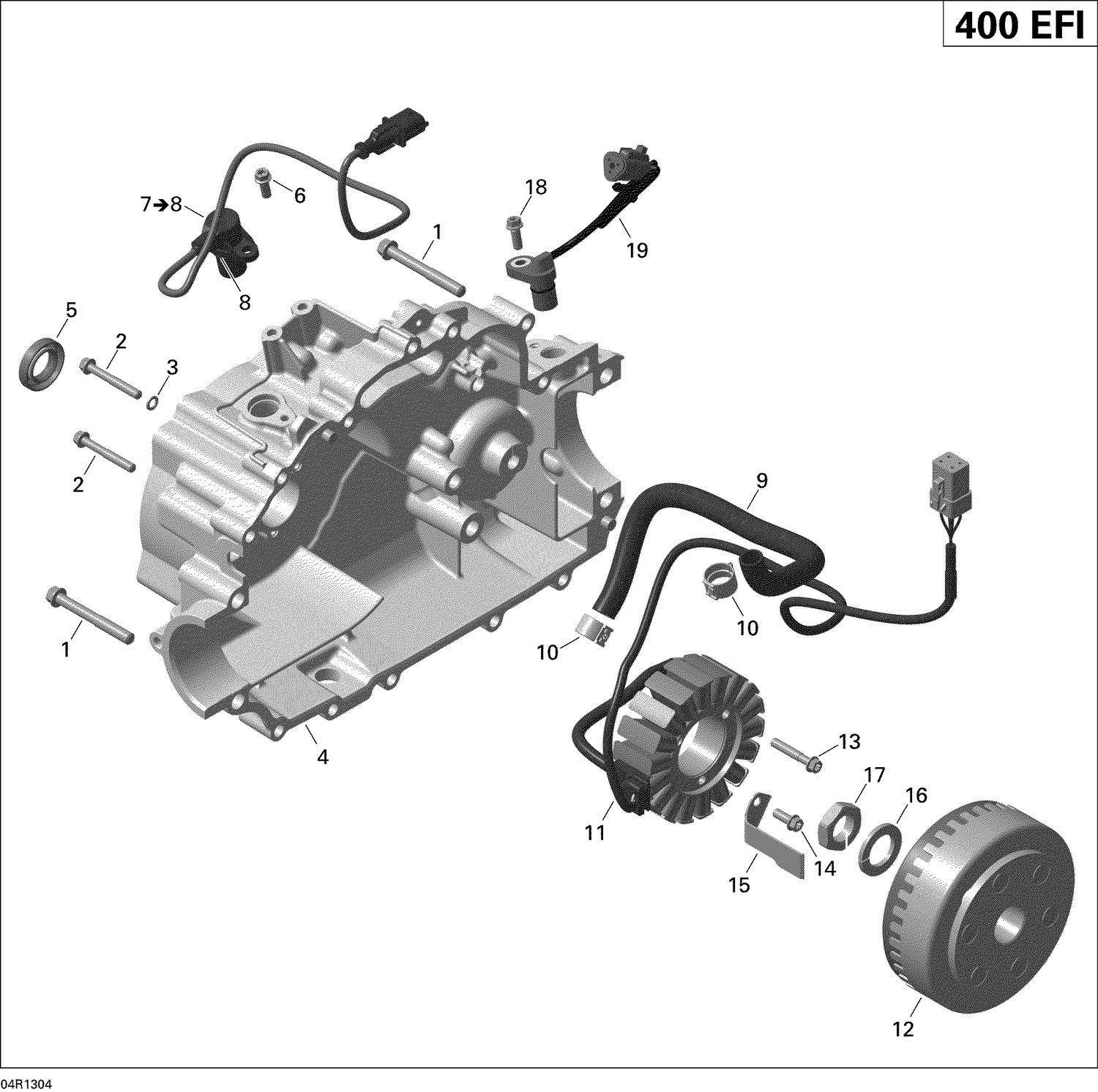

03- Magneto
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420440402 | Torx Flange Screw M8 X 65 |
| 2 | 420440324 | Torx Flange Screw M6 X 45 |
| 3 | 420230415 | Seal Washer |
| 4 | Not | Available As Spare Part - Magneto Cover |
| 5 | 420930392 | Oil Seal |
| 6 | 420440162 | Torx Flange Screw M6 X 16 |
| 8 | 420431580 | O-Ring |
| 9 | Not | Available As Spare Part - Tube |
| 10 | 420960892 | CLIP - Call your local BRP dealership |
| 11 | 420685920 | Stator Plate, 420W This part replaces 420296907. |
| 12 | 420296903 | MAGNETO FLYWHEEL - Call your local BRP dealership |
| 13 | 420440274 | Torx Flange Screw M6 X 35 |
| 14 | 420440162 | Torx Flange Screw M6 X 16 |
| 15 | 420251270 | Inner Cable Cover |
| 16 | 420945759 | Lock Washer, 22 mm |
| 17 | 420842239 | Hex. Nut, M22 X 1.5 |
| 18 | 420440162 | Torx Flange Screw M6 X 16 |
