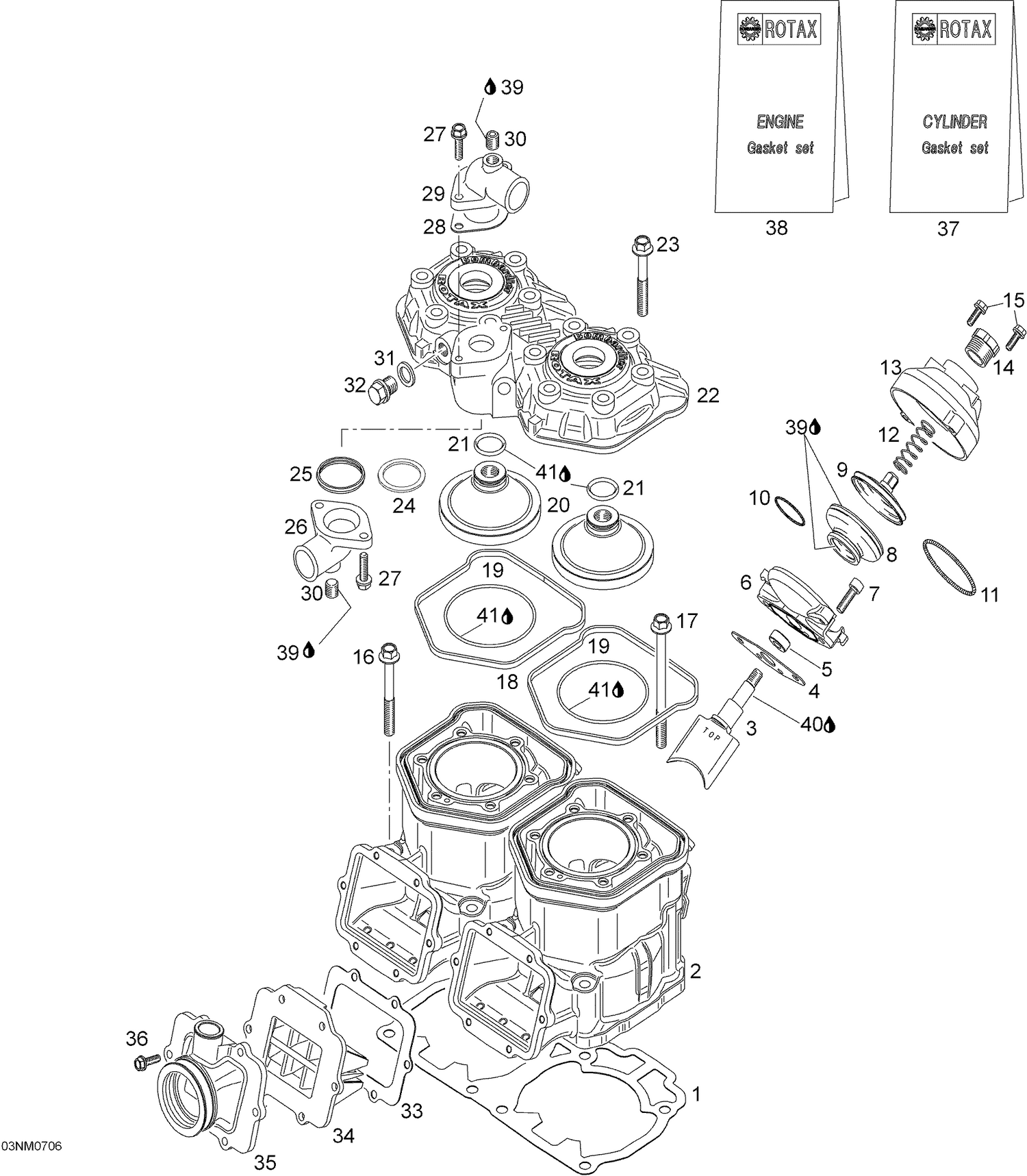

| Ref | Part Number | Description |
|---|
| 1 |
420431420 |
Joint *Gasket 0.5Mm This part replaces 420931583. |
| 1 |
420431421 |
Joint *Gasket 0.6Mm This part replaces 420931582. |
| 1 |
420431422 |
Joint *Gasket 0.7Mm This part replaces 420931962. |
| 1 |
420431423 |
Double Gasket 0.8 mm This part replaces 420931584. |
| 1 |
420931580 |
DOUBLE GASKET 0.3 MM - Call your local BRP dealership |
| 1 |
420931581 |
GASKET 0.4 MM - Call your local BRP dealership |
| 2 |
420923720 |
NICASIL CYLINDER - Call your local BRP dealership |
| 3 |
420854480 |
EXHAUST VALVE - Call your local BRP dealership |
| 4 |
420250238 |
GASKET - Call your local BRP dealership |
| 5 |
420950732 |
Oil Seal This part replaces 420950730. |
| 6 |
420854266 |
Valve rod housing |
| 7 |
205062044 |
Socket head screw M6 x 20 This part replaces 420241930. |
| 8 |
420260723 |
Bellows |
| 9 |
420854449 |
Exhaust valve piston |
| 10 |
420838255 |
Hose spring |
| 11 |
420939281 |
Hose Spring This part replaces 420939280. |
| 12 |
420239948 |
SPRING - Call your local BRP dealership |
| 13 |
420911552 |
Valve cover |
| 14 |
420241221 |
Adjuster screw This part replaces 420241220. |
| 15 |
420841555 |
Screw M5 x 20 |
| 16 |
420640959 |
Collar Hex Screw M8 X 68.5 This part replaces 420640951. |
| 17 |
420940129 |
SCREW HEX. M8 X 100 - Call your local BRP dealership |
| 18 |
420931595 |
SQUARE RING - Call your local BRP dealership |
| 19 |
420950490 |
O-ring |
| 20 |
420923877 |
COMBUSTION CHAMBER - Call your local BRP dealership |
| 21 |
420430373 |
O-Ring This part replaces 420430370. |
| 22 |
420923734 |
Cylinderhead, red |
| 23 |
420240326 |
Screw M8 x 53,5 |
| 24 |
420927745 |
RETAINING DISK - Call your local BRP dealership |
| 25 |
420931272 |
Thermostat gasket |
| 26 |
420922061 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 27 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 28 |
420850339 |
Gasket This part replaces 420850338. |
| 29 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 30 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 31 |
420250016 |
Aluminum Sealing Ring This part replaces 420250015. |
| 32 |
420841924 |
Plug Screw M12 X 1.5 This part replaces 420841921. |
| 33 |
420630810 |
GASKET - Call your local BRP dealership |
| 34 |
420924810 |
REED VALVE - Call your local BRP dealership |
| 35 |
420667078 |
INTAKE SOCKET - Call your local BRP dealership |
| 36 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 37 |
420888637 |
GASKET CYLINDER KIT - Call your local BRP dealership |
| 38 |
420888633 |
GASKET ENGINE KIT - Call your local BRP dealership |
| 39 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
| 40 |
420297433 |
Molykote slide paste This part replaces 711297433. |
