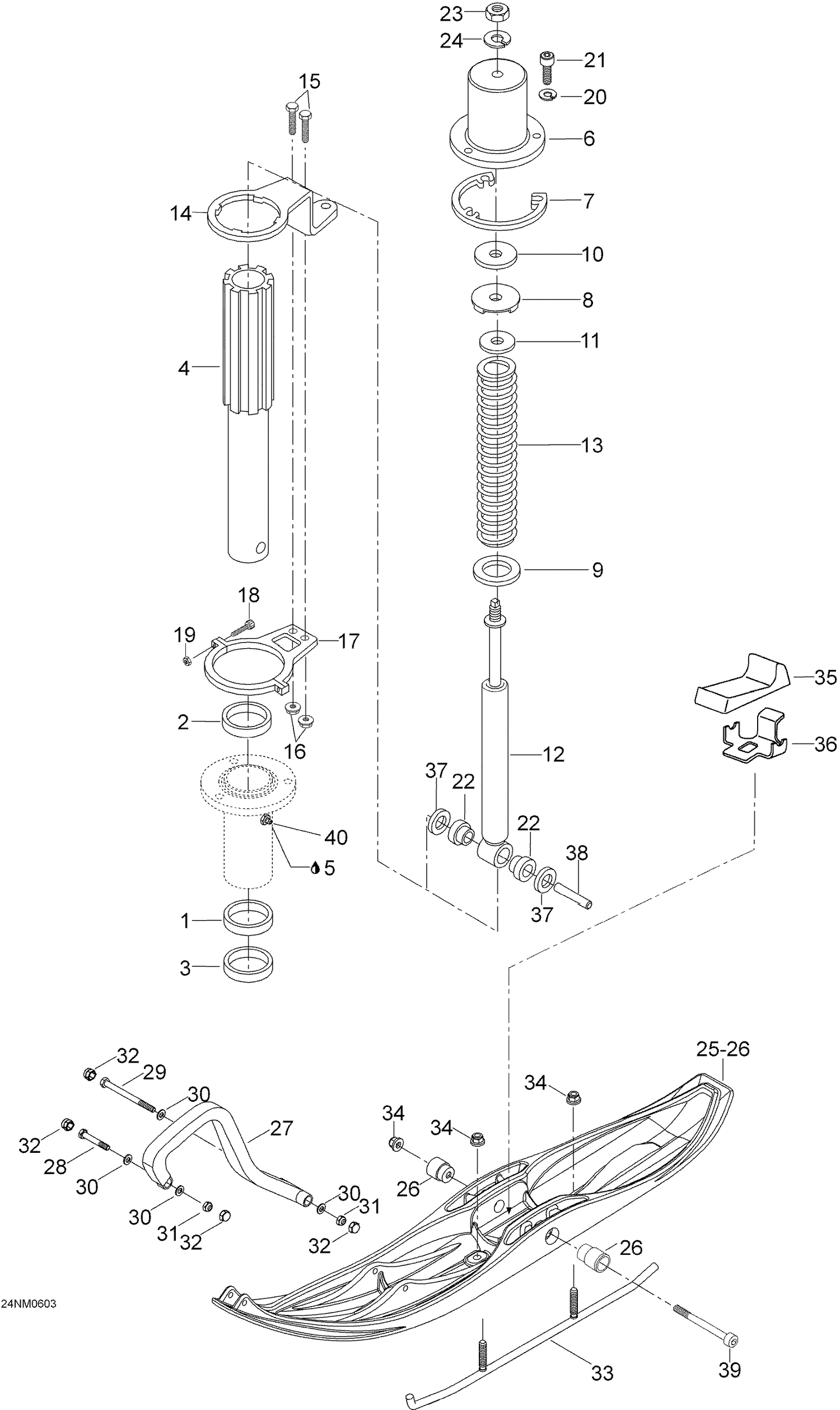

| Ref | Part Number | Description |
|---|
| 1 |
414803200 |
Lower cushion |
| 2 |
414803100 |
Upper cushion |
| 3 |
316373 |
Seal - Call your local BRP dealership |
| 4 |
5245362 |
Skileg 8 GR - Call your local BRP dealership |
| 5 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 6 |
605249284 |
PAINTED COVER - Call your local BRP dealership |
| 7 |
503145600 |
SPACER - Call your local BRP dealership |
| 8 |
570025800 |
Stopper |
| 9 |
549493 |
Bearingplate |
| 10 |
5440399 |
Plate |
| 11 |
549492 |
Holder plate |
| 12 |
505070920 |
SHOCK - Call your local BRP dealership |
| 13 |
5241330 |
Spring |
| 14 |
5244182 |
Steering Arm - Call your local BRP dealership |
| 15 |
40031 |
Screw M6 x 25 |
| 16 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 17 |
619380015 |
Support Ass'Y This part replaces 5344180. |
| 18 |
40146 |
Allen scr. M4 x 20 DIN 912m8.8 Zne(1=10p - Call your local BRP dealership |
| 19 |
33008 |
Nut elastic M4 |
| 20 |
20014 |
Lock washer A8 |
| 21 |
40305 |
Socket head screw M8 x 20 |
| 22 |
572034500 |
Sleeve |
| 23 |
33012 |
Elastic stop nut M10 |
| 24 |
20012 |
Washer A10.5DIN 9021-ST MUP(1=10pcs) - Call your local BRP dealership |
| 26 |
605348392 |
Sleeve |
| 27 |
505070963 |
Plastic handle |
| 28 |
40009 |
Screw M8 x 50 |
| 29 |
207089044 |
Hex. Screw M8 x 90 This part replaces 40264. |
| 30 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 31 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 32 |
28056 |
Cover |
| 33 |
860202822 |
Round Carbide Runner Kit This part replaces 605349311. |
| 34 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 35 |
605348439 |
RUBBER STOPPER - Call your local BRP dealership |
| 36 |
605348437 |
PLATE SUPPORT - Call your local BRP dealership |
| 37 |
605448594 |
BUSHING - Call your local BRP dealership |
| 38 |
505073209 |
Ski Axle This part replaces 605348921. |
| 39 |
40225 |
Socket head screw M10 x 140 |
