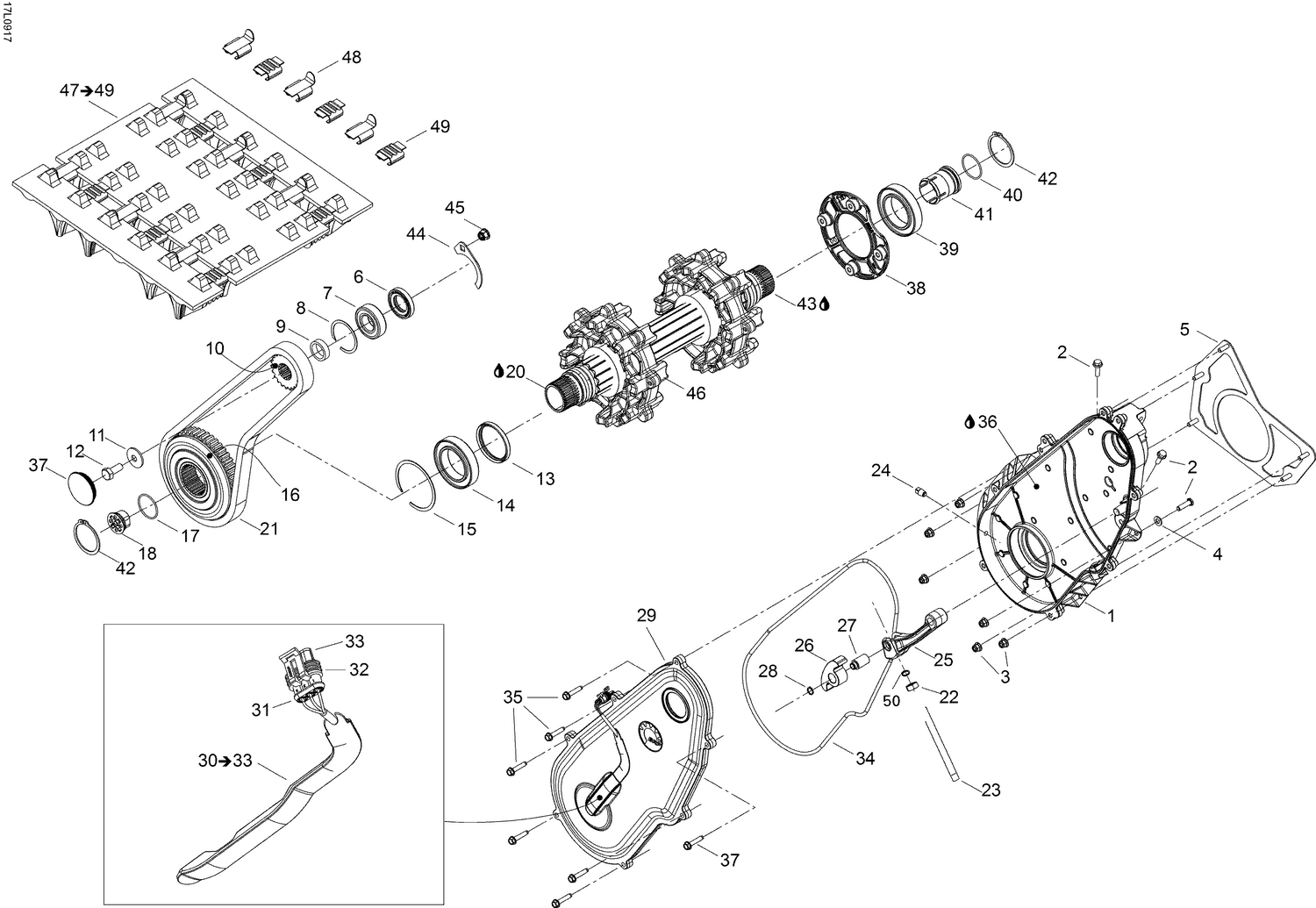

05- Drive System
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Rivet |
| 3 | Not | Available As Spare Part - Huck collar |
| 4 | 234061410 | Flat Washer 6 mm |
| 5 | 518325816 | Plate Ass'y |
| 6 | 293200158 | Oil Seal This part replaces 415049300. |
| 7 | 293350115 | Ball Bearing This part replaces 293350055. |
| 8 | 504152576 | Circlip |
| 9 | 504152628 | Shim |
| 11 | 504152784 | Spring Washer M10 |
| 12 | 207102544 | Hex Screw M10 X 25 |
| 13 | 293200159 | Oil Seal This part replaces 504152571. |
| 14 | 293350059 | Ball Bearing This part replaces 504152573. |
| 15 | 504152582 | Circlip |
| 16 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 17 | 293300122 | O Ring |
| 19 | 504152794 | Magnetic Adaptor |
| 20 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 21 | 504152630 | Drive Chaine |
| 22 | 232006414 | Hex Nut M10 |
| 23 | 504152602 | Adjusting Screw |
| 24 | 504152636 | Magnetic Plug |
| 25 | 504153429 | Chain Tensioner This part replaces 504152685. |
| 26 | 504152739 | Chain Slider |
| 27 | 504152841 | Tensioner Axle |
| 28 | 504152282 | Circlip |
| 29 | 504153147 | Cover Ass´y This part replaces 504152763. |
| 30 | Not | Available As Spare Part - Rotation Sensor |
| 32 | 409209600 | Female Housing, 3 Circuits |
| 33 | 278001014 | Female Terminal |
| 34 | 293300130 | O Ring |
| 35 | 250000360 | Hex Forming Screw M6 |
| 36 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 37 | 504152861 | Filler Cap |
| 38 | 507032437 | Bearing Housing |
| 39 | 293350059 | Ball Bearing |
| 40 | 293300122 | O Ring |
| 41 | 504152619 | Magnetic Cap This part replaces 504152620. |
| 42 | 504152572 | Circlip |
| 43 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 44 | 504153418 | Bearing Housing This part replaces 504152633. |
| 45 | 233281414 | Hex. Flange Elastic Nut M8 |
| 46 | 605356065 | Drive Axle assy |
| 48 | 415129528 | Track Guide This part replaces 504152410. |
| 49 | 504152651 | Cleat |
