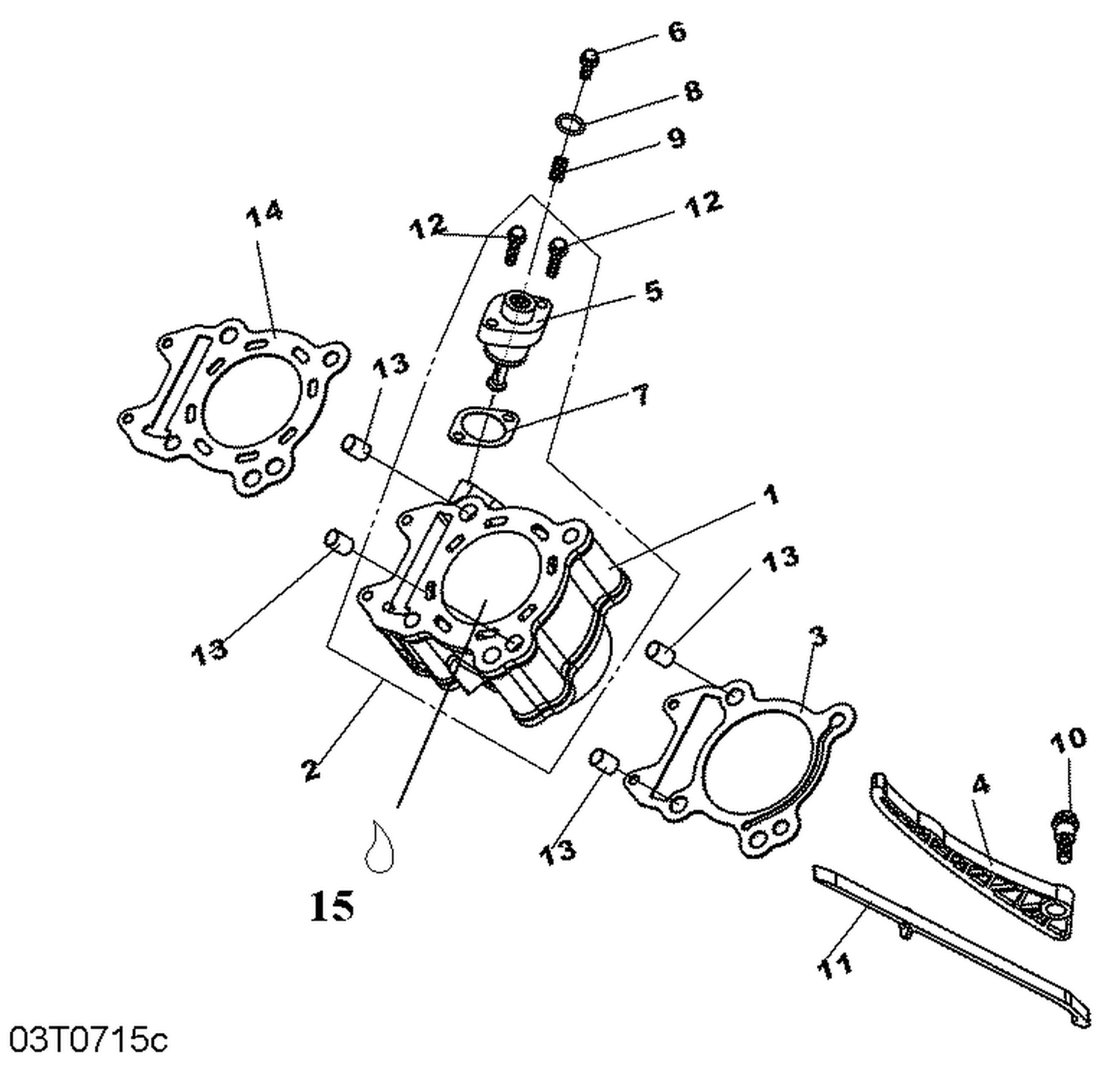

01- Cylinder
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S12100HMA000 | Cylinder |
| 2 | NASP/NDPR | Not Available As Spare Parts |
| 3 | S12191HMA004 | Cylinder Gasket This part replaces S12191HMA000. |
| 4 | S14510HMA000 | Cam Chain Tensioner |
| 5 | S14520H6T000 | Tensioner Lifter |
| 6 | S14522H6T000 | Adjuster Bolt |
| 7 | S14523M9Q000 | Tensioner Lifter Gasket |
| 8 | S14524H6T000 | O-ring |
| 9 | S14525H6T000 | Adjuster Spring |
| 10 | S14531KJ9000 | CAM CHAIN TENSIONNER PIVOT - Call your local BRP dealership |
| 11 | S14610HMA000 | Cam Chain Guide |
| 12 | S90001M9Q000 | Hex. Flange Screw |
| 13 | S9430112200 | Dowel Pin |
| 14 | S12251HMA000 | Cylinder Head Gasket |
