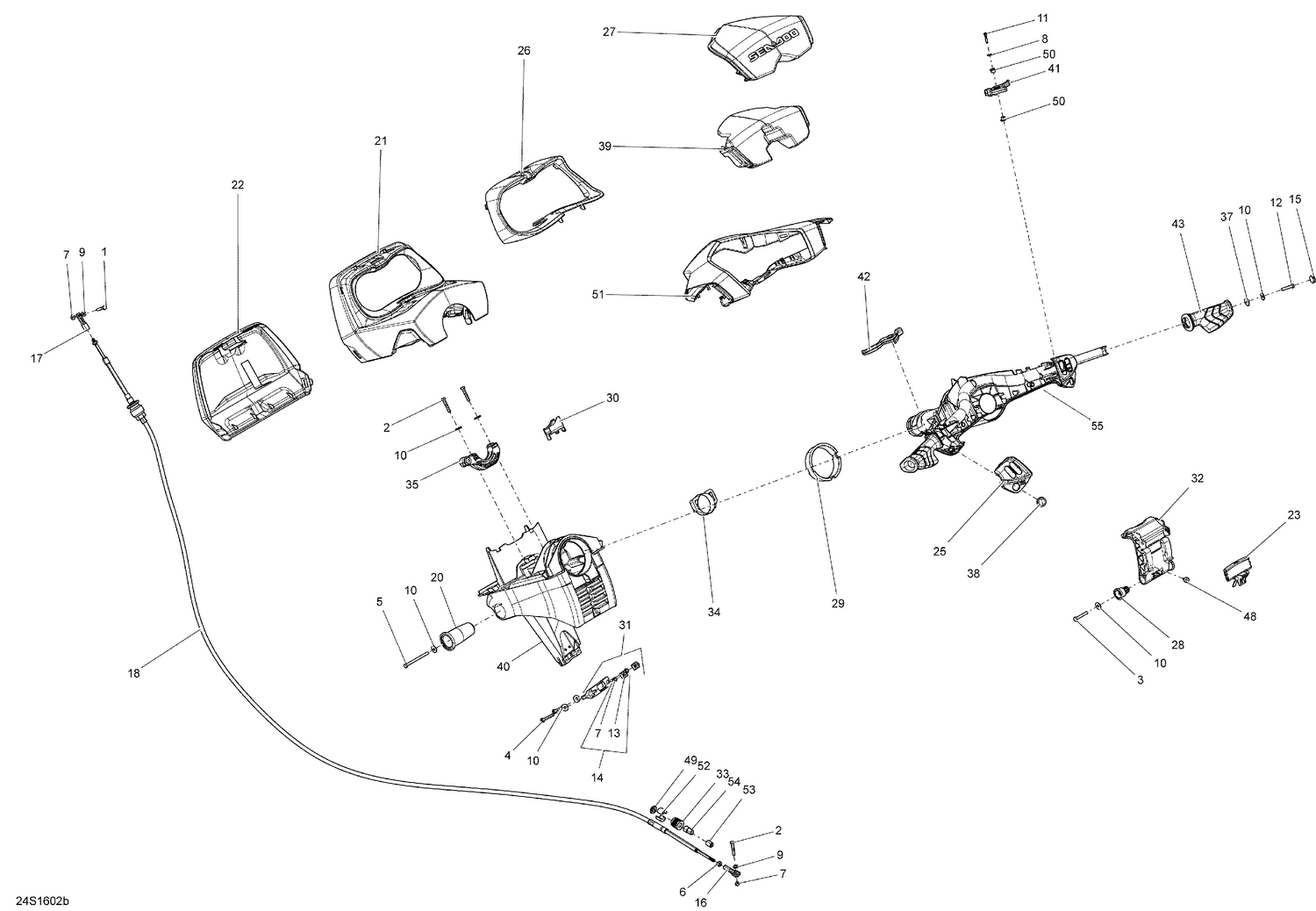

07- Steering - Without Suspension
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207063060 | Hex. Screw M6 X 30 |
| 2 | 207063560 | Hex. Screw M6 X 35 |
| 2 | 207163560 | Hex. Screw M6 X 35 |
| 3 | 207064060 | Hex. Screw M6 X 40 |
| 4 | 207165060 | Hex. Screw M6 X 50 |
| 5 | 207168060 | Hex Screw M6 X 80 |
| 6 | 211100056 | Hex. Nut 1/4"-28 |
| 7 | 232561200 | Brass Elastic Stop Nut M6 |
| 8 | 234042600 | Flat Washer 4 mm, Stainless |
| 9 | 234061600 | Stainless Flat Washer M6 |
| 10 | 234062600 | Flat Washer M6, Stainless |
| 11 | 241142560 | Hex. Flange Screw K40 X 25 |
| 12 | 250000002 | Hex. Screw M6 X 30, Scotch Grip |
| 13 | 269500252 | M6 Nut Housing Ass'y |
| 14 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 15 | 277000203 | Black, Cap |
| 16 | 277000775 | Ball Joint |
| 17 | 277001180 | Ball Joint |
| 18 | 277001602 | Steering Cable |
| 20 | 277001605 | Steering Support Pivot |
| 21 | 277001953 | Gauge Support |
| 22 | 277001613 | Gauge Support Cover |
| 23 | 277001616 | LOCK - Call your local BRP dealership |
| 25 | 277001625 | Housing Cover RH |
| 26 | 277001630 | Gauge Trim, Black |
| 27 | 277001904 | Black Steering Pad |
| 28 | 277001652 | Pivot |
| 29 | 277001653 | Wear Ring |
| 30 | 277001654 | Spacer |
| 31 | 277001655 | Thrust Support Ass'y |
| 32 | 277001658 | Handle Ass'y |
| 33 | 277001729 | Steering Cable Lock |
| 34 | 277002318 | Wear Ring This part replaces 277001741. |
| 35 | 277002179 | Support Ass'y This part replaces 277001779. |
| 37 | 277001863 | Insert Grip Handle |
| 38 | 277001887 | Red, Knob Switch |
| 38 | 277001888 | Grey Knob Switch |
| 39 | 277001921 | Handlebar Foam |
| 40 | 277001942 | Steering Support |
| 41 | 277001944 | Throttle Handle |
| 42 | 277001945 | Reverse Handle |
| 43 | 277001946 | Deep Black, RH Handle Grip |
| 43 | 277001958 | Deep Black, LH Handle Grip |
| 48 | 293830005 | Rubber Bumper |
| 49 | 293830063 | Rubber Washer |
| 50 | 293900091 | Bushing |
| 51 | 277001969 | Steering Cover |
| 52 | 277001527 | Half Ring |
| 53 | 277001582 | Wiper Rod |
| 54 | 277001583 | End Piece |
