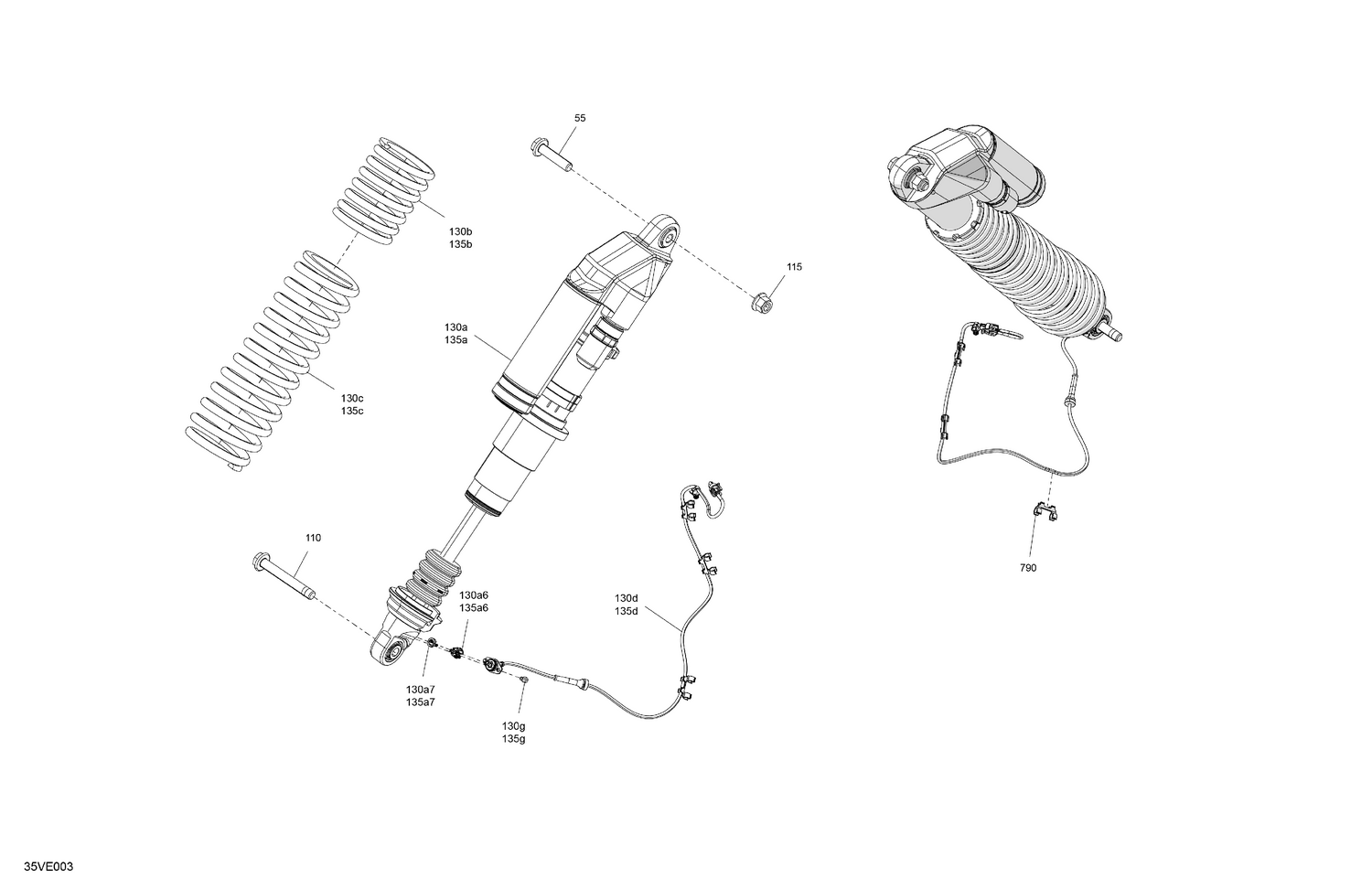

05- Suspension - Front Shocks
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 55 | 250001174 | Hex. Flange Screw Din.6921 M14X2X60 |
| 110 | 250001245 | Hex Flange Screw M14 X 105 |
| 115 | 250001166 | Hex. Flange Elastic Nut M14 |
| 130a6 | 706203583 | Connector Support |
| 130a7 | 706204583 | Anchorage |
| 130b | 706205767 | Legion Red, Compression Spring |
| 130c | 706206417 | Legion Red, Front Compression Spring |
| 130d | 710009322 | Front Suspension Wiring Harness Ass'y |
| 130g | 205551060 | Socket Head Screw M5 X 10 |
| 135a6 | 706203583 | Connector Support |
| 135a7 | 706204583 | Anchorage |
| 135b | 706205767 | Legion Red, Compression Spring |
| 135c | 706206417 | Legion Red, Front Compression Spring |
| 135d | 710009322 | Front Suspension Wiring Harness Ass'y |
| 135g | 205551060 | Socket Head Screw M5 X 10 |
