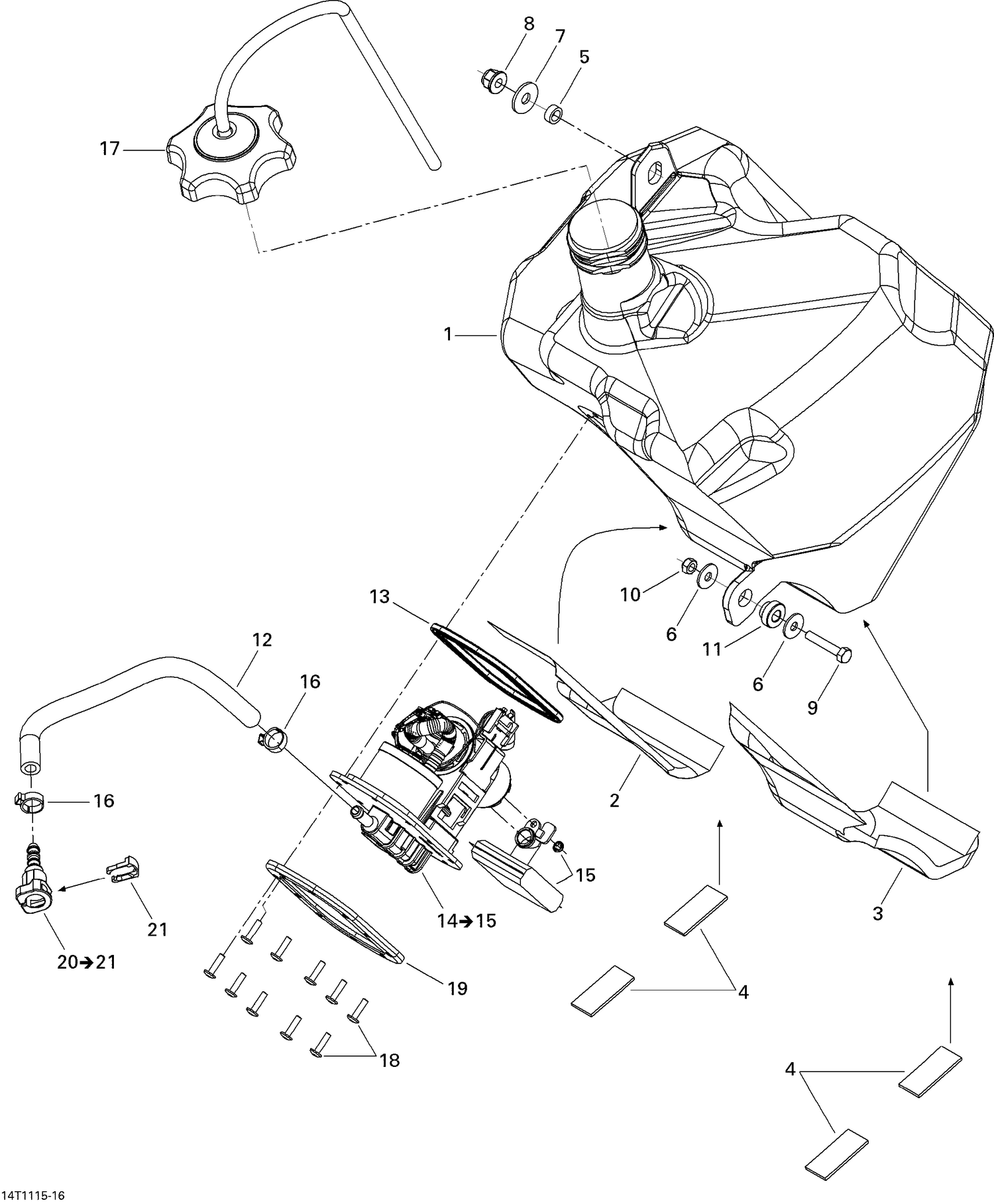

| Ref | Part Number | Description |
|---|
| 1 |
709000237 |
FUEL TANK - Call your local BRP dealership |
| 2 |
709000242 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 3 |
709000243 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 4 |
709000401 |
Rubber Pad This part replaces 274001010. |
| 5 |
293900067 |
BUSHING - Call your local BRP dealership |
| 6 |
250200082 |
Flat Washer |
| 7 |
234082430 |
Flat Washer M8 |
| 8 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 9 |
207063544 |
Hex. Flange Screw M6 X 35 |
| 10 |
232561434 |
Elastic Stop Nut M6 |
| 11 |
293900088 |
BUSHING - Call your local BRP dealership |
| 12 |
219704440 |
Was 709000163 Fuel Line |
| 13 |
709000540 |
Joint Etanche *Gasket This part replaces 709000109. |
| 15 |
715900063 |
Filter Kit |
| 16 |
293650047 |
Crimp Clamp, 15.3-706R |
| 17 |
709000117 |
FUEL CAP - Call your local BRP dealership |
| 18 |
250000750 |
Torx Screw M4 X 16 This part replaces 250000242. |
| 19 |
709000170 |
Pump Ring |
