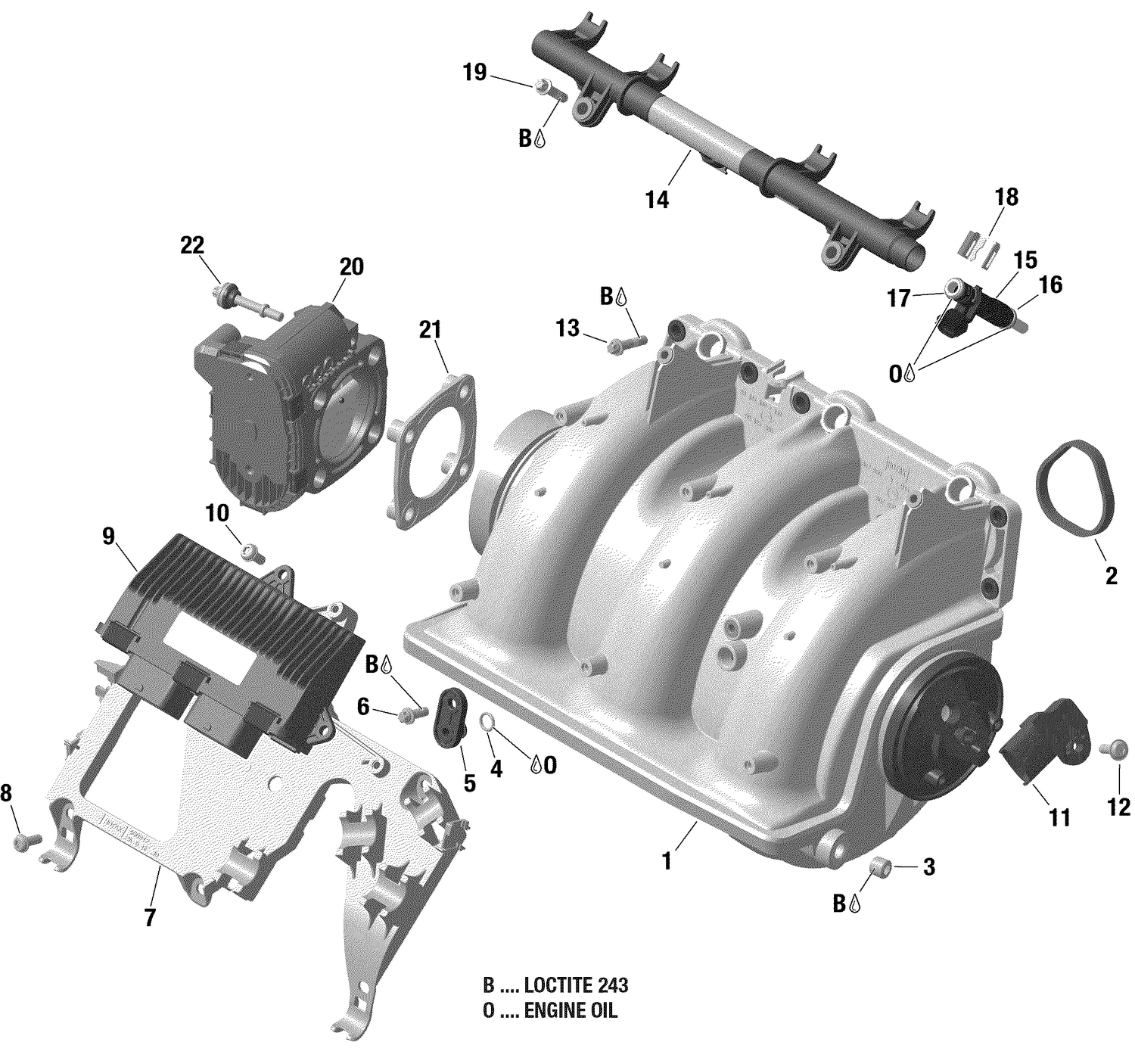

02- Air Intake Manifold And Throttle Body
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420950740 | Gasket |
| 3 | 420840653 | Plug Screw M12 |
| 4 | 420230461 | O-Ring |
| 5 | 420460980 | Cover |
| 6 | 420641048 | Torx Flange Screw M6 X 16 |
| 7 | 420460842 | Base Plate |
| 8 | 420641588 | Torx Flange Screw M6 X 16 |
| 10 | 420641588 | Torx Flange Screw M6 X 16 |
| 11 | 515178563 | Pressure Sensor And Air Temperature This part replaces 420874656. |
| 12 | 420841103 | Torx Flange Screw M6 X 20 |
| 13 | 420641238 | Torx Flange Screw M6 X 25 |
| 14 | 420874414 | Fuel Rail This part replaces 420874396. |
| 16 | 420831050 | O-Ring |
| 17 | 420831060 | O-Ring |
| 18 | 420853030 | Injector Clip |
| 19 | 420641238 | Torx Flange Screw M6 X 25 |
| 20 | 420892592 | Throttle Body Socket Ass’y |
| 21 | 420950792 | Rubber Gasket |
