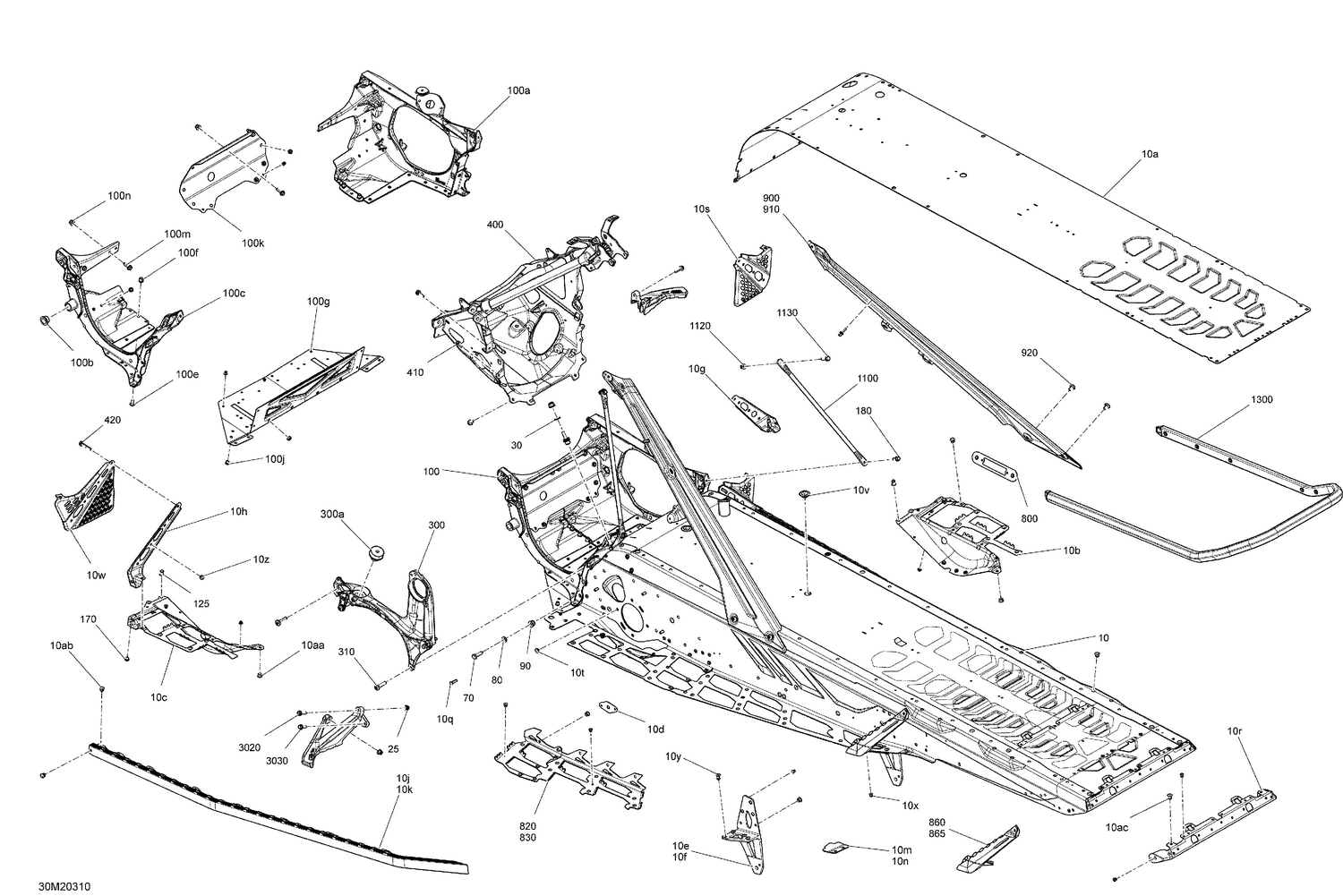

09- Frame - System - 154
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 518334491 | Radiator Tunnel 154 Ass'y This part replaces 415130288. |
| 10aa | 293150119 | Hemlock Rivet, 6.5 mm |
| 10ab | 293150174 | Hemlock Rivet, 6.4 mm |
| 10ac | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10b | 518330321 | LH Footrest Reinforcement |
| 10c | 518330320 | RH Footrest Reinforcement |
| 10d | 518326647 | Reinforcement Plate |
| 10e | 518334392 | LH Rear Suspension Support This part replaces 518329053. |
| 10f | 518334393 | Support_Suspension Rear R This part replaces 518329054. |
| 10g | 518331253 | Stirrup Reinforcement |
| 10h | 518331560 | Deep Black, LH Chasssis Reinforcement |
| 10j | 518328737 | RH Roller |
| 10k | 518328738 | LH Roller |
| 10m | 518329088 | LH Reinforcement Plate |
| 10n | 518329089 | RH Reinforcement Plate |
| 10q | 250300027 | Clinch Stud M6 X 20 |
| 10r | 518328990 | Rear Cap |
| 10s | 518328460 | RH Footrest |
| 10t | 293730047 | Black, Dart 8 mm |
| 10v | 293730052 | Black, Plug |
| 10w | 518333007 | LH Footrest This part replaces 518331556. |
| 10x | 293150203 | Rivet Avibulb 3/16 |
| 10y | 293150183 | Rivet |
| 10z | 293150096 | Hemlock Rivet, 6.5 mm |
| 25 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 30 | 506151252 | Washer |
| 70 | 250000942 | Hex Screw M8 X 30 |
| 80 | 234081410 | Flat Washer 8 mm |
| 90 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100b | 505073317 | Leg Cushion |
| 100e | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 100f | 293150149 | Collar Huck Magna-Grip 6.4 |
| 100g | 518331661 | Bottom Plate This part replaces 518330074. |
| 100j | 293450268 | Insert M5 X 0.8 |
| 100k | 518330100 | Front Member |
| 100m | 207662046 | Hex. Flange Screw M6 X 20 |
| 100n | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 125 | 293150120 | Hemlock Rivet 6.5 mm |
| 170 | 293450267 | Insert M5 - 0.8 |
| 180 | 207661646 | Hex. Flange Screw M6 X 16 |
| 300a | 512061516 | Vibration Damper This part replaces 512060295. |
| 310 | 250001060 | Screw-Pan HD.Torx M8X30 |
| 400 | 518334549 | Chassis Suspension Module Ass'y This part replaces 518330573. |
| 410 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 |
| 420 | 207663544 | Hex. Flange Screw M6 X 35 |
| 800 | 518329480 | Member Fixation Plate |
| 820 | 518329646 | RH Tunnel Liner |
| 830 | 518329647 | LH Tunnel Liner |
| 920 | 250000887 | Pan Head Torx Screw M8 X 12 |
| 1100 | 518329974 | Upper Colomn Support |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1130 | 207662556 | Hex. Flange Screw M6 X 25 |
| 1300 | 518329553 | Rear Bumper 146 |
| 3020 | 250000793 | Hex. Flange Screw M6 X 25 |
