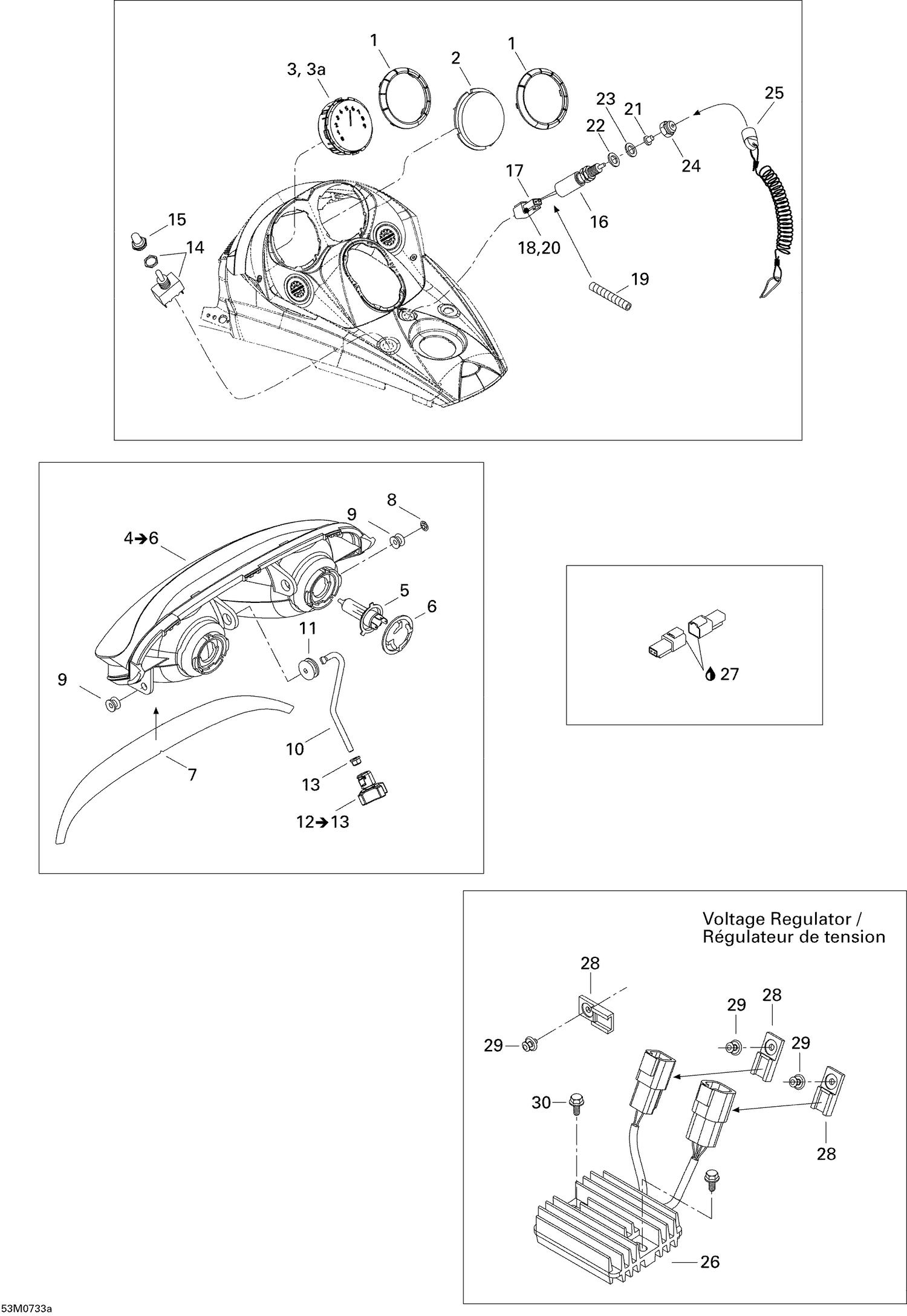

| Ref | Part Number | Description |
|---|
| 1 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 2 |
515175901 |
GAUGE HOLE COVER - Call your local BRP dealership |
| 3 |
515176479 |
TACHOMETER/SPEEDO GAUGE - Call your local BRP dealership |
| 3a |
415128938 |
REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership |
| 5 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 7 |
516001328 |
HEADLAMP DECAL - Call your local BRP dealership |
| 8 |
732610072 |
Push Nut |
| 9 |
515175760 |
HEADLAMP BUSHING - Call your local BRP dealership |
| 10 |
515175521 |
ADJUSTER ROD - Call your local BRP dealership |
| 11 |
415100800 |
Grommet - Call your local BRP dealership |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
410107300 |
Switch (Heating Grip) |
| 15 |
515175281 |
Switch Cover |
| 16 |
515175653 |
Brake Switch |
| 17 |
515175665 |
Male Terminal Housing, 2 Circuits |
| 18 |
409207500 |
Male Lock, 2 Circuits |
| 19 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 20 |
515175768 |
MALE TERMINAL - Call your local BRP dealership |
| 21 |
570151100 |
Plunger Cap |
| 22 |
250200032 |
Washer |
| 23 |
510004418 |
WASHER - Call your local BRP dealership |
| 24 |
415073500 |
Switch Nut |
| 25 |
515178292 |
Cap Ass'Y This part replaces 515176462. |
| 26 |
515175968 |
Voltage Regulator |
| 27 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 28 |
270000141 |
Clip This part replaces 515175917. |
| 29 |
293150037 |
Avdel Rivet 3/16" |
