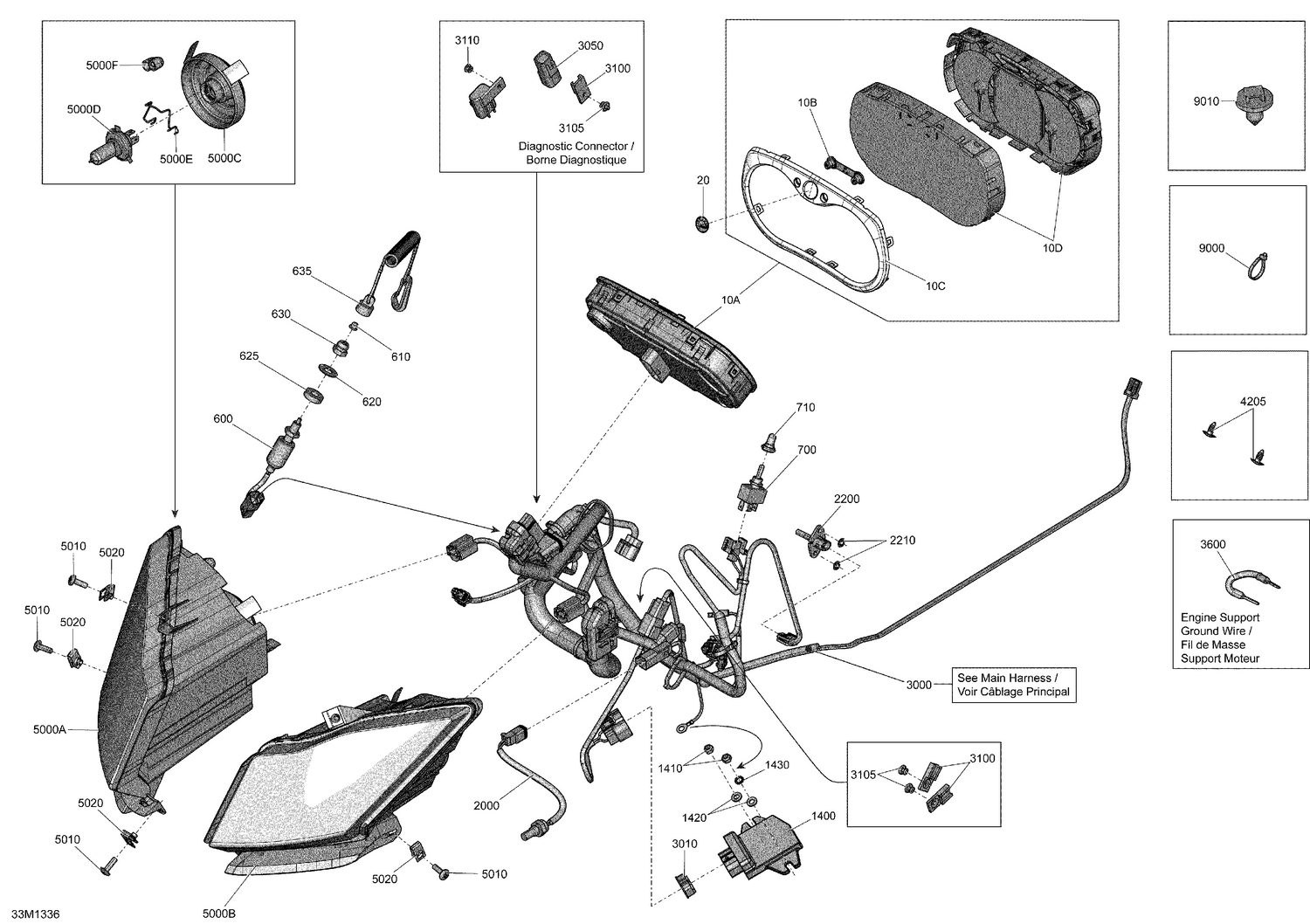

10- Electrical System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10B | 415129355 | Speedometer Button |
| 10C | 415129348 | Gauge Ring |
| 10D | 415129349 | Lens |
| 20 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 600 | 515175653 | Brake Switch |
| 610 | 570151100 | Plunger Cap |
| 620 | 250200032 | Washer |
| 625 | 510004418 | WASHER - Call your local BRP dealership |
| 630 | 515145900 | Switch Nut |
| 635 | 515178292 | Cap Ass'Y This part replaces 515176462. |
| 700 | 410107300 | Switch (Heating Grip) |
| 710 | 515175281 | Switch Cover |
| 1400 | 515176364 | Voltage Regulator |
| 1410 | 232561414 | Elastic Stop Nut M6 |
| 1420 | 234061410 | Flat Washer 6 mm |
| 1430 | 234461608 | External Serrated Lock Washer 6 mm |
| 2000 | 420664509 | Temperature Sensor This part replaces 515177471. |
| 2200 | 515176366 | Air Temperature Sensor |
| 2210 | 389804300 | Push Nut |
| 3000 | 515177111 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 3010 | 515176681 | Lock |
| 3050 | 710003006 | Housing |
| 3100 | 270000141 | Clip |
| 3105 | 293150037 | Avdel Rivet 3/16" |
| 3110 | 390402200 | Pop Rivet 3/16" |
| 3600 | 515177289 | Ground Wire |
| 4205 | 414644300 | Black, Dart |
| 5000C | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 5000D | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 5000E | 515176493 | BULB HOLDER - Call your local BRP dealership |
| 5000F | 515176498 | Cap |
| 5010 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 5020 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 9000 | 293750001 | Tie Wrap 94 mm |
| 9000 | 293750002 | Tie Wrap 142 mm |
| 9000 | 293750008 | Tie Wrap 368 mm |
| 9000 | 414115200 | Tie-Rap 180 mm |
