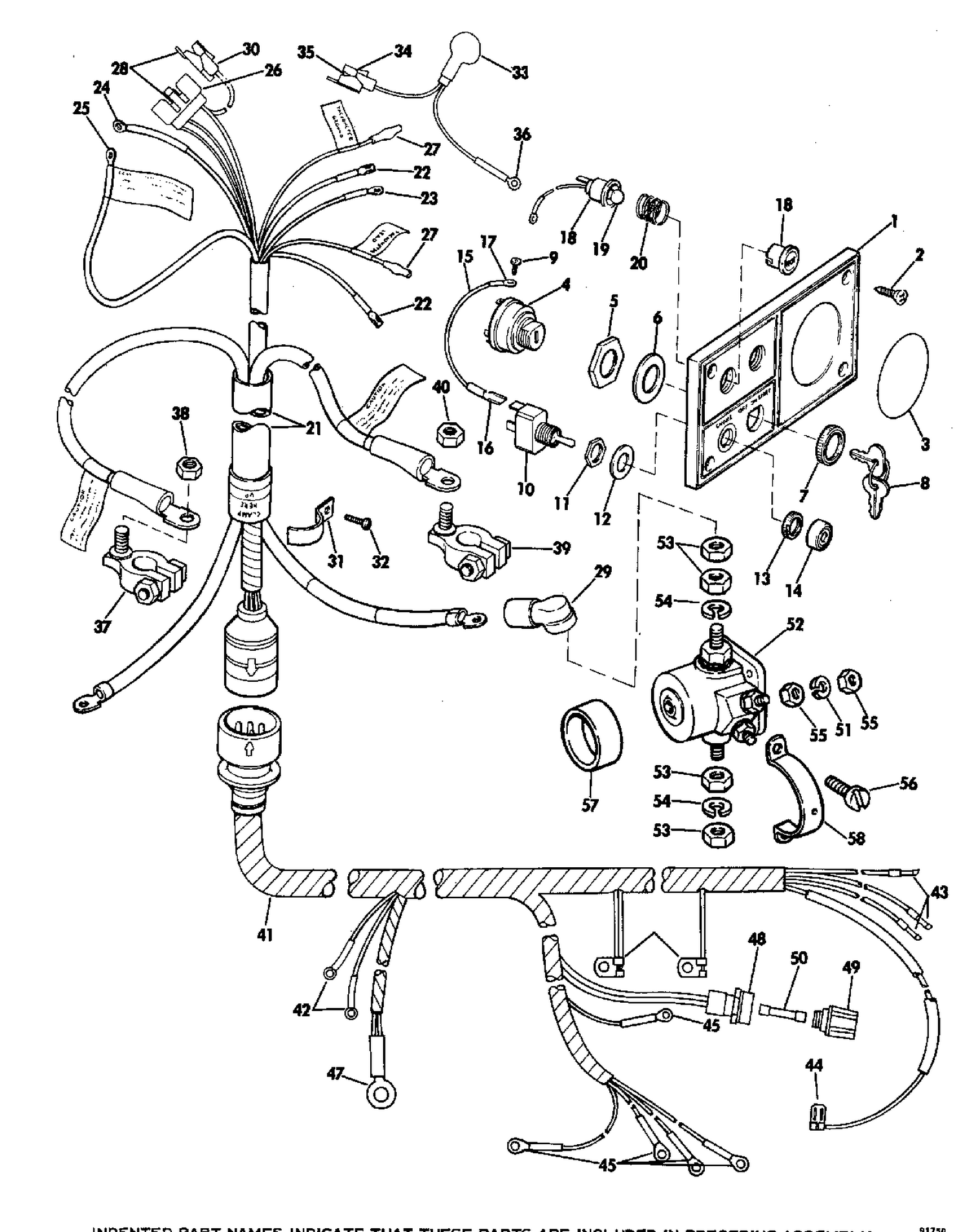

| Ref | Part Number | Description |
|---|
| 1 |
0312694 |
DASH PANEL |
| 2 |
0312691 |
SCREW, Cash pannel |
| 3 |
0312696 |
DECAL, Dash panel |
| 4 |
0386947 |
IGNITION SWITCH This part replaces 0383493. |
| 8 |
KEY, |
Ignition |
| 10 |
0975257 |
SWITCH ASSEMBLLY |
| 12 |
0900696 |
WASHER |
| 15 |
0383351 |
LEAD ASSEBMBLY,Ignition to choke switch |
| 18 |
0381629 |
INDICATING LIGHT, Temp |
| 21 |
0383634 |
CABLE ASSEMBLY, Instrument |
| 33 |
0383538 |
BLOCKING DIODE ASSEMBLY |
| 37 |
0314574 |
HEX NUT |
| 39 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277709. |
| 41 |
0383536 |
CABLE ASSEMBLY, Motor |
| 48 |
0384298 |
FUSE HOLDER & LEAD ASSY. |
| 49 |
0384297 |
KNOB ASSEMBLY |
| 50 |
0510882 |
FUSE |
| 56 |
0303311 |
SCR,Clamp,eng cable |
| 57 |
0311217 |
MANCHON, solénoïde |
| 0383635 |
0383635 |
INSTRUMENTS AND CABLE ASSEMBLY |
