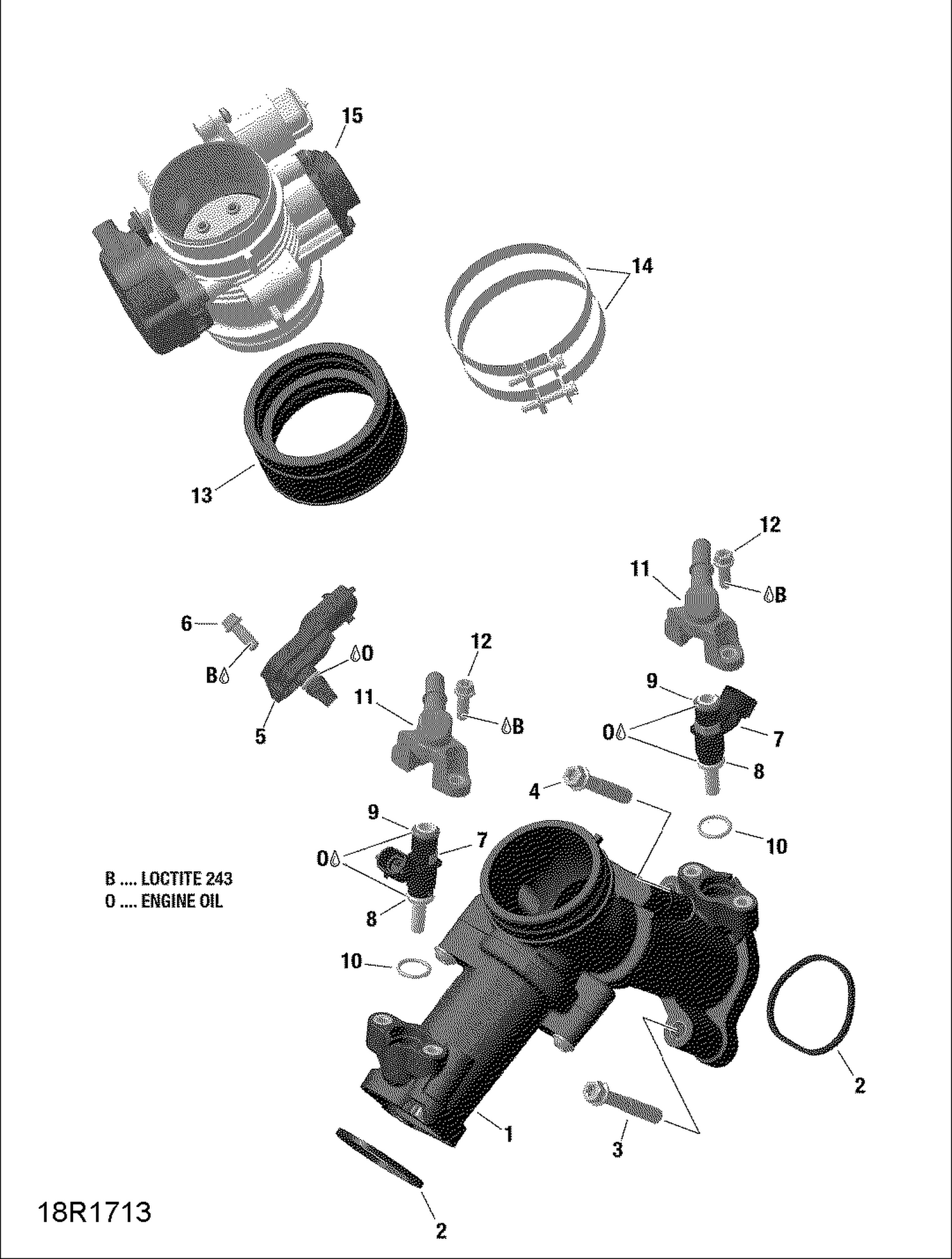

01- ROTAX - Air Intake Manifold and Throttle Body
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667520 | Air Intake Manifold |
| 2 | 420630642 | Gasket This part replaces 420450420. |
| 3 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 4 | 420641208 | Hex. Flange Screw M8 X 45 This part replaces 420940077. |
| 5 | 707000995 | Pressure And Temperature Sensor |
| 6 | 420440164 | Torx Flange Screw M6 X 16 |
| 8 | 420431890 | O-Ring |
| 9 | 420631220 | O-Ring |
| 10 | 420631296 | O-Ring This part replaces 420631295. |
| 11 | 420874901 | Fuel Rail |
| 12 | 420440162 | Torx Flange Screw M6 X 16 |
| 13 | 420267042 | Intake Neck This part replaces 420267041. |
| 14 | 420251209 | Clamp |
