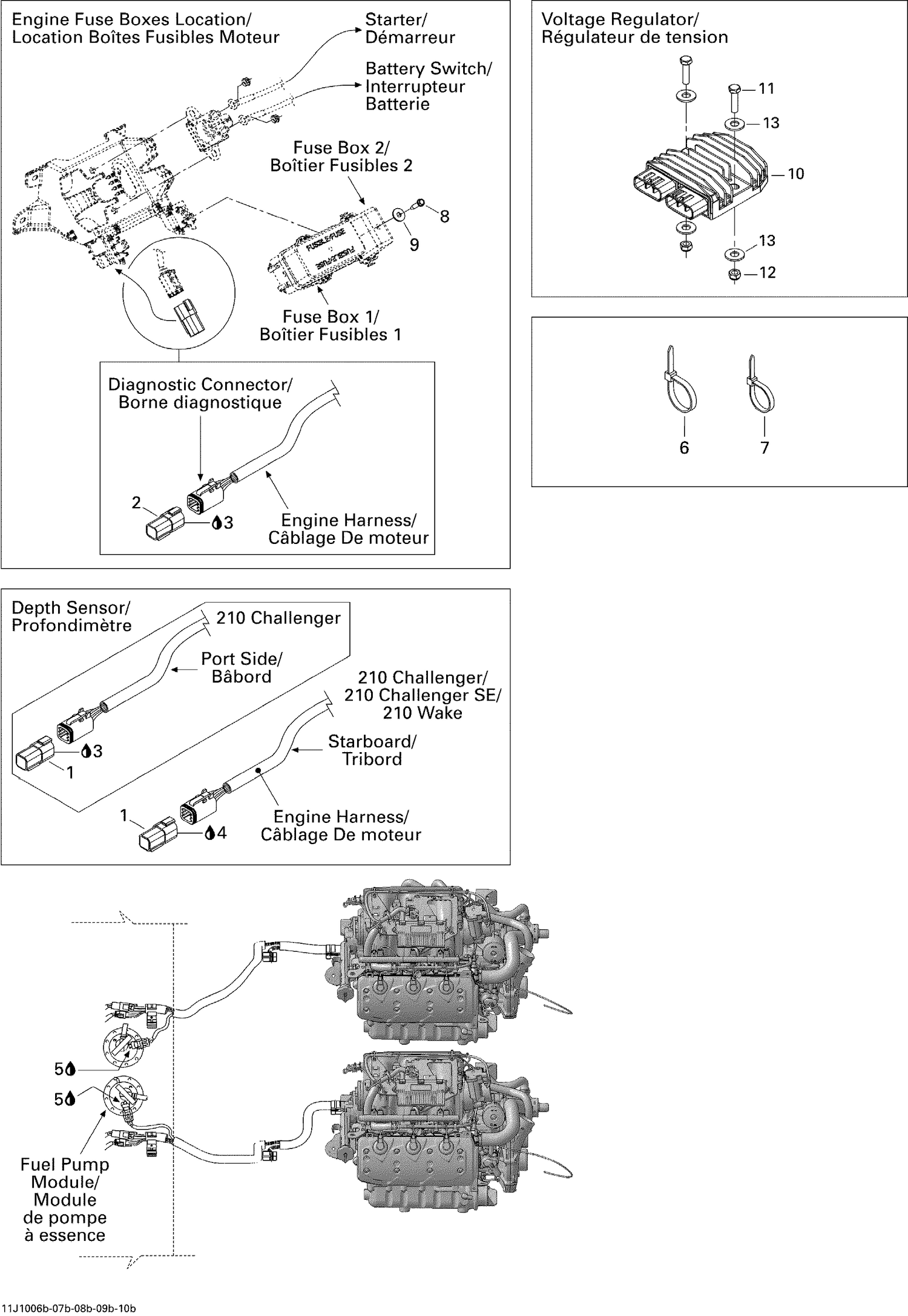

| Ref | Part Number | Description |
|---|
| 1 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 2 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 3 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 4 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 5 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 6 |
414115200 |
Tie-Rap 180 mm |
| 7 |
293750002 |
Tie Wrap 142 mm |
| 8 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 9 |
234062600 |
Flat Washer M6, Stainless |
| 10 |
710001103 |
Voltage Regulator |
| 11 |
207162560 |
Hex. Screw M6 X 25 |
| 12 |
232561600 |
Hex. Elastic Stop Nut M6 |
