Parts Catalog

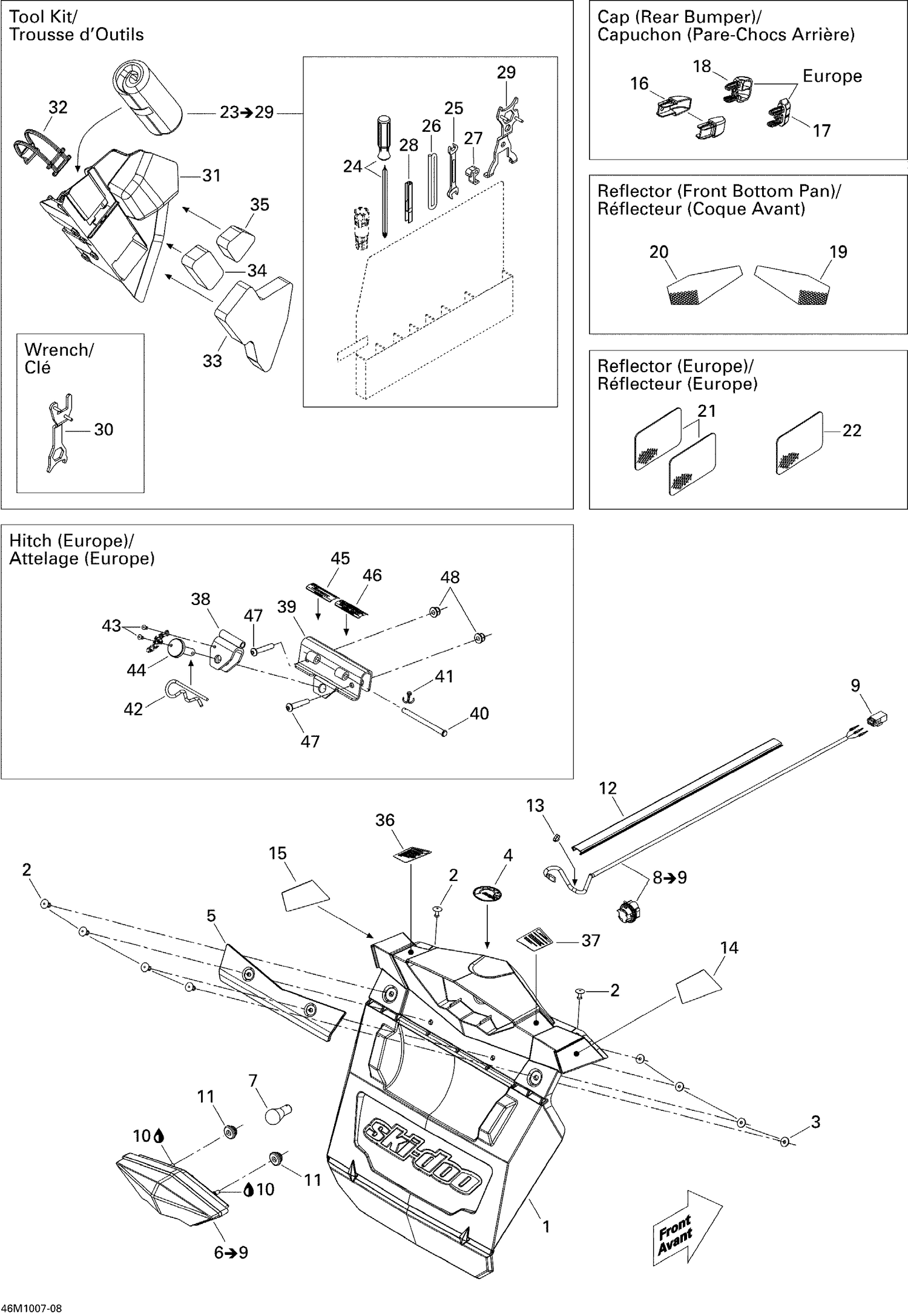

09- Utilities 800R PTEK BC

Parts (46)

Ref	Part Number	Description
1	520000702	Snow Guard
2	293150108	Pop Rivet 3/16” This part replaces 293150108.
3	517124300	Washer
4	219903305	BRP Logo 48 mm This part replaces 219902544.
5	520000751	Reinforcement
7	520000758	Bulb
9	515175494	Male Housing, 3 Circuits
10	219704453	Was 293550004 Dielectric Grease, 150 g
11	705014429	Rubber Stopper This part replaces 705003666.
12	520000829	Radiator Trim
13	293750002	Tie Wrap 142 mm
14	520000716	Red RH Rear Reflector
14	XXX	Not Available As Spare Parts
15	520000707	YELLOW LH REAR REFLECTOR - Call your local BRP dealership
15	520000717	Red LH Rear Reflector
16	520000567	Full Moon Cap
17	XXX	Not Available As Spare Parts
18	XXX	Not Available As Spare Parts
19	520000718	Yellow, RH Front Reflector
20	520000719	Yellow, LH Front Reflector
21	XXX	Not Available As Spare Parts
22	XXX	Not Available As Spare Parts
24	529000004	SCREWDRIVER - Call your local BRP dealership
25	529000002	FORK WRENCH, 10/13 MM - Call your local BRP dealership
26	219704403	Was 412500100 Rope-Starter
27	529000060	Starter Grip This part replaces 529019400.
28	529035501	Spacing Tool
29	520000988	WRENCH SUSPENSION - Call your local BRP dealership This part replaces 520000956.
30	520000721	WRENCH - Call your local BRP dealership
31	520000842	Tool Kit Rack
32	520000528	Latch
33	520001059	Foam This part replaces 520000743.
34	520001061	Foam This part replaces 520000753.
35	520001062	Foam This part replaces 520000754.
36	520000695	WARNING DECAL, SECURITY - Call your local BRP dealership
37	520000697	WARNING DECAL, LOAD - Call your local BRP dealership
38	XXX	Not Available As Spare Parts
39	XXX	Not Available As Spare Parts
40	XXX	Not Available As Spare Parts
41	XXX	Not Available As Spare Parts
42	XXX	Not Available As Spare Parts
43	XXX	Not Available As Spare Parts
44	XXX	Not Available As Spare Parts
45	XXX	Not Available As Spare Parts
46	XXX	Not Available As Spare Parts
47	XXX	Not Available As Spare Parts
