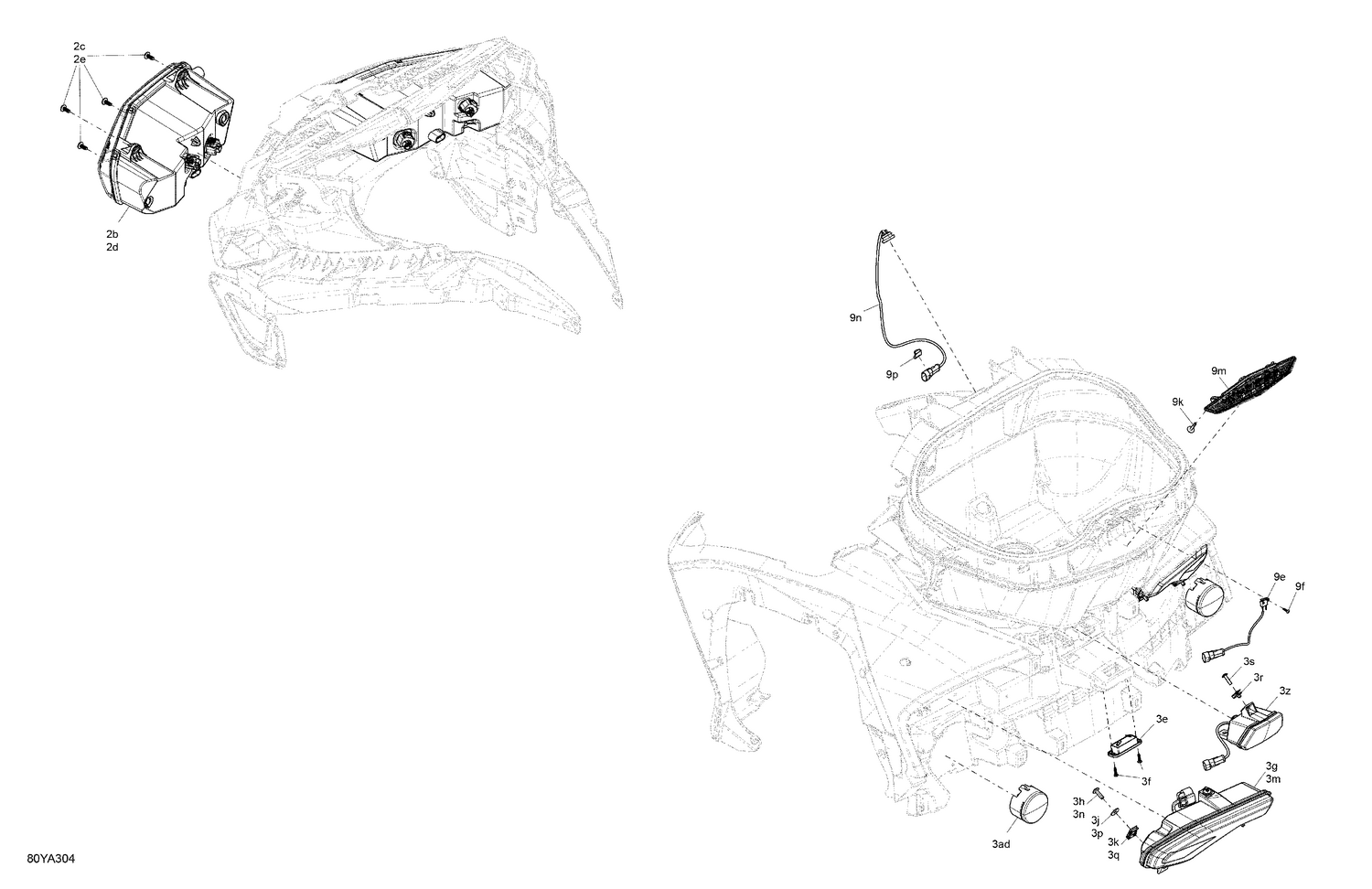

08- Electric - Vehicle Lighting - Japan
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2b | 710006578 | LH Headlight |
| 2c | 250000546 | Oval Head Torx Screw K60 X 16 |
| 2d | 710006579 | RH Headlight |
| 2e | 250000546 | Oval Head Torx Screw K60 X 16 |
| 3ad | 710006667 | Brake Light |
| 3e | 710005501 | License Light |
| 3f | 250001123 | Hex. Flange Screw K40 X 16 |
| 3g | 710007002 | LH Tail Light |
| 3h | 250000722 | Torx Screw M6 X 20 |
| 3j | 250200164 | Flat washer M6 |
| 3k | 250100208 | Panel Nut M6 X 1.0 |
| 3m | 710007004 | RH Tail Light |
| 3n | 250000722 | Torx Screw M6 X 20 |
| 3p | 250200164 | Flat washer M6 |
| 3q | 250100208 | Panel Nut M6 X 1.0 |
| 3r | 250000958 | Panel Nut M5 X 0.8 |
| 3s | 250000715 | Torx Truss Screw M5 X 20 |
| 3z | 710007005 | Back-Up Light |
| 9e | 710005315 | Open Detection |
| 9f | 250000614 | Screw-pt.flange Oval Hd.k30 X 12 |
| 9k | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 9m | 520001785 | Non-fonctional Rear Tail-light |
| 9n | 710001533 | Trunk Light |
