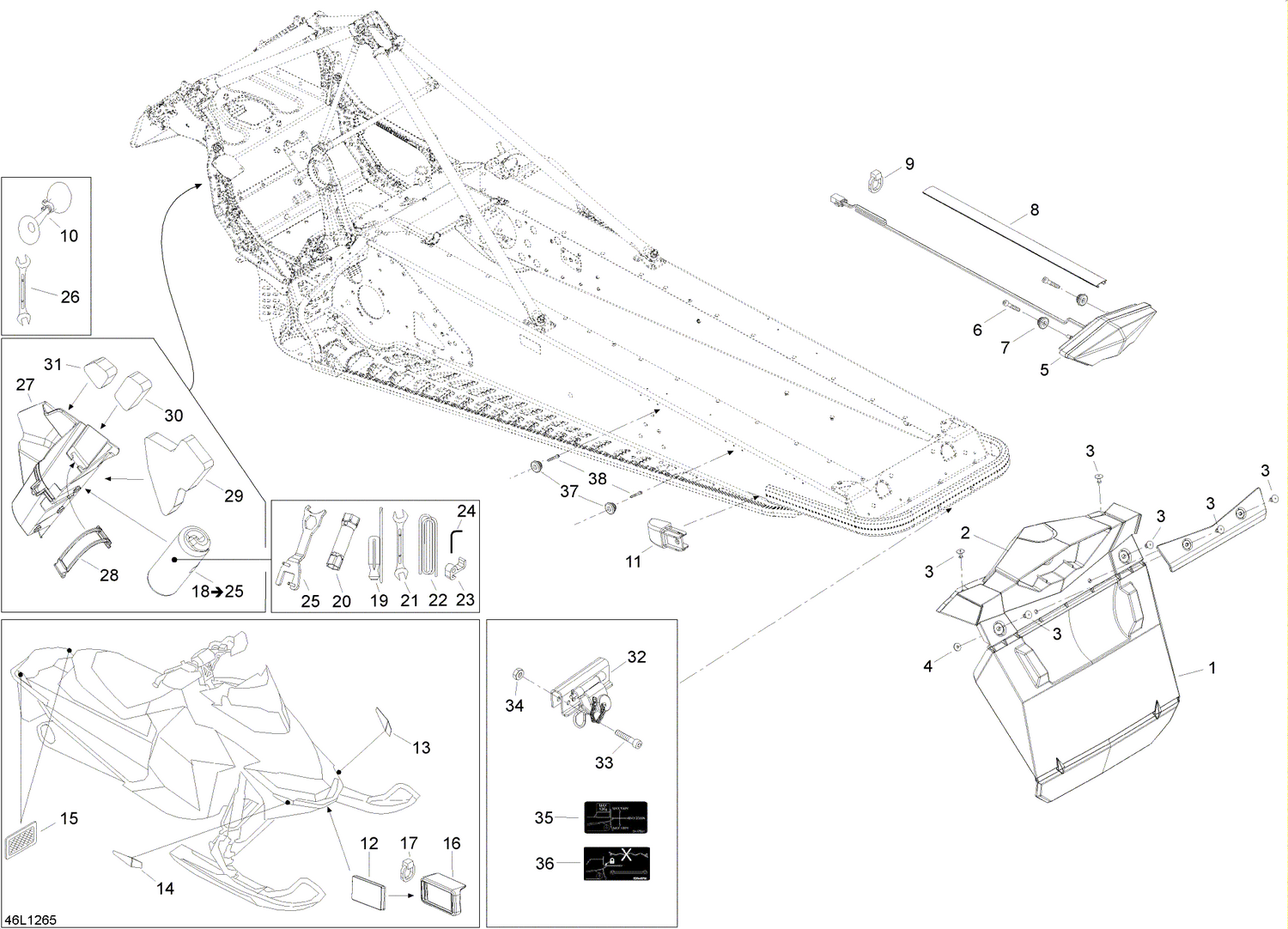

09- Utilities
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001069 | Snow Guard |
| 2 | 511000583 | Light Cover |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 517124300 | Washer |
| 5 | 520000955 | REAR LIGHT - Call your local BRP dealership |
| 6 | 250000451 | Screw Torx Flange |
| 7 | 705014429 | Stopper_Rubber This part replaces 705003666. |
| 8 | 520000829 | Radiator Trim |
| 9 | 414115200 | Tie-Rap 180 mm |
| 10 | 549011291 | Horn |
| 11 | 520000711 | RH Cap |
| 11 | 520000712 | LH Cap |
| 12 | 21118 | Reflector (Bright) |
| 13 | 520000719 | LH Front Reflector |
| 14 | 520000718 | RH Front Reflector |
| 15 | 21121 | REFLECTOR (YELLOW) - Call your local BRP dealership |
| 16 | 520000871 | Reflector Support |
| 17 | 27120 | TIE RAP - Call your local BRP dealership |
| 18 | 529000065 | Tool Kit This part replaces 529000054. |
| 19 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 20 | 529000046 | Set Key 16 / 21 MM |
| 21 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 22 | 412500200 | Starter Rope, Meter |
| 23 | 529000060 | Starter Grip |
| 24 | 520001028 | SPACING TOOL - Call your local BRP dealership |
| 25 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 26 | 34017 | Wrench 17/19 |
| 27 | 520000842 | Tool Kit Rack |
| 28 | 520000528 | Latch |
| 29 | 520001059 | Foam |
| 30 | 520001061 | Foam |
| 31 | 520001062 | Foam |
| 32 | 860201381 | C Type Hitch This part replaces 860200099. |
| 33 | 205484546 | Socket Head Screw M8 X 45 |
| 34 | 233281414 | Hex. Flange Elastic Nut M8 |
| 35 | 5447931 | Decal, Weight / Pulling Force |
| 36 | 605448799 | PULLING BAR DECAL - Call your local BRP dealership |
| 37 | 520000889 | Anchor Link |
