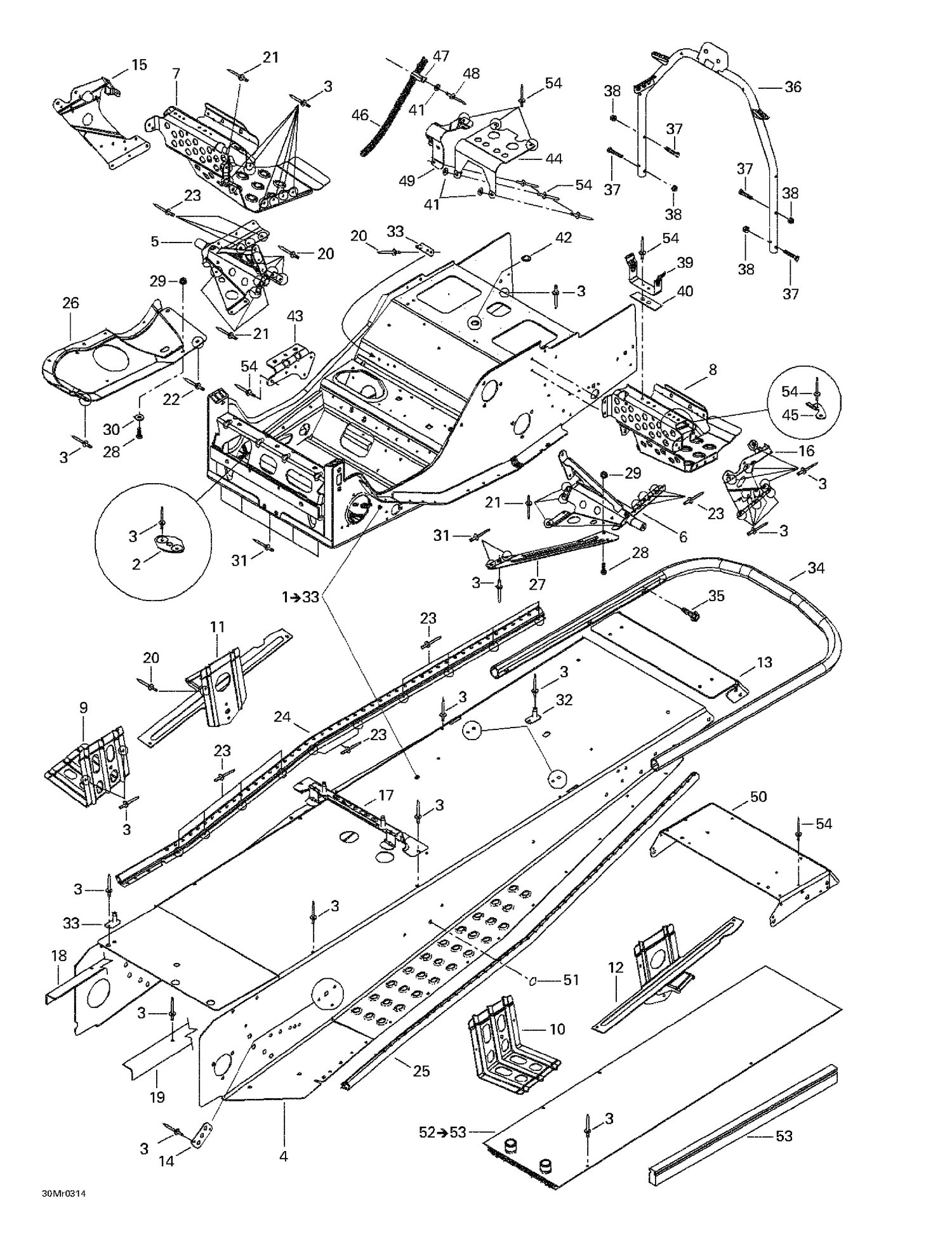

09- Frame And Accessories
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518201307 | Plate Bracket |
| 3 | 390402200 | Pop Rivet 3/16" |
| 5 | 518322845 | RH Foot Support |
| 6 | 518322848 | LH Foot Support |
| 7 | 518323255 | RH footrest |
| 8 | 518323256 | LH footrest |
| 9 | 518322819 | RH front bracket |
| 10 | 518322821 | LH front bracket |
| 14 | 518201321 | REINFORCEMENT PLATE - Call your local BRP dealership |
| 15 | 518322059 | RH Footrest Reinforcement |
| 16 | 518322063 | LH Footrest Reinforcement |
| 18 | 518322812 | RH frame reinforcement |
| 19 | 518322813 | LH frame reinforcement |
| 20 | 390909200 | Avex Rivet |
| 21 | 390909100 | Avex Rivet |
| 22 | 390402300 | Pop Rivet 3/16" |
| 23 | 390402400 | Pop Rivet 3/16" |
| 24 | 518323182 | RHFootrest reinforcement |
| 25 | 518323183 | LHFootrest reinforcement |
| 26 | 518322636 | RH BOTTOM PAN PLATE - Call your local BRP dealership |
| 27 | 518322119 | LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 28 | 207152044 | Hex. Screw M5 X 20 |
| 29 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 30 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 31 | 390910300 | HENROB RIVET - Call your local BRP dealership |
| 32 | 518323321 | Seat Bracket |
| 33 | 518323173 | Double Bracket |
| 35 | 207682044 | Hex. Flange Screw M8 X 20 |
| 36 | 518322755 | Handle Support |
| 37 | 207664044 | Hex. Flange Screw M6 X 40 |
| 38 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 39 | 518202100 | Belt Guard Bracket |
| 40 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 41 | 517225900 | Flat Washer |
| 42 | 414859400 | CAP - Call your local BRP dealership |
| 43 | 518322635 | Muffler Support |
| 44 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 45 | 518322031 | TOOL KIT BRACKET - Call your local BRP dealership |
| 46 | 518321569 | ROPE GUIDE - Call your local BRP dealership |
| 47 | 518321570 | Open Clamp |
| 48 | 293150103 | Pop Rivet 3/16" |
| 49 | 518322699 | Hose Support |
| 51 | 518321954 | Panel Fastener |
