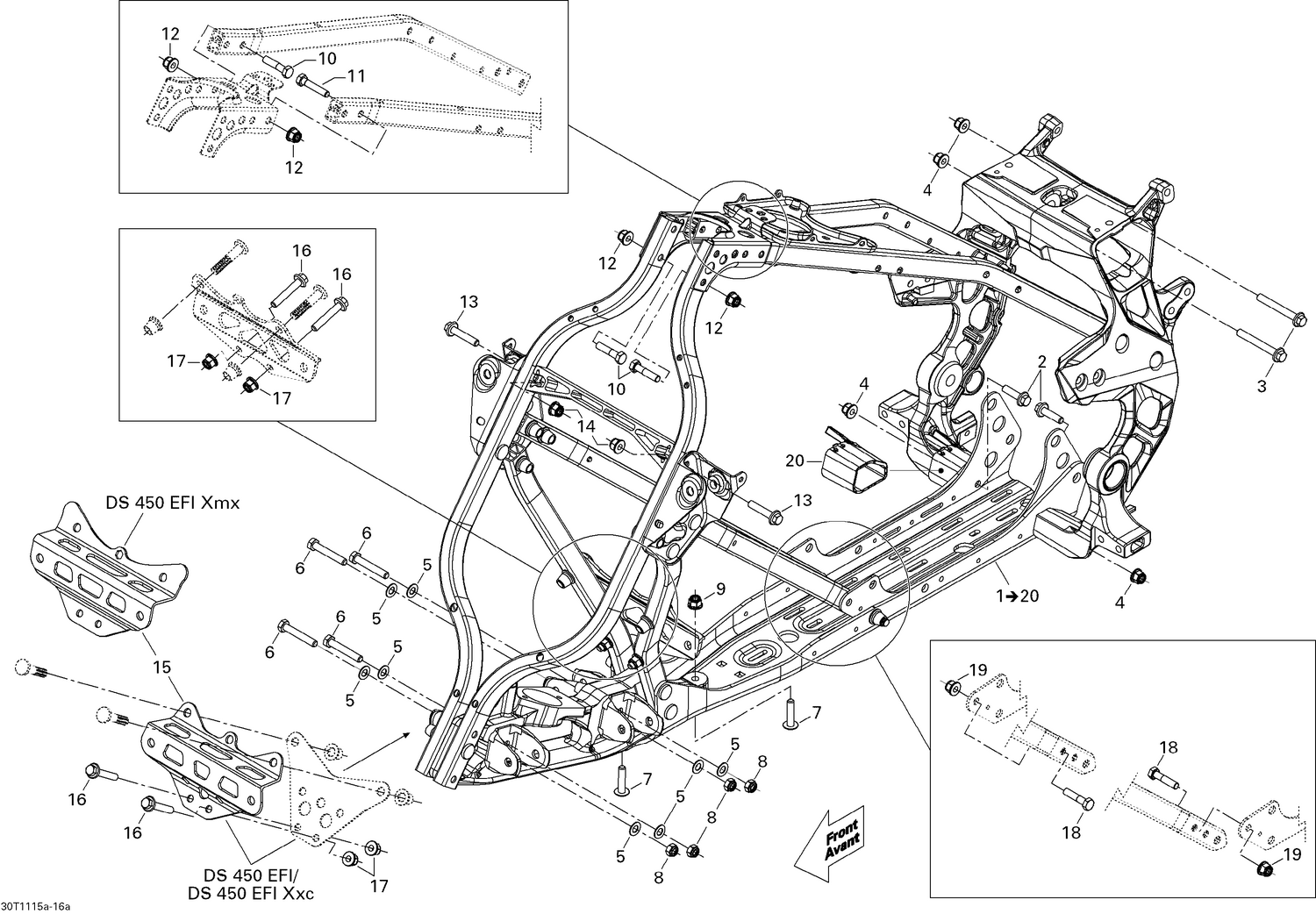

| Ref | Part Number | Description |
|---|
| 2 |
207683034 |
Hex. Flange Screw M8 X 30 |
| 3 |
207686534 |
Hex. Flange Screw M8 x 65 |
| 4 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 5 |
506151252 |
Washer |
| 6 |
Not |
Available As Spare Part - Hex. Screw M8 X 50, Scotch Grip |
| 7 |
250000316 |
TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership |
| 8 |
Not |
Available As Spare Part - Elastic Stop Nut M8 |
| 9 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 10 |
207083544 |
Hex. Screw M8 X 35 |
| 11 |
207084044 |
Hex. Screw M8 X 40 |
| 12 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 13 |
207684034 |
Hex. Flange Screw M8 X 40 |
| 14 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 15 |
705202172 |
FRONT BRAKET A-ARM - Call your local BRP dealership |
| 16 |
207684534 |
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership |
| 17 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 18 |
207083544 |
Hex. Screw M8 X 35 |
| 19 |
233281434 |
Hex. Flange Elastic Nut M8 |
