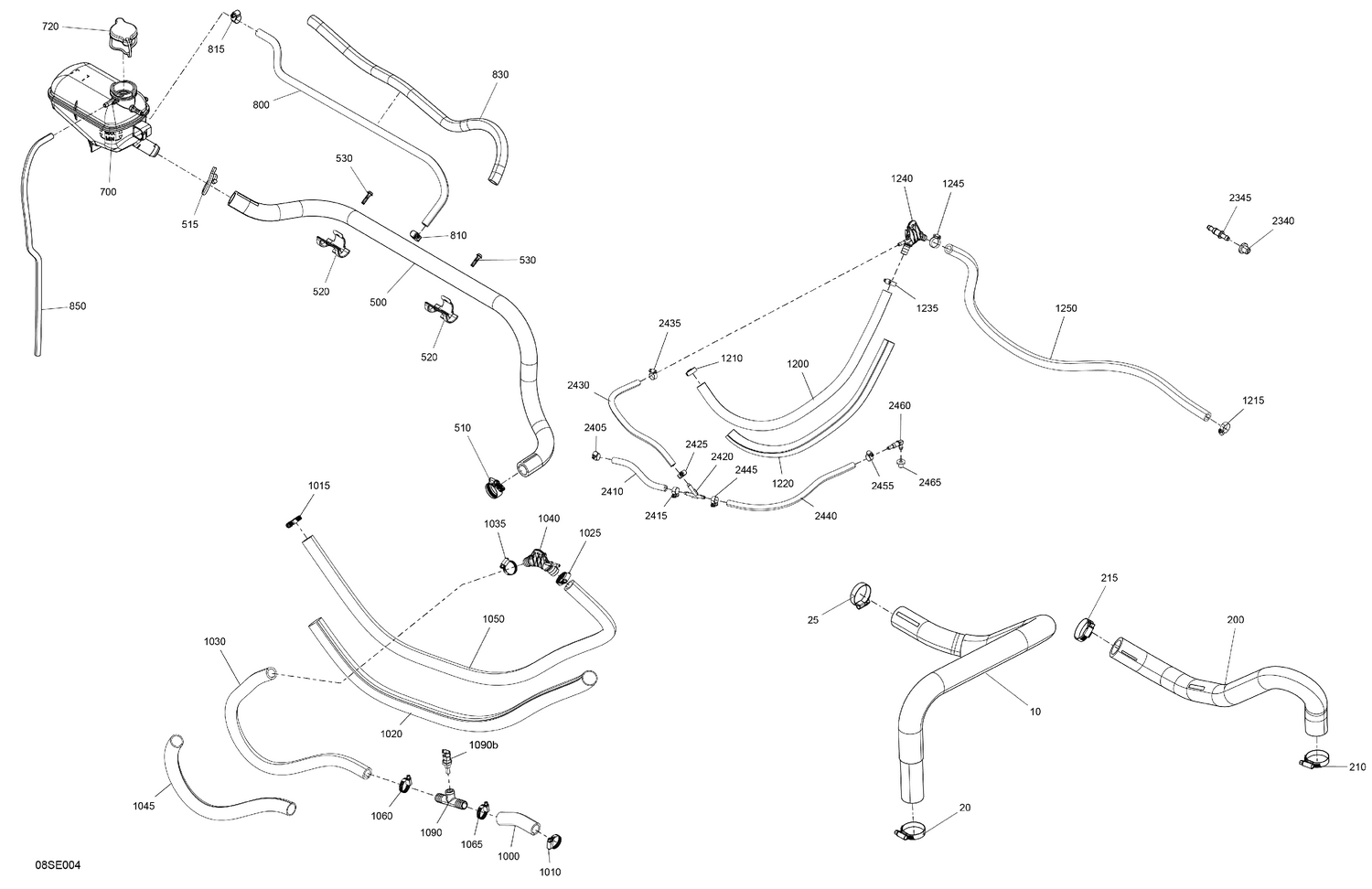

02- Engine - Cooling
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000516 | Hose |
| 20 | 293650245 | Norma Clamp |
| 25 | 293650245 | Norma Clamp |
| 200 | 276000517 | Formed Hose |
| 210 | 293650245 | Norma Clamp |
| 215 | 293650245 | Norma Clamp |
| 500 | 276000537 | Coolant Tank Hose |
| 510 | 293650019 | Tridon Gear Clamp |
| 515 | 293650115 | Spring Clamp |
| 520 | 270001126 | Hose Support |
| 530 | 241152040 | Hex. Flange PT Screw K50 X 20 |
| 700 | 276000419 | Coolant Tank |
| 720 | 276000100 | Pressure Cap |
| 800 | 276000425 | Hose 6,4 MM ID |
| 810 | 293650287 | Gear Clamp |
| 815 | 293650287 | Gear Clamp |
| 830 | 219704400 | Was 409901800 Tubing (13 mm) |
| 850 | 219704389 | Polyurethane Hose 4000MM Long |
| 1000 | 219704613 | Hose 19Mm X 4000 mm Long |
| 1010 | 293650284 | Gear Clamp |
| 1015 | 293650284 | Gear Clamp |
| 1020 | 219704402 | Tubing 25 MM 1000MM Long |
| 1025 | 293650284 | Gear Clamp |
| 1030 | 219704613 | Hose 19Mm X 4000 mm Long |
| 1035 | 293650284 | Gear Clamp |
| 1040 | 276000547 | Fitting |
| 1045 | 219704402 | Tubing 25 MM 1000MM Long |
| 1050 | 219704613 | Hose 19Mm X 4000 mm Long |
| 1060 | 293650284 | Gear Clamp |
| 1065 | 293650284 | Gear Clamp |
| 1090b | 278002895 | Temperature Sensor |
| 1200 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1210 | 293650285 | Clamp Gear |
| 1215 | 293650285 | Clamp Gear |
| 1220 | 219704423 | Was 515175319 Tubing 22 mm |
| 1235 | 293650285 | Clamp Gear |
| 1240 | 276000565 | Fitting |
| 1245 | 293650285 | Clamp Gear |
| 1250 | 219704394 | Was 276000001 Hose 12.5 mm |
| 2340 | 293720029 | Grommet |
| 2345 | 293710133 | Straight Fitting |
| 2405 | 293650287 | Gear Clamp |
| 2410 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2415 | 293650287 | Gear Clamp |
| 2420 | 293710059 | Y-Fitting |
| 2425 | 293650287 | Gear Clamp |
| 2430 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2435 | 293650287 | Gear Clamp |
| 2440 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2445 | 293650287 | Gear Clamp |
| 2455 | 293650287 | Gear Clamp |
| 2460 | 414580600 | Elbow Male Connector |
