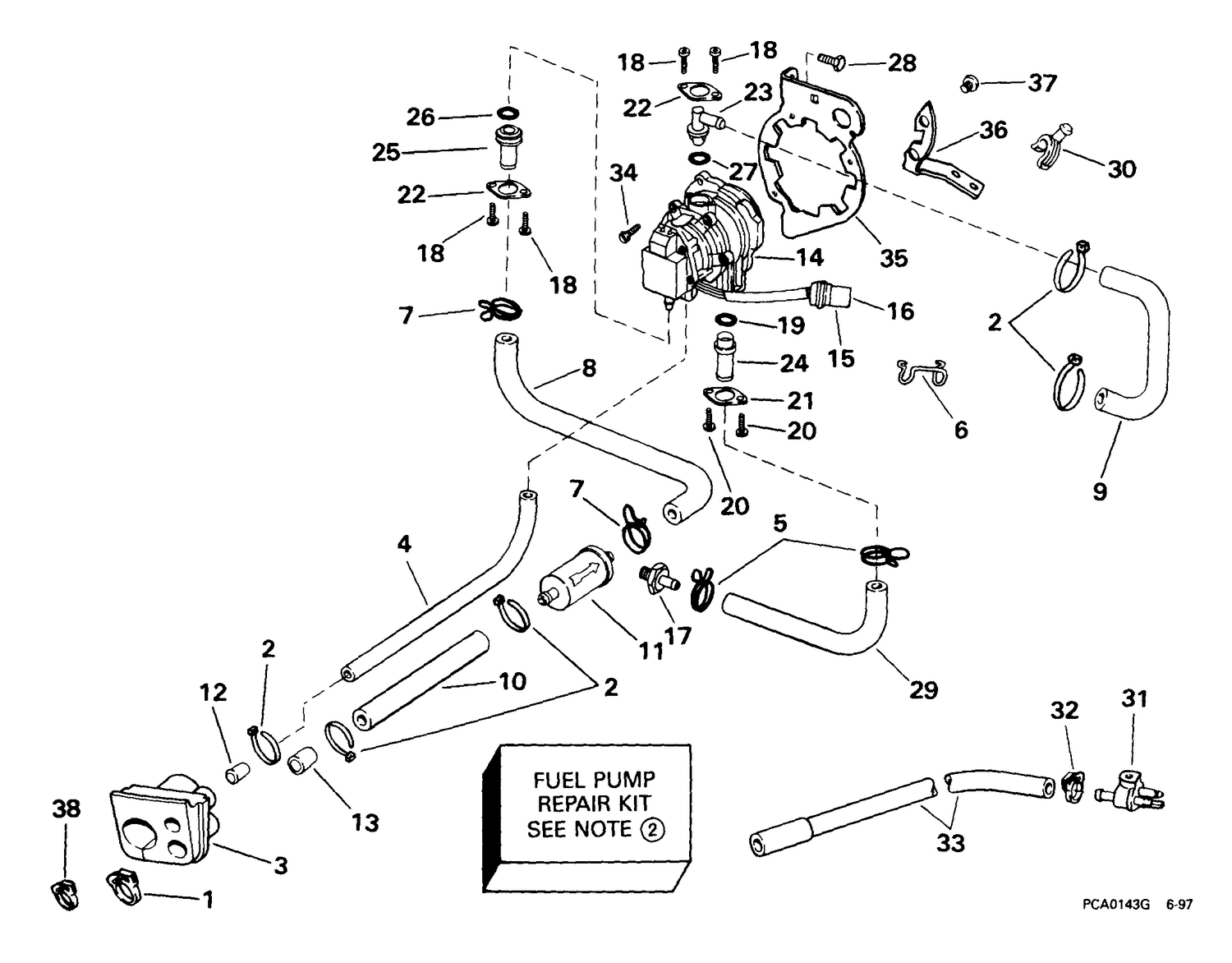

| Ref | Part Number | Description |
|---|
| 1 |
0329653 |
CLAMP |
| 2 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 3 |
0332246 |
GROMMET |
| 4 |
HOSE, |
Oil tank to pump |
| 5 |
0339278 |
COLLIER DE SERRAGE |
| 6 |
0512743 |
DISPOSITIF DE RETENUE |
| 7 |
0339279 |
COLLIER DE SERRAGE, conduite de carburant |
| 9 |
0338902 |
HOSE, Port tee to stbd tee |
| 10 |
HOSE, |
Tank to fuel filter |
| 11 |
0360941 |
FUEL FILTER, 65 micron This part replaces 0398319. |
| 13 |
0331649 |
CAP, Connector - fuel |
| 14 |
5007420 |
Kit Ay This part replaces 0438400. |
| 21 |
0340201 |
RETAINER |
| 27 |
0335230 |
O-RING |
| 28 |
0122147 |
VIS, connecteur |
| 29 |
HOSE, |
Pulse, 6 1/4 in. (159mm) |
| 30 |
0329661 |
SUPPORT/BOUCHON |
| 31 |
0393334 |
CONNECTEUR, carburant - mâle |
| 34 |
0344278 |
SCREW, Fuel pump to mount |
| 37 |
0331036 |
VIS, attache de palier |
| 0398339 |
0398339 |
FUEL CONNECTOR & HOSE |
| 0585178 |
0585178 |
BRACKET ASSY., Fuel pump |
