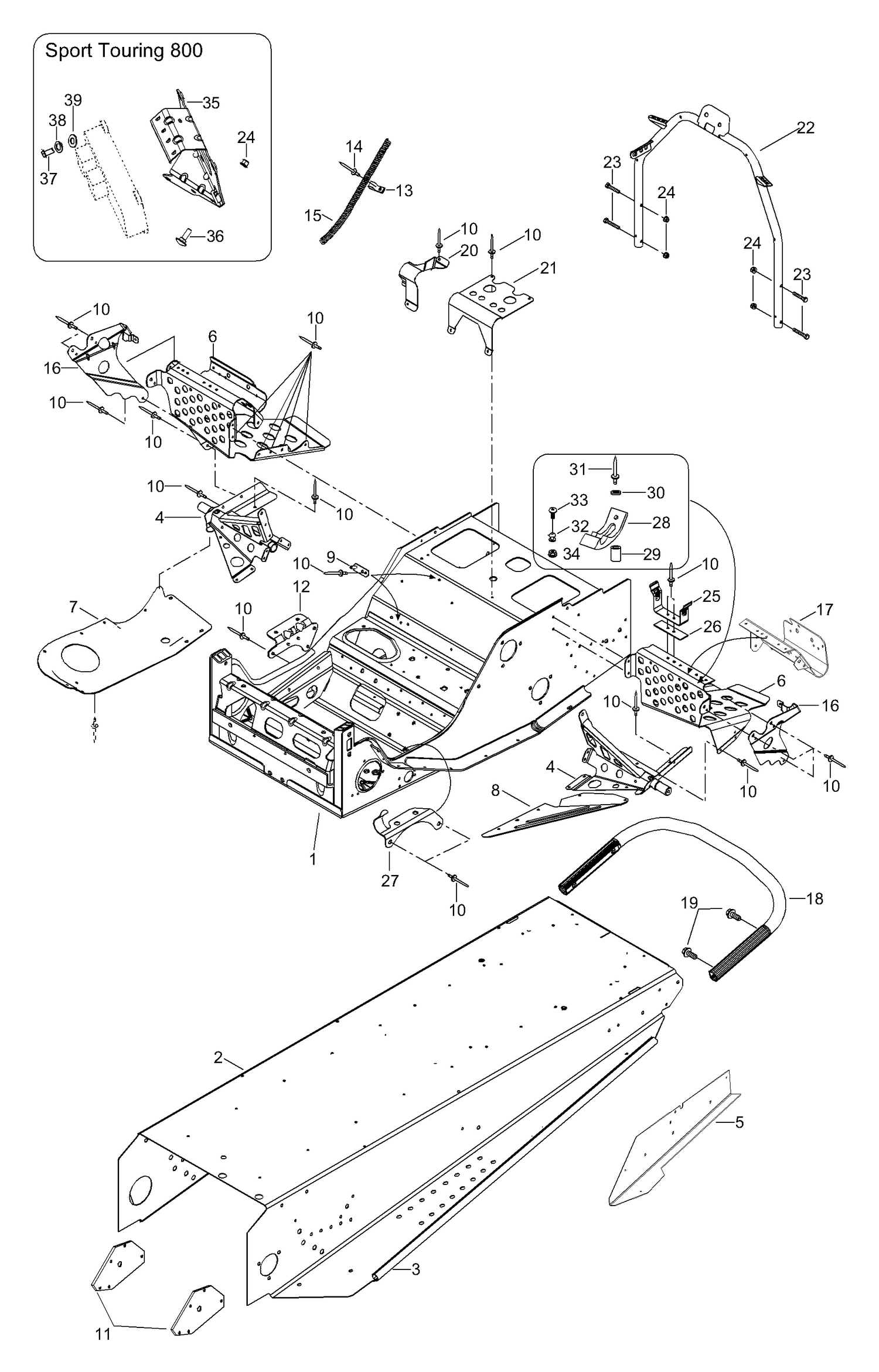

| Ref | Part Number | Description |
|---|
| 3 |
5347257 |
Support |
| 4 |
5246775 |
R.H. support |
| 4 |
5246776 |
L.H. support |
| 5 |
5348353 |
R.H. bracket |
| 5 |
5348354 |
L.H. bracket |
| 6 |
5146822 |
R.H. front footrest |
| 6 |
5146823 |
L.H. front footrest |
| 7 |
518322636 |
RH BOTTOM PAN PLATE - Call your local BRP dealership |
| 8 |
605349267 |
L.H. reinf. plate |
| 9 |
518319728 |
Double bracket |
| 10 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 11 |
5348321 |
Support |
| 12 |
518322635 |
Muffler support |
| 13 |
27092 |
Clip |
| 14 |
36087 |
Rivet |
| 15 |
518321569 |
Rope guide |
| 16 |
5146912 |
R.H. footrest reinforcem. |
| 16 |
5146913 |
L.H. footrest reinforcem. |
| 17 |
5146917 |
R.H. toe hold |
| 17 |
5146918 |
L.H. toe hold |
| 18 |
517243800 |
Rear bumper, black |
| 19 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 20 |
518322699 |
Hose support |
| 21 |
518310400 |
AIR INTAKE SUPPORT - Call your local BRP dealership |
| 22 |
5247856 |
Handle steering supp. |
| 23 |
40002 |
Screw M6x40 |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 25 |
518202100 |
Pulley Guard bracket |
| 26 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 27 |
515175254 |
Cable support |
| 28 |
531955 |
Latch |
| 29 |
543417 |
Sleeve |
| 30 |
543392 |
Washer |
| 31 |
36072 |
Rivet |
| 32 |
605449087 |
Counter roll |
| 33 |
40168 |
Screw M4x25 |
| 34 |
33008 |
Nut M4 |
| 35 |
Not |
Available As Spare Part - Bracket - DOES NOT APPLY TO THIS MODEL |
| 36 |
Not |
Available As Spare Part - Screw M6x12 - DOES NOT APPLY TO THIS MODEL |
| 37 |
Not |
Available As Spare Part - Screw M6x20 - DOES NOT APPLY TO THIS MODEL |
| 38 |
Not |
Available As Spare Part - Spring washer - DOES NOT APPLY TO THIS MODEL |
