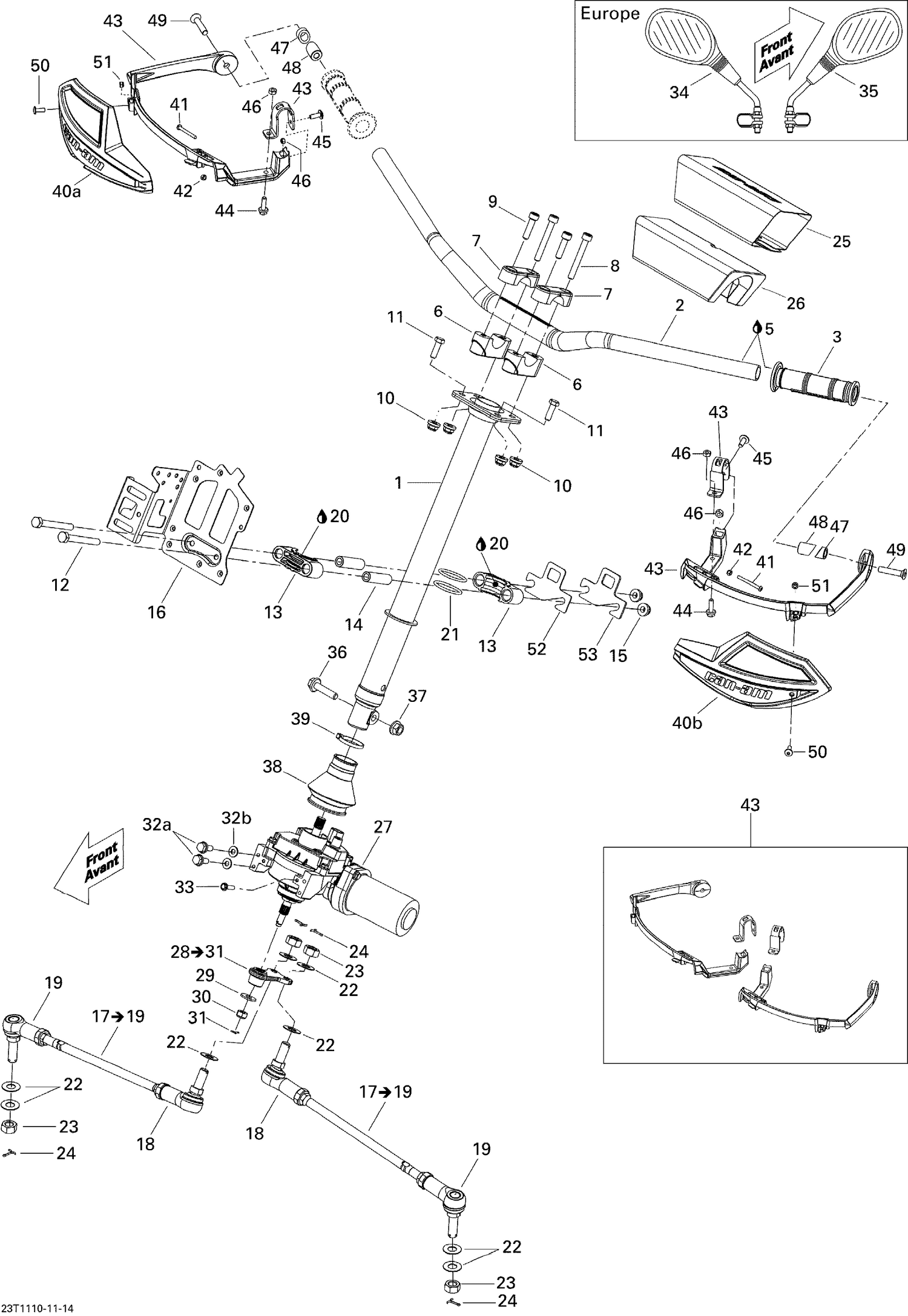

07- Steering
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 715900573 | Tube-Main This part replaces 709400566. |
| 2 | 709400513 | Aluminum Handle Bar |
| 3 | 709400493 | Handle Grip |
| 5 | 293800100 | Loctite 406, 7 Oz |
| 6 | 709402750 | Lower Mounting Clamp This part replaces 709400497. |
| 7 | 709400496 | Support |
| 8 | 205086060 | Socket Head Screw M8 X 60 |
| 9 | 205083060 | Socket Screw M8 X 30 |
| 10 | 233281416 | Hex. Elastic Flange Nut M8 |
| 11 | 207183060 | Hex. Screw M8 X 30 |
| 12 | 207087044 | Hex. Screw M8 X 70 |
| 13 | 709400471 | Half Bushing |
| 14 | 709400072 | BUSHING - Call your local BRP dealership |
| 15 | 233281414 | Hex. Flange Elastic Nut M8 |
| 16 | 709400751 | MODULE SUPPORT - Call your local BRP dealership |
| 18 | 709402303 | LH Ball Joint This part replaces 709400486. |
| 19 | 709400487 | Ball Joint, RH Threads |
| 20 | 293550010 | Synthetic Grease, 400 G |
| 21 | 293300068 | O-Ring |
| 22 | 706200281 | Hardened Washer |
| 23 | 250100099 | Nut M12 |
| 24 | 211400013 | Cotter Pin |
| 25 | 709402414 | Couvercle B-190 This part replaces 709400519. |
| 26 | 709400422 | Foam |
| 27 | 709401001 | POWER STEERING ASSIST - Call your local BRP dealership |
| 29 | 706200281 | Hardened Washer This part replaces 250200086. |
| 30 | 250000047 | Hex. Flange Elastic Nut M12 |
| 31 | 211400013 | Cotter Pin |
| 32a | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 32b | 234281474 | Conical Spring Washer M8 |
| 33 | 250000992 | Screw-Forming Hex.Hd.Fl.Bzn M5 X 20 This part replaces 210252040. |
| 36 | 207683544 | Hex. Flange Screw M8 X 35 |
| 37 | 233281414 | Hex. Flange Elastic Nut M8 |
| 38 | 709400674 | Bellows |
| 39 | 414115200 | Tie-Rap 180 mm |
| 40a | 709400530 | RH AIR DEFLECTOR - Call your local BRP dealership |
| 40b | 709400531 | LH AIR DEFLECTOR - Call your local BRP dealership |
| 41 | 205444086 | Socket Head Screw M4 X 40 |
| 42 | 232541414 | Elastic Stop Nut M4 |
| 43 | 715001378 | Air Deflector Support Kit This part replaces 715000545. |
| 44 | 207662044 | Hex. Flange Screw M6 X 20 |
| 45 | 250000223 | Torx Screw M6 X 16 |
| 46 | 232561600 | Hex. Elastic Stop Nut M6 |
| 47 | 709400161 | Small Bracket |
| 48 | 709400162 | Large Bracket |
| 49 | 205384034 | Socket Head Screw |
| 50 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 51 | 232551600 | Hex. Elastic Nut M5 |
| 52 | 709400734 | SHIM 2 MM - Call your local BRP dealership |
